1. Description
This component converts the PSC Non Box Shape of Civil NX into data for the Shape of the Section component.
The PSC Non Box Shape in the Section Propeties function can be found in the Civil NX main menu,select [Properties] tab > [Section Properties] group > [Section Properties] menu > Section > PSC
2. Grasshopper Path
[Midas] > [Properties] > [ PSC Non Box Shape ]
Type 1 : PSC MID

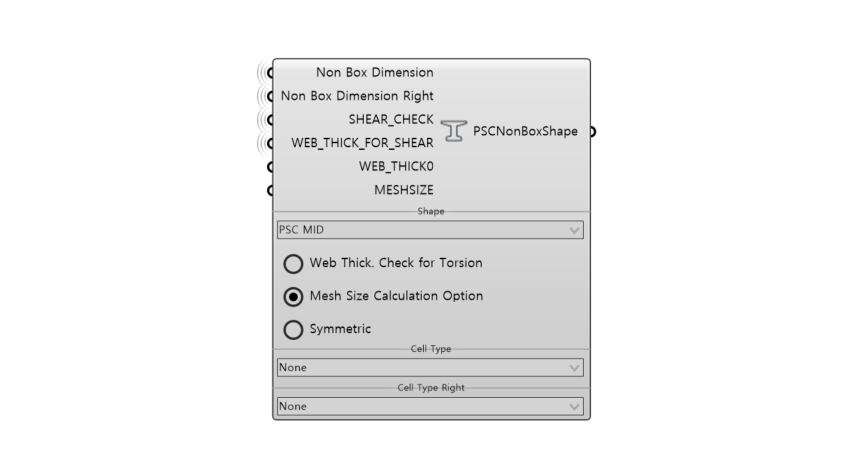

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | Non Box Dimension | PSC Non Box Dimension (Symmetric option : false → Left Side Dimension) |
Object | - | PSC Dimesion |
| 2 | Non Box Dimension Right *** |
Right Side Dimension | Object | - | PSC Dimesion |
| 3 | SHEAR_CHECK | Auto Shear Check Option | Object | - | Shear Check of PSC Shape |
| 4 | WEB_THICK_FOR_SHEAR | Web Thick for Shear Option | Object | - | Web Thick. for Shear of PSC Shape |
| 5 | WEB_THICK0 * | Web Thick. Value for Torsion | Real | 0 | - |
| 6 | MESHSIZE ** | Shape | Real | 0 | - |
| 7 | SHAPE | Shape | Select | - | - |
| 8 | Web Thick. Check for Torsion | Web Thick. Check for Torsion Option | Select | false | - |
| 9 | Mesh Size Calculation Option | Mesh Size Calculation Option | Select | false | - |
| 10 | Symmetric | Symmetric Option | Select | true | - |
| 11 | Cell Type | Cell Type (Symmetric option : false → Left Side Dimension) |
Select | None | - |
| 12 | Cell Type Right *** | Cell Type of Right Side | Select | None | - |
Activation Condition
* Only for if Web Thick. Check for Torsion options is false
** Only for if Mesh Size Calculation Option is true
*** Only for if Symmetric Option is false
Type 2 : PSC I , PSC TEE

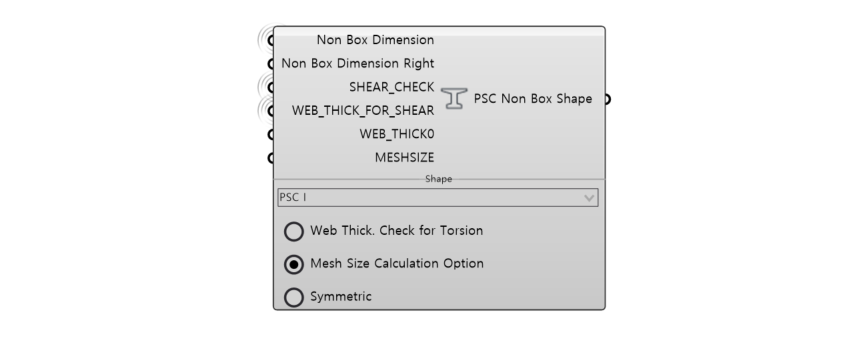

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | Non Box Dimension | PSC Non Box Dimension (Symmetric option : false → Left Side Dimension) |
Object | - | PSC Dimesion |
| 2 | Non Box Dimension Right *** |
Right Side Dimension | Object | - | PSC Dimesion |
| 3 | SHEAR_CHECK | Auto Shear Check Option | Object | - | Shear Check of PSC Shape |
| 4 | WEB_THICK_FOR_SHEAR | Web Thick for Shear Option | Object | - | Web Thick. for Shear of PSC Shape |
| 5 | WEB_THICK0 * | Web Thick. Value for Torsion | Real | 0 | - |
| 6 | MESHSIZE ** | Shape | Real | 0 | - |
| 7 | SHAPE | Shape | Select | - | - |
| 8 | Web Thick. Check for Torsion | Web Thick. Check for Torsion Option | Select | false | - |
| 9 | Mesh Size Calculation Option | Mesh Size Calculation Option | Select | false | - |
| 10 | Symmetric | Symmetric Option | Select | true | - |
Activation Condition
* Only for if Web Thick. Check for Torsion options is false
** Only for if Mesh Size Calculation Option is true
*** Only for if Symmetric Option is false
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | SECT | Create Non Box Shape Data | Object | - | Section |
| Tapered Shape | |||||
| Composite Shape |
5. Reference API Manual Link
