1. Description

This component generates PSC Dimension Data in the Civil NX.

PSC Dimension can activate to define additional variant dimensions of the section based on the state of the Joint.

The PSC Dimension function can be found in the Civil NX main menu,select [Properties] tab > [Section Properties] group > [Section Properties] menu > Section > [PSC] tab

2. Grasshopper Path

[Midas] > [Properties] > [ PSC Dimension ]

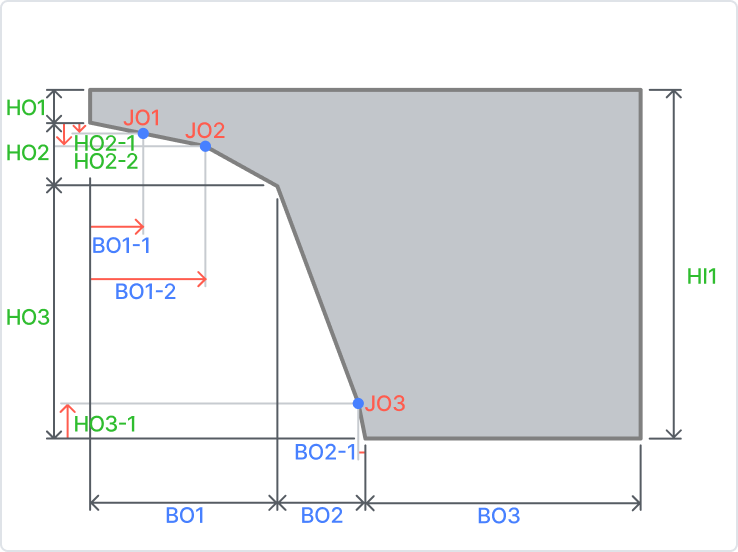

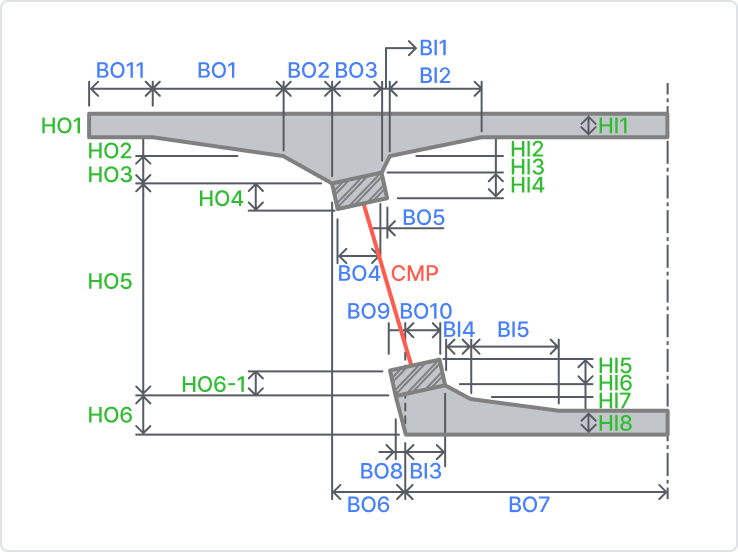

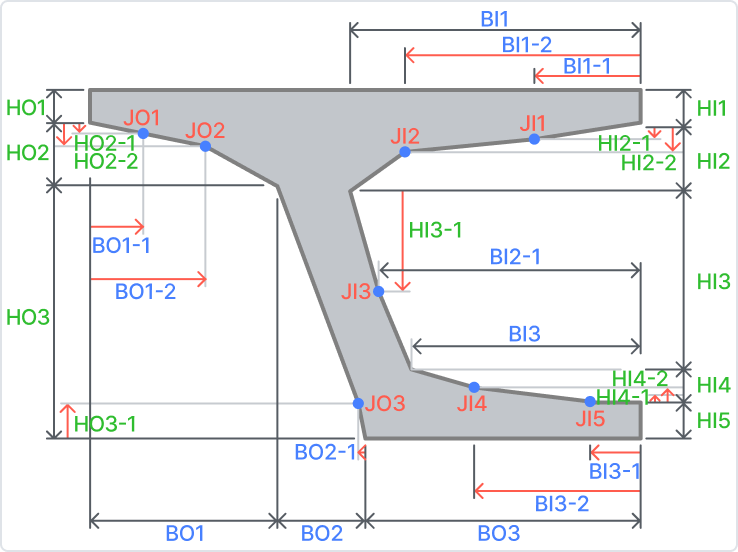

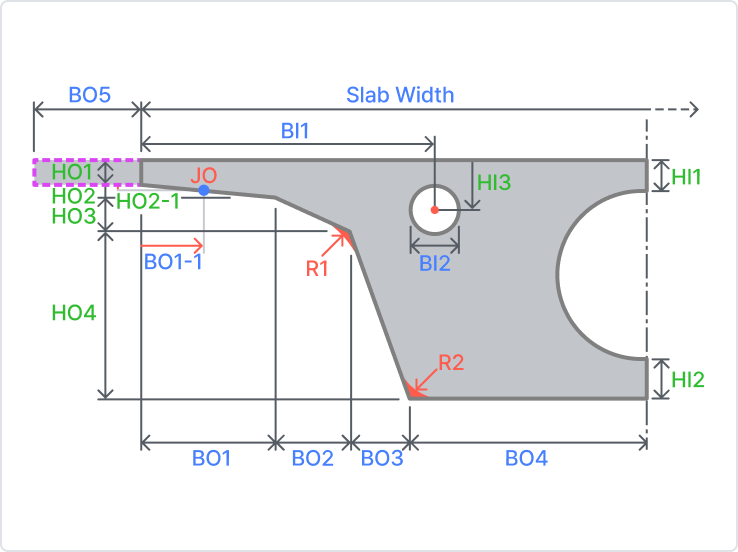

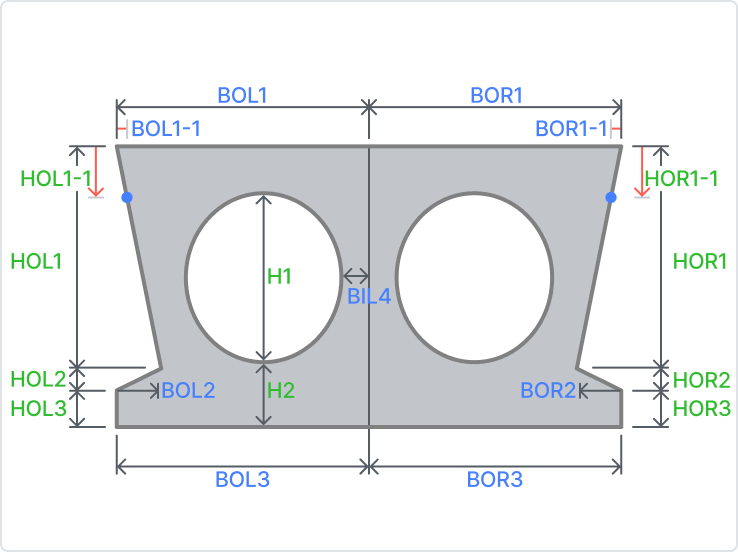

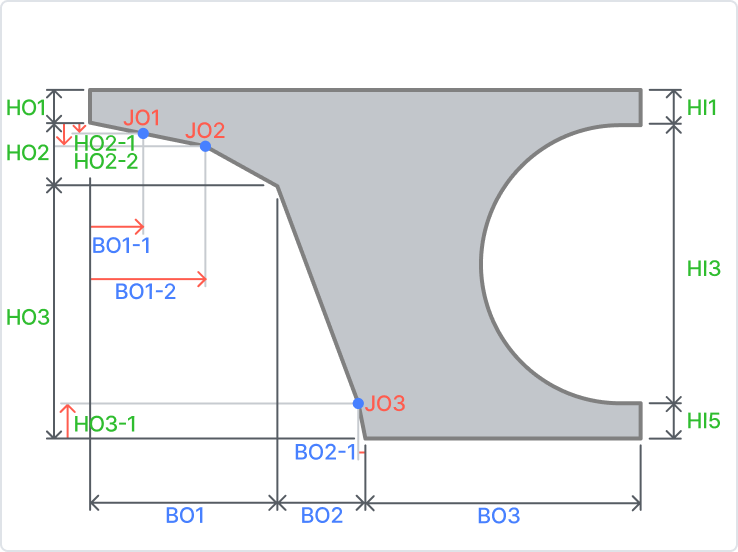

Type 1 : Outer Box Dimension

3. Component Image

4. Input/Output Value

Input Data

Index	Name	Description	Type	Default	Previous Component
1	HO1~HO6	Outer-Height Dimension	Real	0	-
1-1	HO1-1 ᴶ⁽ᴸᴿ⁾¹⁾	Additional Outer-Height Dimension	Real	0	-
1-2	HO2-1 ᴶᴼ¹⁾ ᴶᴼ⁾			0	-
1-3	HO2-2 ᴶᴼ²⁾			0	-
1-4	HO3-1 ᴶᴼ³⁾			0	-
2	BO1~BO11	Outer-Breadth Dimension	Real	0	-
2-1	BO1-1 ᴶᴼ¹⁾ ᴶ⁽ᴸᴿ⁾¹⁾ ᴶᴼ⁾	Additional Outer-Breadth Dimension	Real	0	-
2-2	BO1-2 ᴶᴼ²⁾			0	-
2-3	BO2-1 ᴶᴼ¹⁾ ᴶᴼ³⁾			0	-
2-4	BO2-2 ᴶᴼ²⁾			0	-

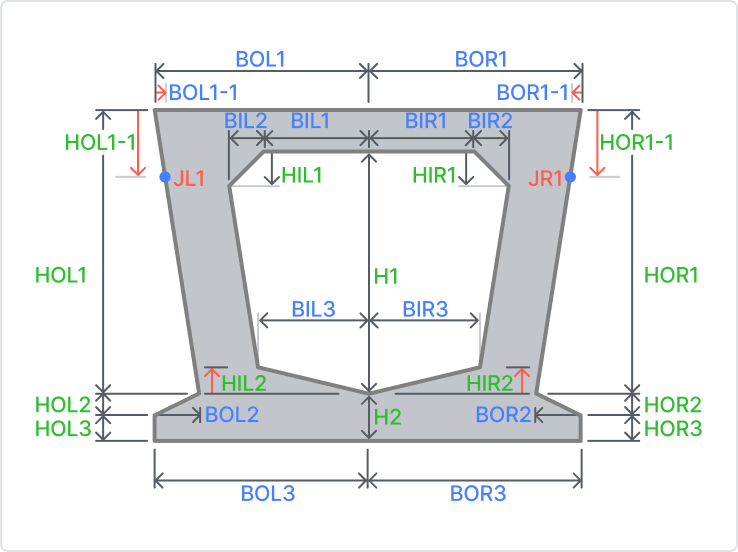

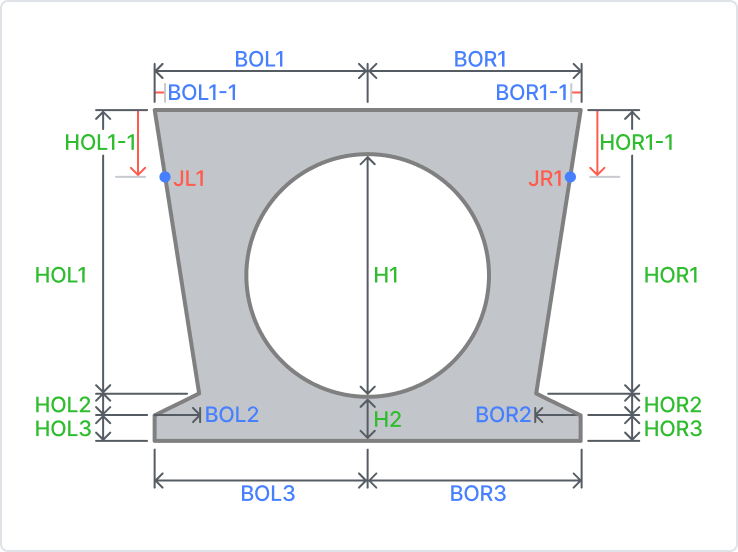

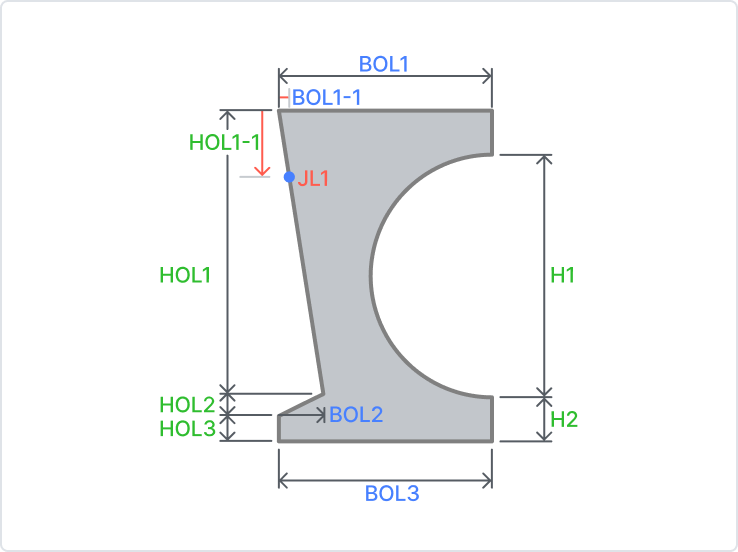

3	H1 ᴴ⁾	Inner Box Height of PLAT Type	Real	0	-
4	H2 ᴴ⁾	Bottom Section Height of PLAT Type	Real	0	-
5	JO1~JO3	The Joint responsible for Additional Outer Dimensions	Select	false	-
6	H	The Joint responsible for Inner Dimensions of PLAT Type	Select	false	-
7	J(LR)1	The Joint responsible for Additional Outer Dimensions of PLAT Type	Select	false	-
8	JO	The Joint responsible for Additional Outer Dimensions of nCELL Type	Select	false	-

Activation Condition
ᴶᴼ¹⁾~ᴶᴼ³⁾ Only for if JO1~JO3 option is true
ᴴ⁾ Only for if H option is true
ᴶ⁽ᴸᴿ⁾¹⁾ Only for if J(LR)1 option is true
ᴶᴼ⁾ Only for if JO option is true

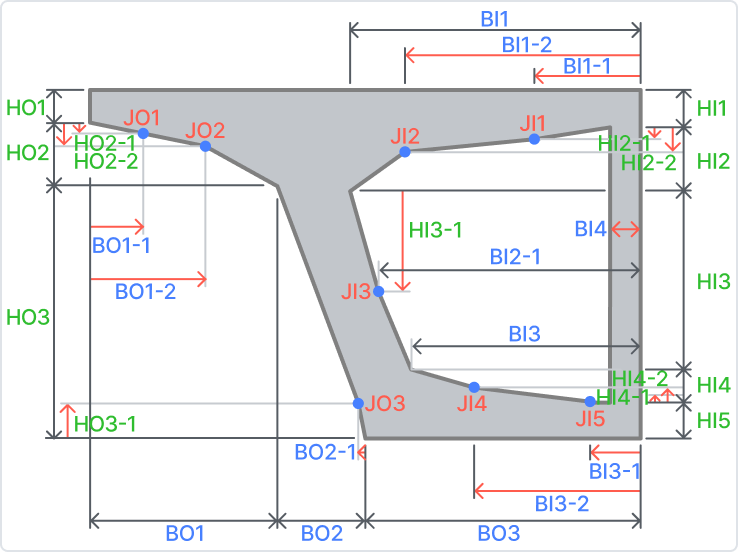

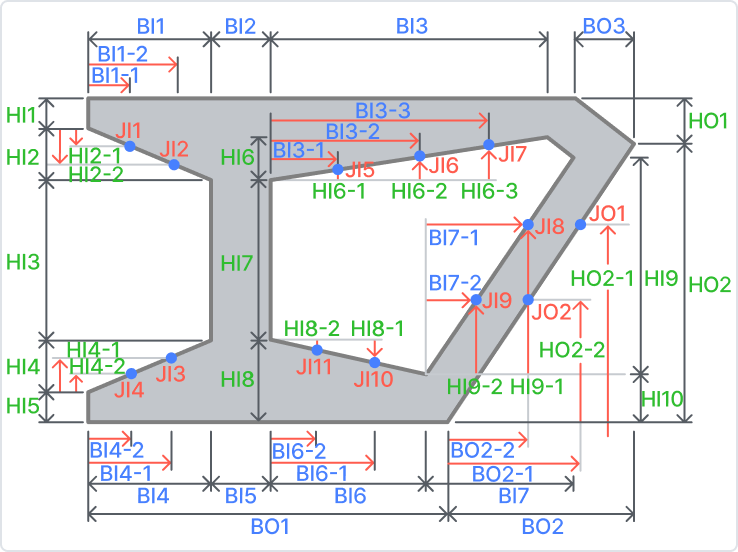

Type 2 : Inner Box Dimension

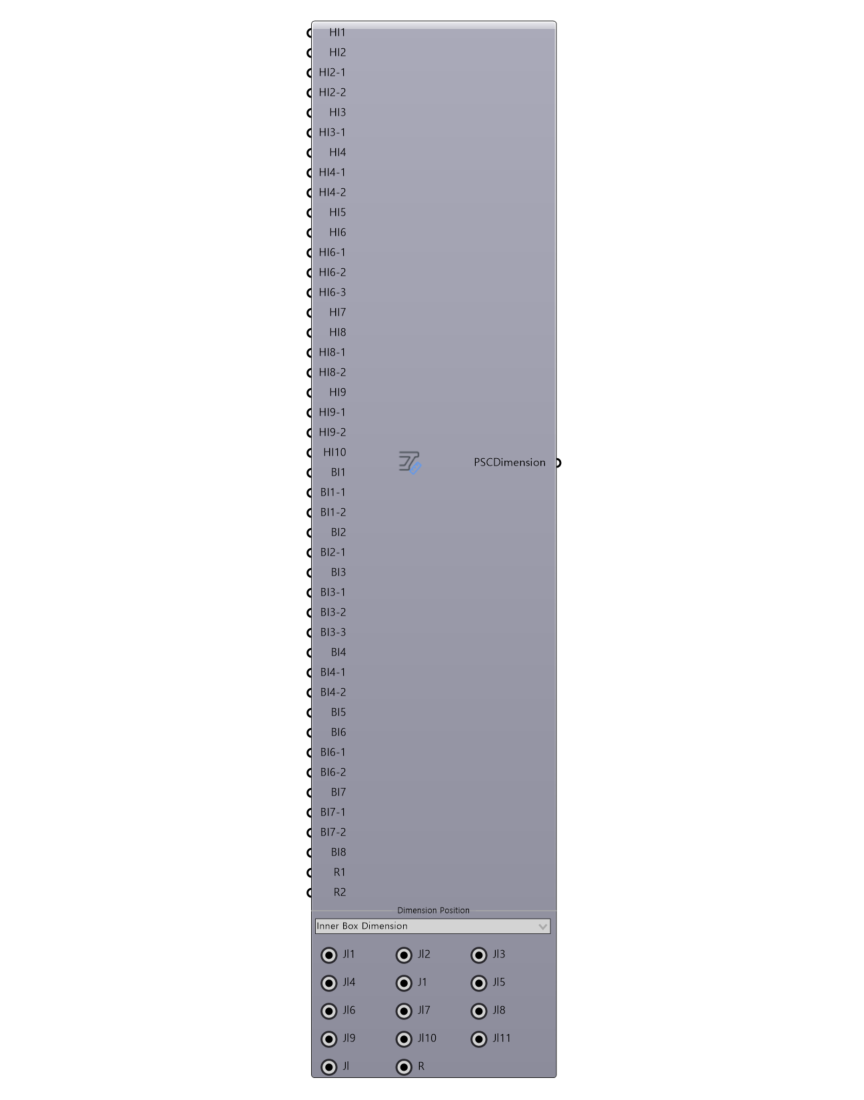

3. Component Image

4. Input/Output Value

Input Data

Index	Name	Description	Type	Default	Previous Component
1	HI1~HI10	Inner-Height Dimension	Real	0	-
1-1	HI2-1 ᴶᴵ¹⁾ ᴶᴵ⁾	Additional Inner-Height Dimension	Real	0	-
1-2	HI2-2 ᴶᴵ²⁾			0	-
1-3	HI3-1 ᴶᴵ³⁾			0	-
1-4	HI4-1 ᴶᴵ³⁾ ᴶᴵ⁵⁾			0	-
1-5	HI4-2 ᴶᴵ⁴⁾			0	-
1-6	HI6-1 ᴶᴵ⁵⁾			0	-
1-7	HI6-2 ᴶᴵ⁶⁾			0	-
1-8	HI6-3 ᴶᴵ⁷⁾			0	-
1-9	HI8-1 ᴶᴵ¹⁰⁾			0	-
1-10	HI8-2 ᴶᴵ¹¹⁾			0	-
1-11	HI9-1 ᴶᴵ⁸⁾			0	-
1-12	HI9-2 ᴶᴵ⁹⁾			0	-
2	BI1~BO8	Inner-Breadth Dimension	Real	0	-
2-1	BI1-1 ᴶᴵ¹⁾	Additional Inner-Breadth Dimension	Real	0	-
2-2	BI1-2 ᴶᴵ²⁾			0	-
2-3	BI2-1 ᴶᴵ³⁾ ᴶᴵ⁾			0	-
2-4	BI3-1 ᴶᴵ⁵⁾			0	-
2-5	BI3-2 ᴶᴵ⁴⁾ ᴶᴵ⁶⁾			0	-
2-6	BI3-3 ᴶᴵ⁷⁾			0	-
2-7	BI4-1 ᴶᴵ³⁾			0	-
2-8	BI4-2 ᴶᴵ⁴⁾			0	-
2-9	BI6-1 ᴶᴵ¹⁰⁾			0	-
2-10	BI6-2 ᴶᴵ¹¹⁾			0	-
2-11	BI7-1 ᴶᴵ⁸⁾			0	-
2-12	BI7-2 ᴶᴵ⁹⁾			0	-

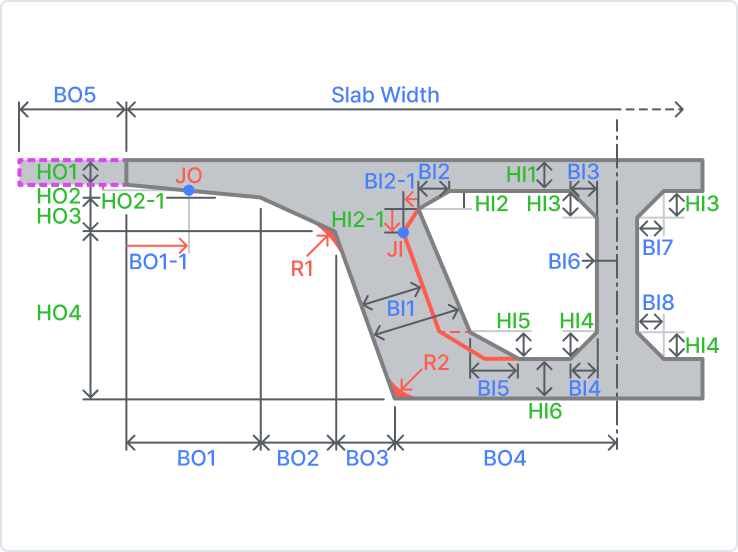

3	R1 ᴿ⁾	Outer Radius Dimensions of nCELL Type	Real	0	-
4	R2 ᴿ⁾	Inner Radius Dimensions of nCELL Type	Real	0	-
5	JI1~JI11	The Joint responsible for Additional Inner Dimensions	Select	false	-
6	R	The Joint responsible for Outer Radius Dimensions of nCELL Type	Select	false	-
7	JI	The Joint responsible for Additional Inner Dimensions of nCELL Type	Select	false	-

Activation Condition
ᴶᴵ¹⁾~ᴶᴵ¹¹⁾ Only for if JI1~J11 option is true
ᴿ⁾ Only for if R option is true
ᴶᴵ⁾ Only for if JI option is true

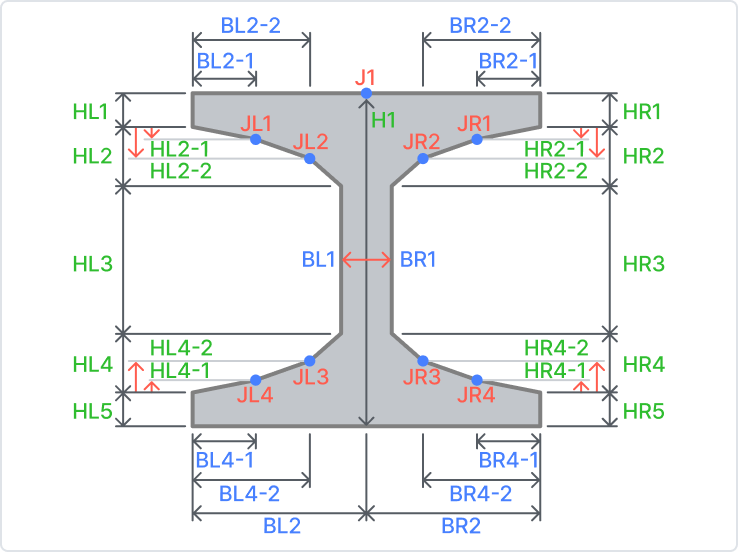

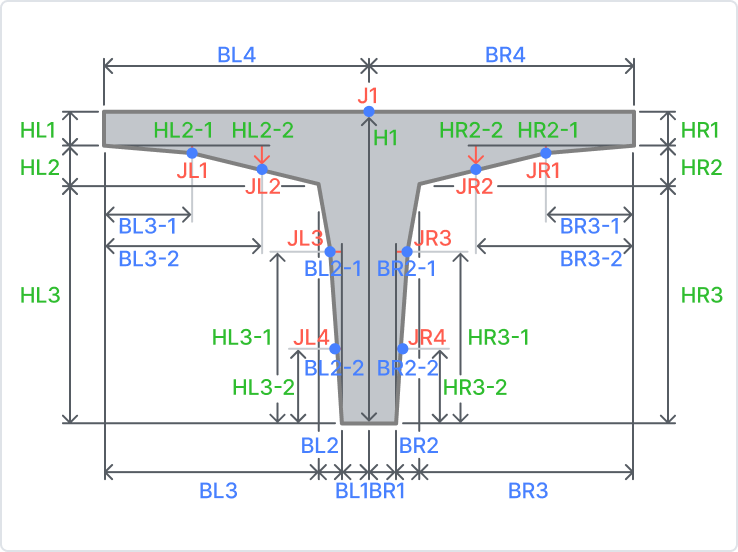

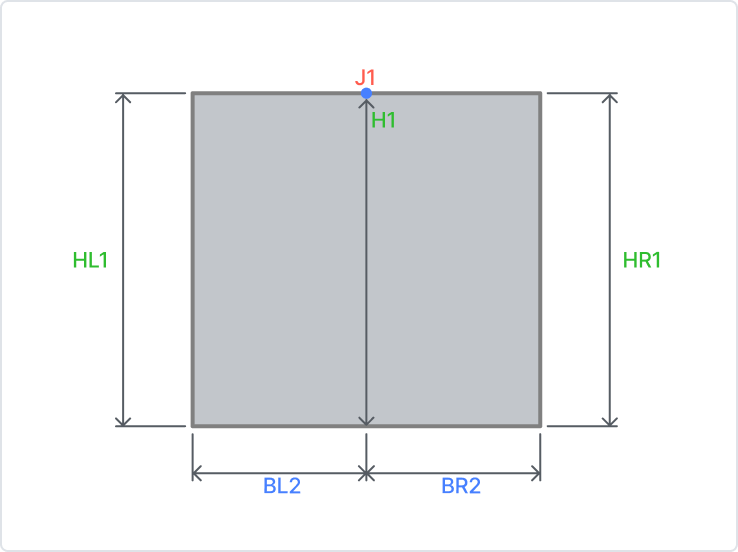

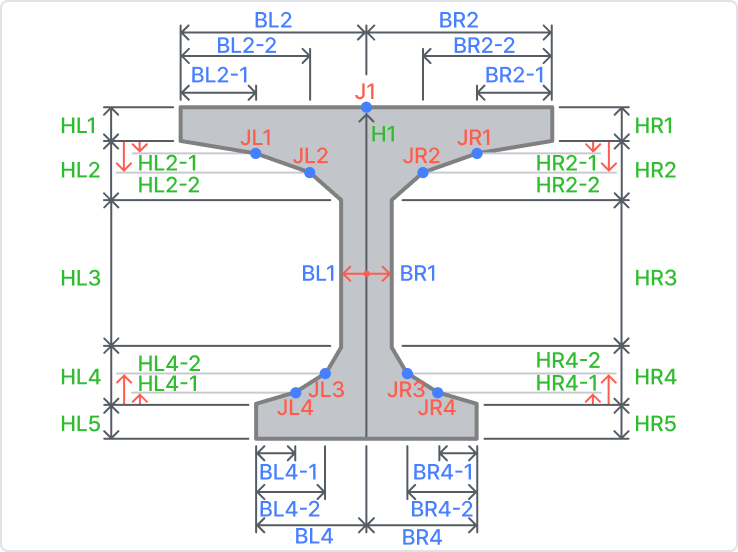

Type 3 : Non Box Dimension

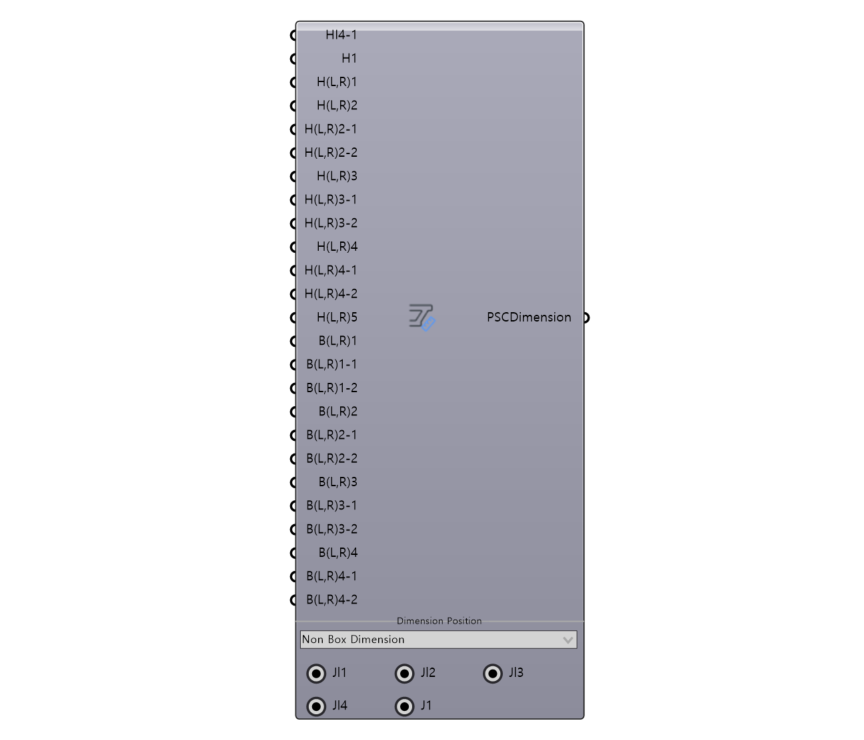

3. Component Image

4. Input/Output Value

Input Data

Index	Name	Description	Type	Default	Previous Component
1	H(L,R)1~H(L,R)5	Height Dimension	Real	0	-
1-1	H(L,R)2-1 ᴶ⁽ᴸᴿ⁾¹⁾	Additional Height Dimension	Real	0	-
1-2	H(L,R)2-2 ᴶ⁽ᴸᴿ⁾²⁾			0	-
1-3	H(L,R)3-1 ᴶ⁽ᴸᴿ⁾³⁾			0	-
1-4	H(L,R)3-2 ᴶ⁽ᴸᴿ⁾⁴⁾			0	-
1-5	H(L,R)4-2 ᴶ⁽ᴸᴿ⁾³⁾			0	-
2	B(L,R)1~B(L,R)4	Breadth Dimension	Real	0	-
2-1	B(L,R)1-1 ᴶ⁽ᴸᴿ⁾¹⁾	Additional Breadth Dimension	Real	0	-
2-2	B(L,R)1-2 ᴶ⁽ᴸᴿ⁾²⁾			0	-
2-3	B(L,R)2-1 ᴶ⁽ᴸᴿ⁾³⁾			0	-
2-4	B(L,R)2-2 ᴶ⁽ᴸᴿ⁾⁴⁾			0	-
2-5	B(L,R)3-1 ᴶ⁽ᴸᴿ⁾¹⁾			0	-
2-6	B(L,R)3-2 ᴶ⁽ᴸᴿ⁾²⁾			0	-
2-7	B(L,R)4-1 ᴶ⁽ᴸᴿ⁾⁴⁾			0	-
2-8	B(L,R)4-2 ᴶ⁽ᴸᴿ⁾³⁾			0	-

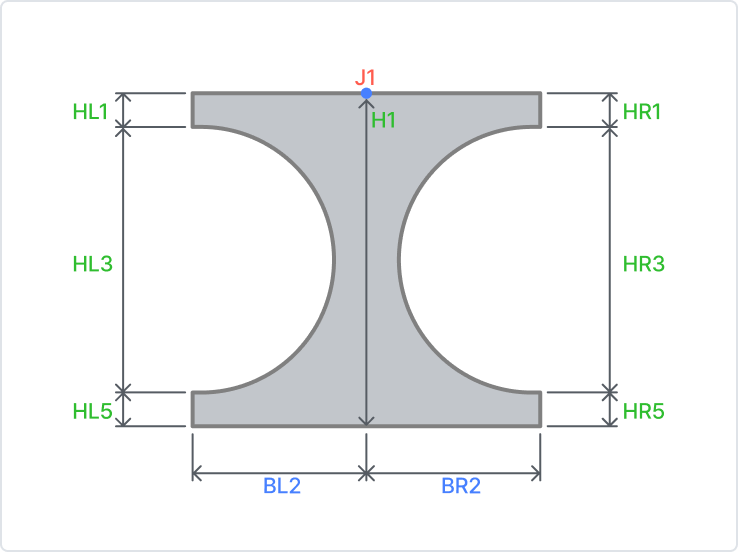

3	H1 ᴶ¹⁾	Height Dimension of Section Division Position	Real	0	-
4	JO1~JO3	The Joint responsible for Additional Outer Dimensions	Select	false	-
5	J1	The Joint responsible for Section Division Position	Select	false	-
