Question
How to intersect two or multiple edges in CIM?
Answer
Follow the steps below to intersect edges in CIM:

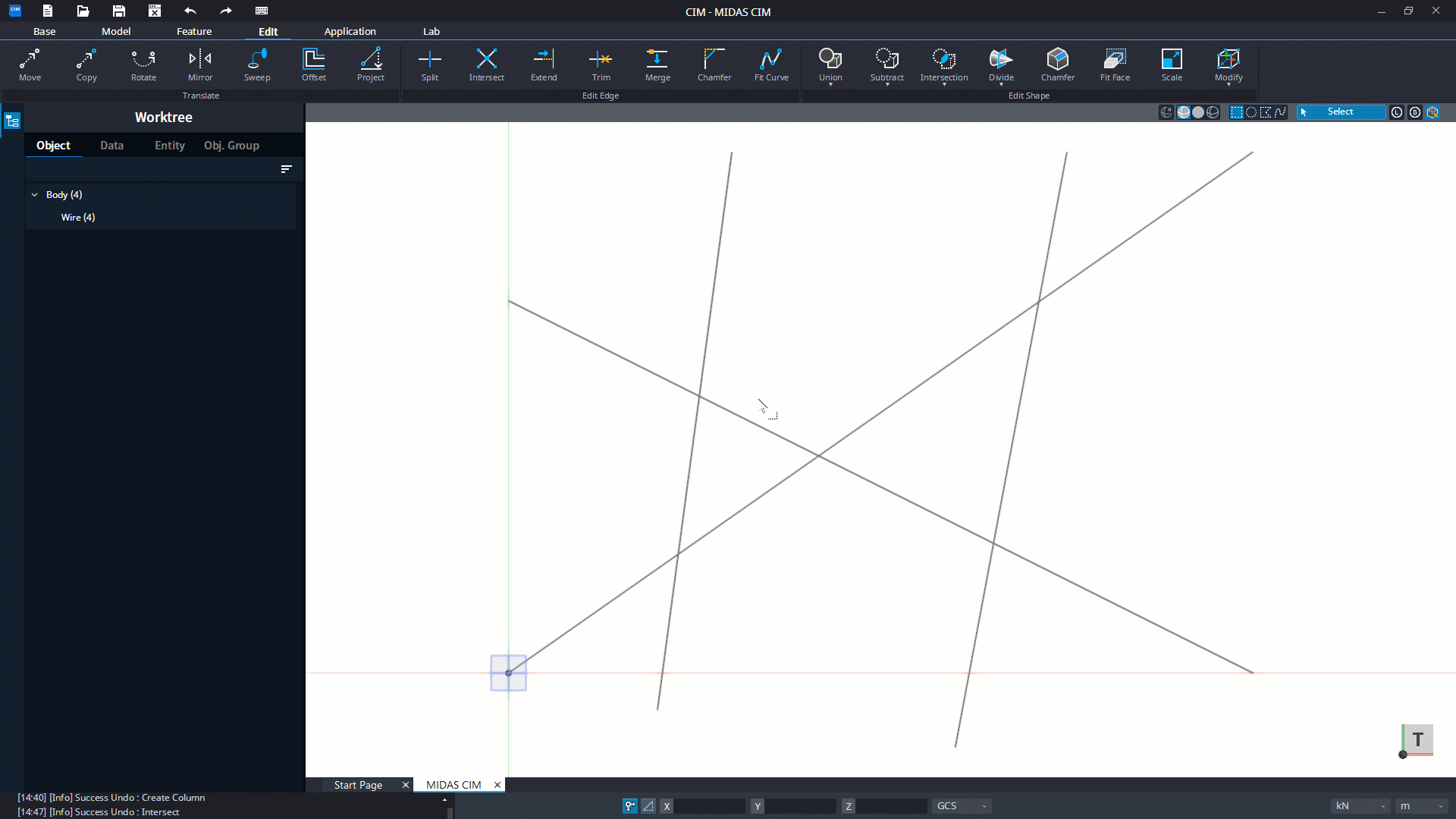

[Note: For demonstration purposes, we have modelled 4 Edges in the X-Y plane (Top plane) of CIM.]
Step 1: In any mode of CIM, go to the Edit ribbon
Step 2: Click on the Intersect edge option
A menu panel shall be displayed on the left of the modelling window:
Step 3: Using the cursor-cross selection, select all the edges you want to intersect with each other
Step 4: Click on to Apply the changes
This is how easily we can intersect two or multiple edges with each other in CIM.
