Question
How to measure angles between two edges?
Answer
To measure the angles between two edges, follow the steps as mentioned below.
Step 1: Click on the 'Model' ribbon.
Step 2: Select the 'Measure' option.
Step 3: Open the drop-down menu option under the Measure section.
Step 4: Select the 'Angle' option from the list.
Step 5: Under Method section, choose 'Line–Line' from the drop-down menu.
Step 6: In the Pick Edge section, Edge 1 will be highlighted. Use the cursor to select the first edge.
Step 7: After selecting Edge 1, Edge 2 will be highlighted. Use the cursor to select the second edge.

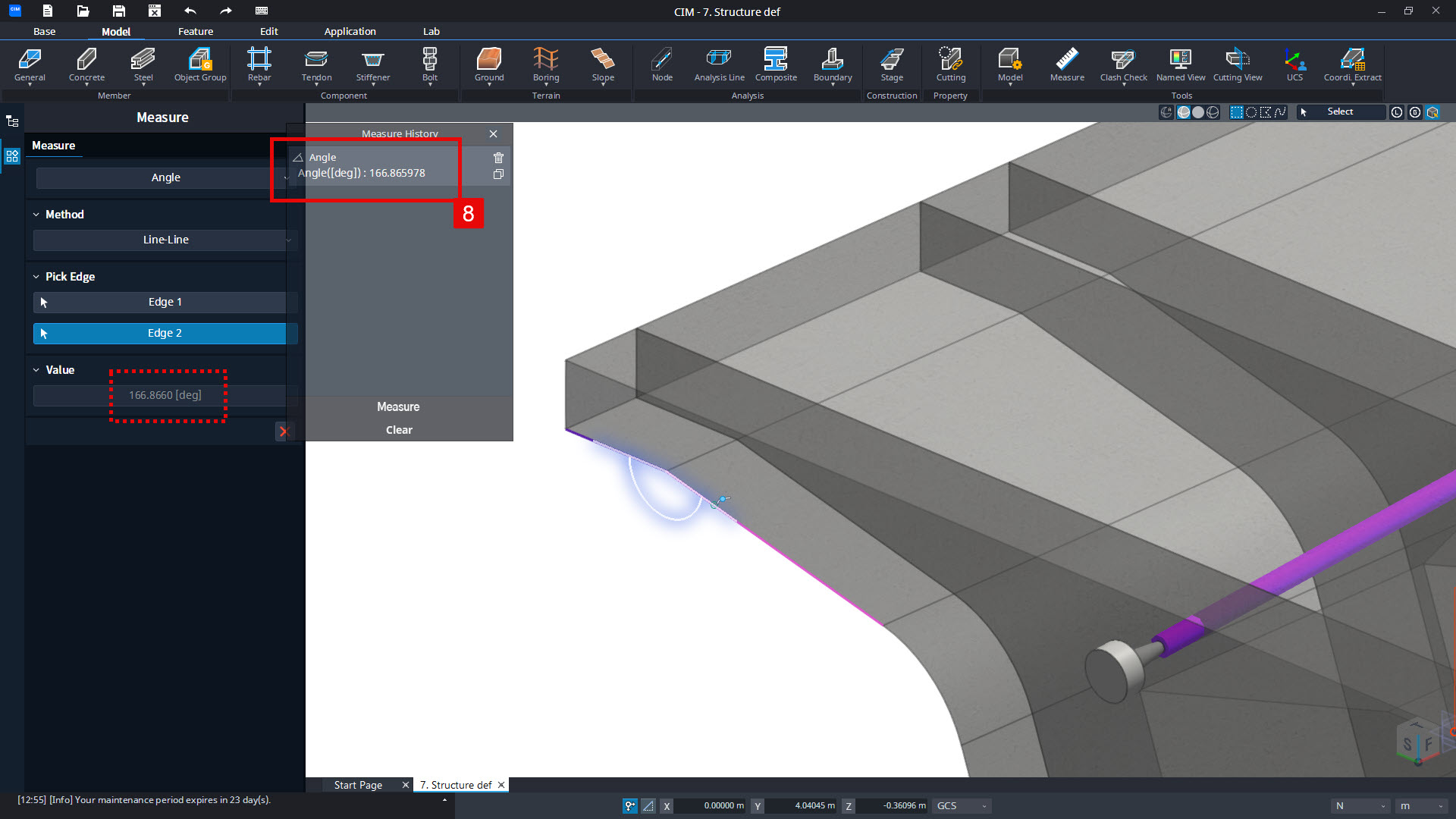

Step 8: The measured angle will appear in the Measure History panel and under the Value section.
This process allows you to accurately measure the angle between any two edges.
