Question
How to chamfer the edges of a user section inside a library?
Answer
To chamfer the edges of a user sections inside a library , follow the steps as mentioned below.

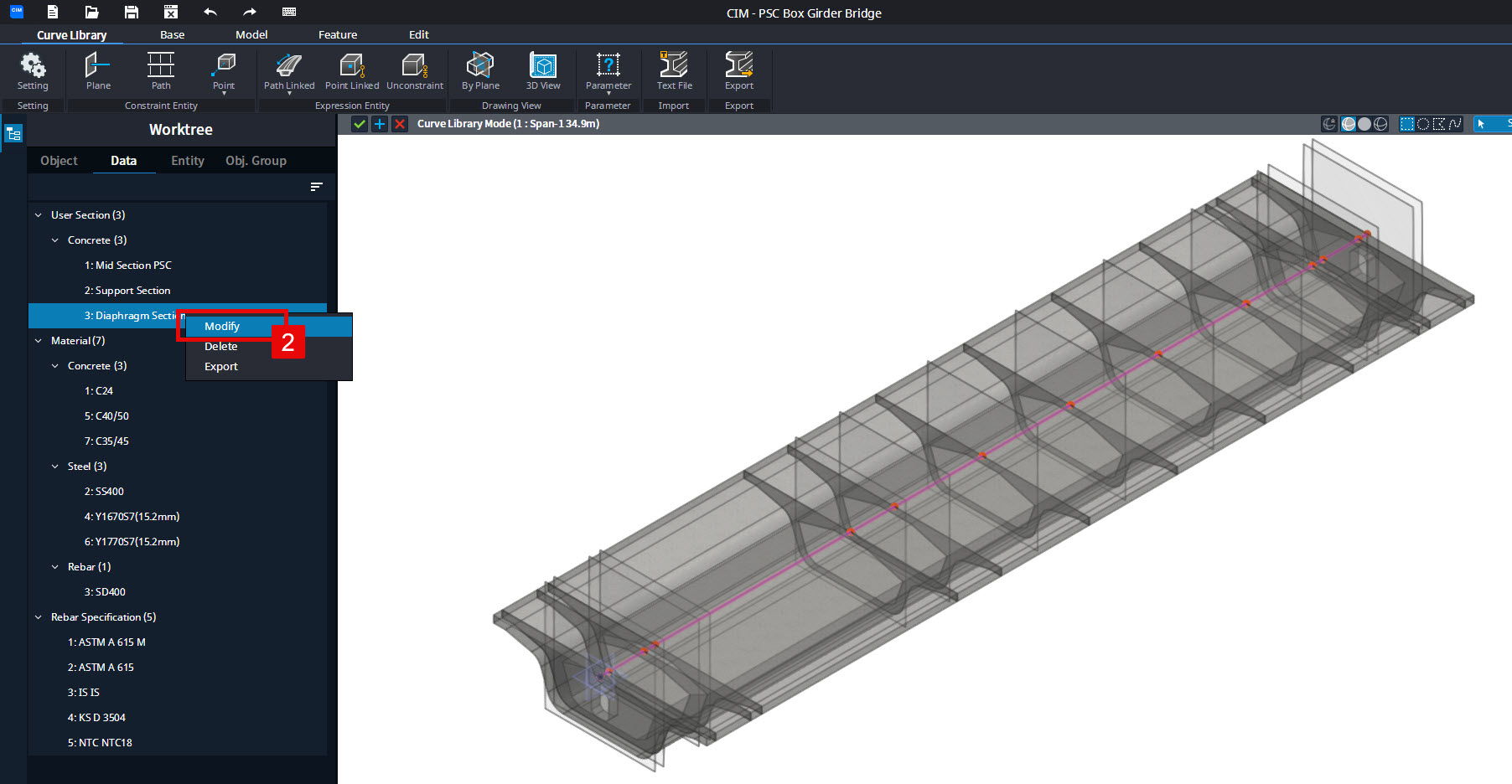

Step 1: Open the library and right click on the user section that needs to be chamfered.
Step 2: From the drop-down menu, select the 'Modify' option.
Step 3: Click on the 'Edit' ribbon.
Step 4: Select the 'Chamfer' option.
Step 5: In the 'Chamfer Edge' panel displayed in the left, select the 'Chamfer' radio button.

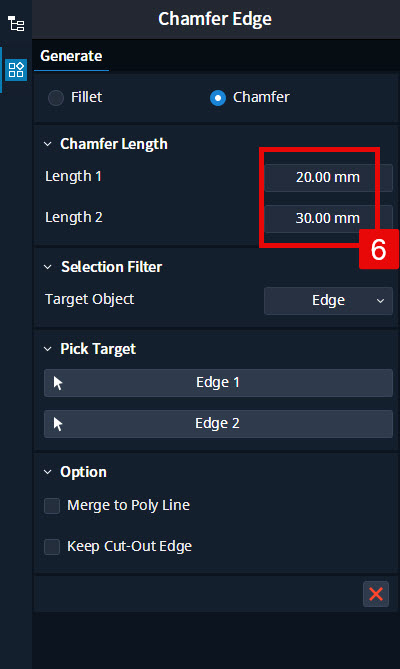

Step 6: Under the Chamfer Length section, enter the values for the length that needs to be chamfered along the edges.
Step 7: Ensure that the 'Edge' option is selected as the Target Object and click on the 'Edge 1' tab to select the first edge to be chamfered.
Step 8: The 'Edge 1' tab would get highlighted and now using cursor select the first edge to be chamfered.
Step 9: The 'Edge 2' tab, would then be automatically highlighted.
Step 10: Select the second edge that needs to be chamfered.
You can now observe that the two edges of the user section have been chamfered.
