Question
How to fillet the edges of a user section within a library?
Answer
To fillet the edges of a user sections inside a library , follow the steps as mentioned below.

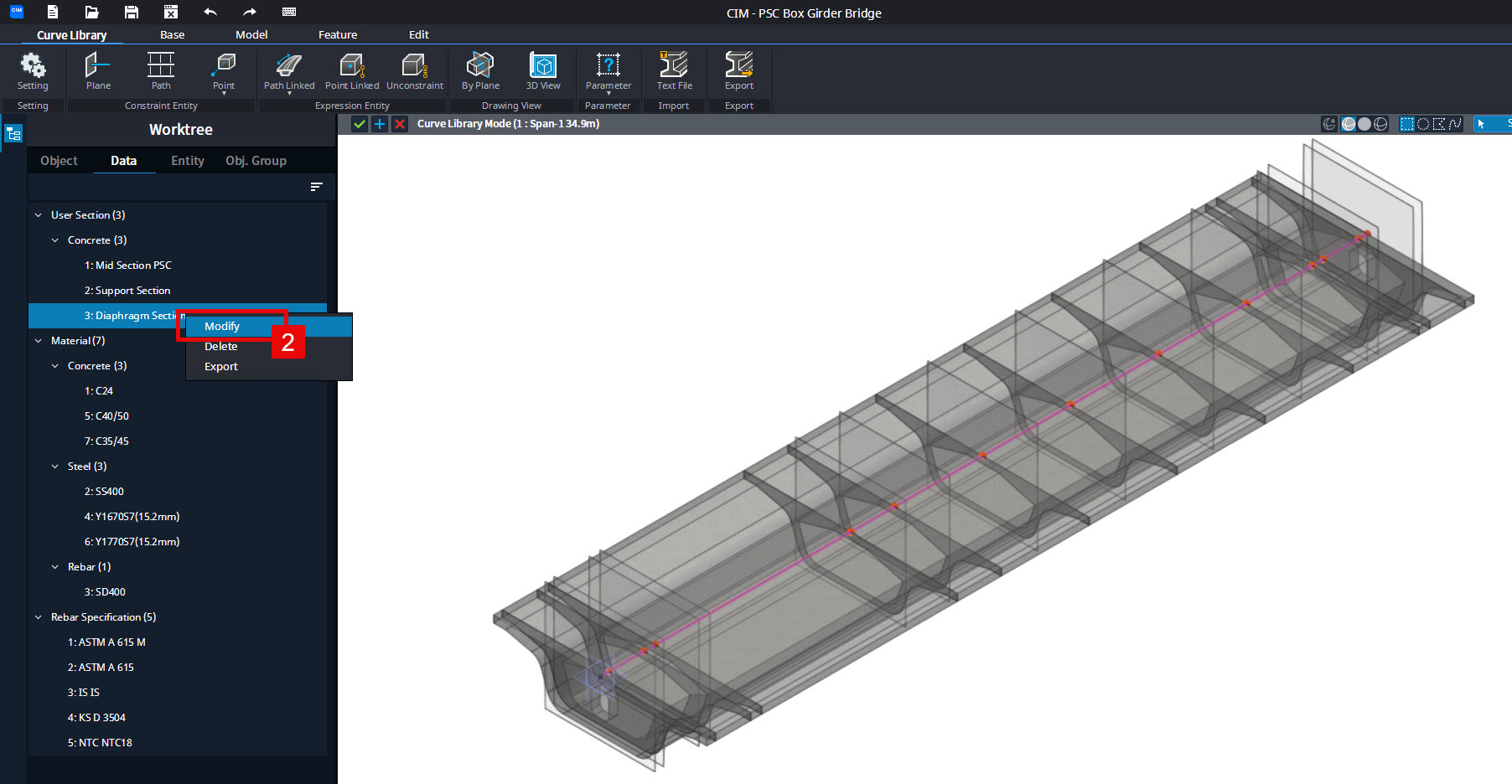

Step 1: Open the library and right click on the user section that needs to be filleted.
Step 2: From the drop-down menu, select the 'Modify' option.

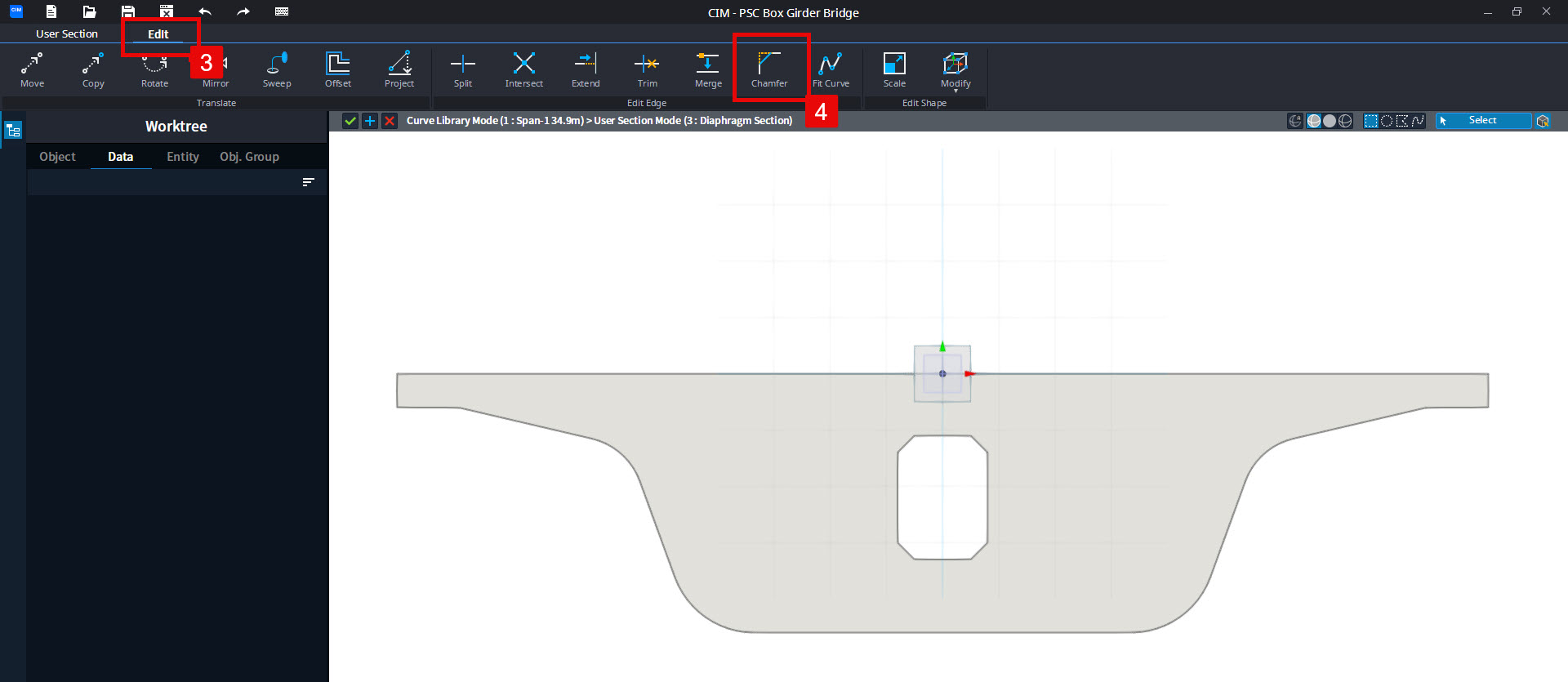

Step 3: Click on the 'Edit' ribbon.
Step 4: Select the 'Chamfer' option.

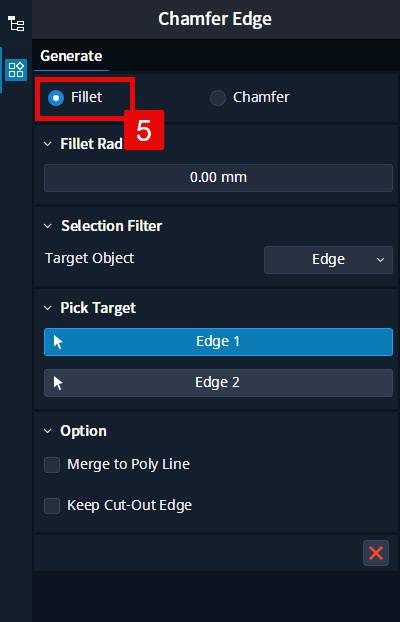

Step 5: In the 'Chamfer Edge' panel displayed in the left, select the 'Fillet' radio button.

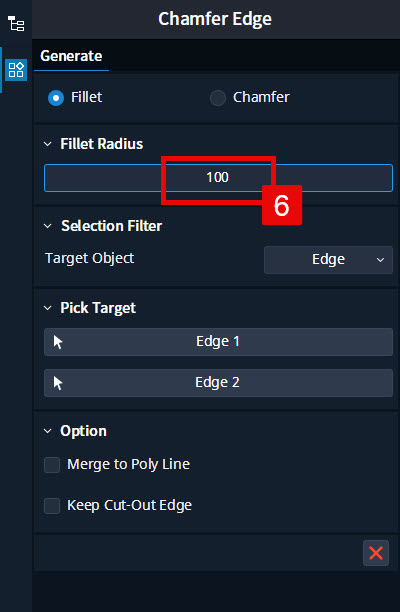

Step 6: Under the Fillet Radius section, enter the 'Fillet Radius' value.

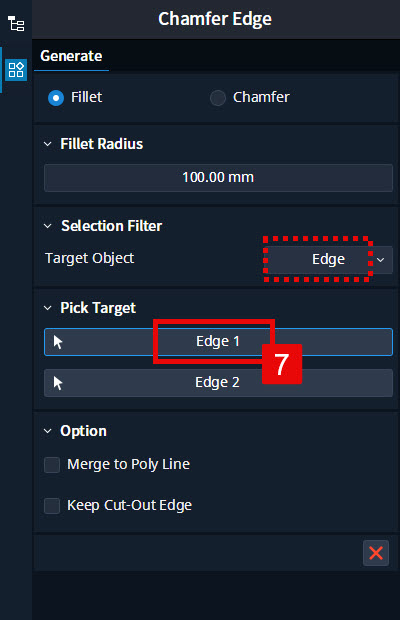

Step 7: Ensure that the 'Edge' option is selected as the Target Object and click on the 'Edge 1' tab to select the first edge to be filleted.
Step 8: The 'Edge 1' tab would get highlighted and now using cursor select the first edge to be filleted.

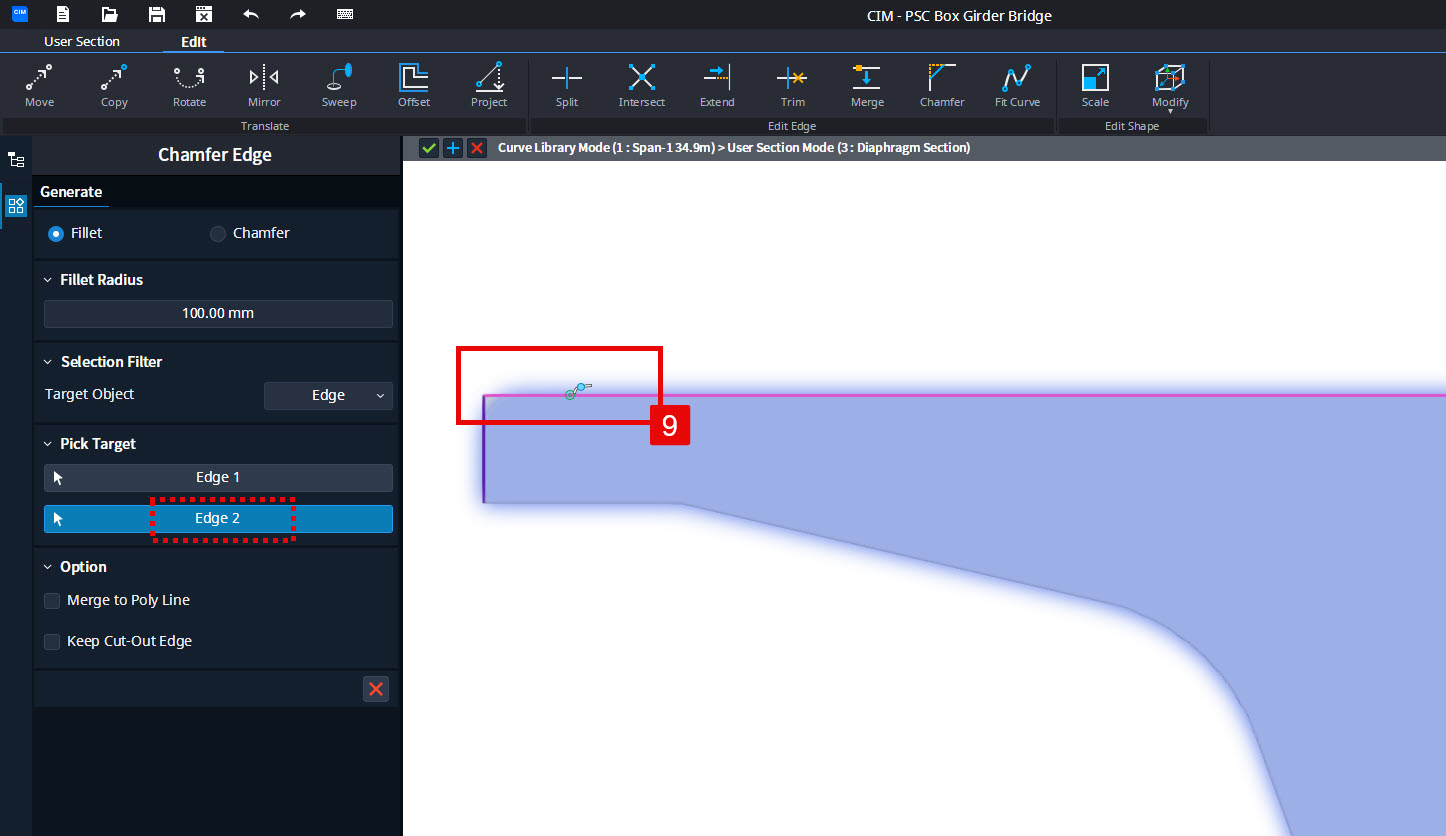

Step 9: The 'Edge 2' tab, would then be automatically highlighted. Select the second edge that needs to be filleted.

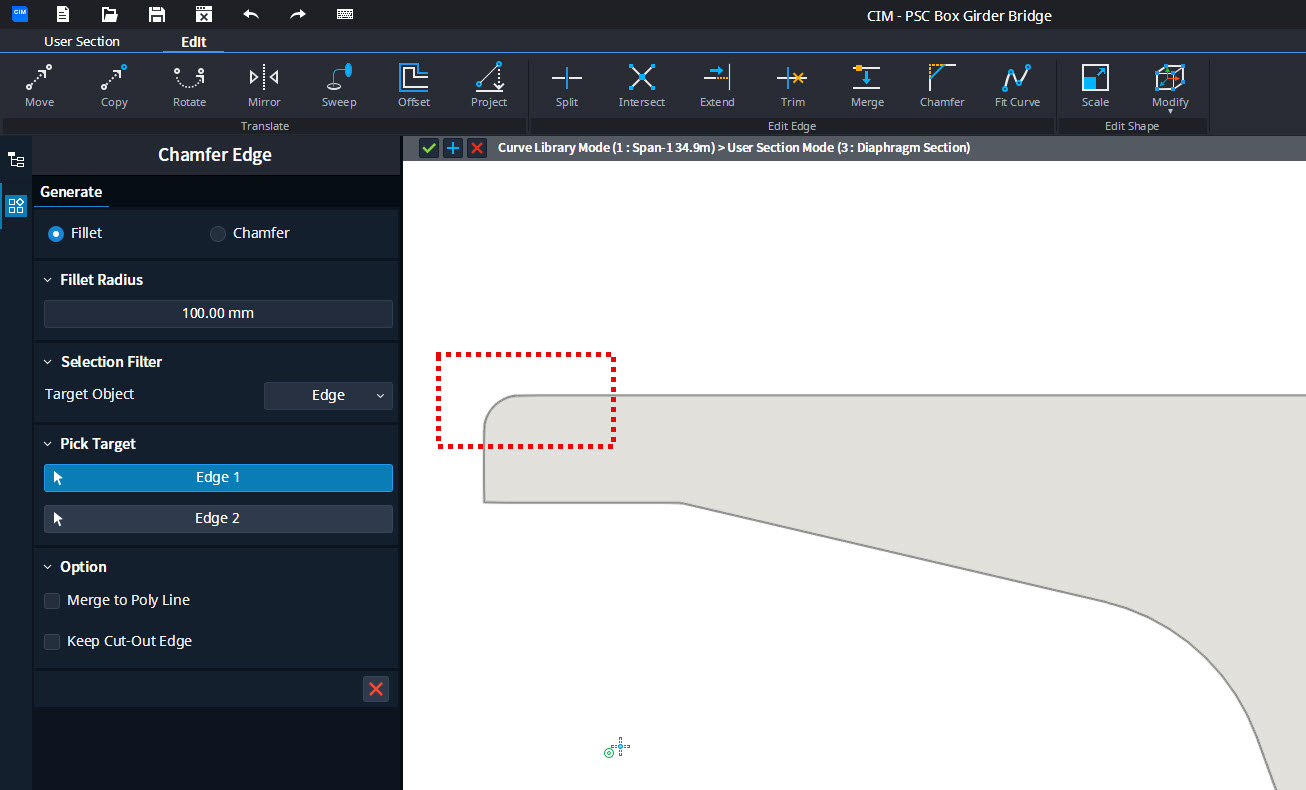

You can now observe that the two edges of the user section have been filleted.
