Question
How to export the analytical model to MIDAS CIVIL NX?
Answer
Consider that you have already defined the analysis case in CIM that needs to be exported to MIDAS CIVIL NX. The steps shown below can be followed to export the analysis case to MIDAS CIVIL NX.
Step 1: Click on the 'Application' ribbon.
Step 2: Click on the 'MIDAS CIVIL' option.

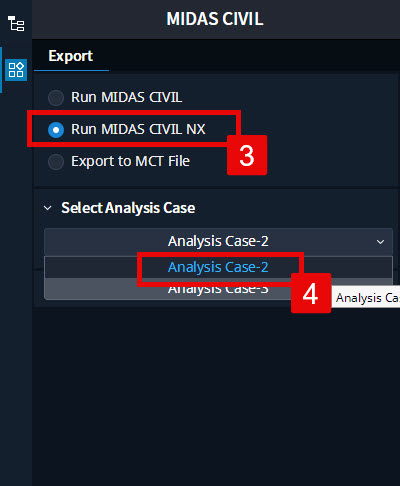

Step 3: To export the model into MIDAS CIVIL NX, select the radio button 'Run MIDAS CIVIL NX'.
Step 4: Select the already defined Analysis case from the dropdown list under the 'Select Analysis Case' section.

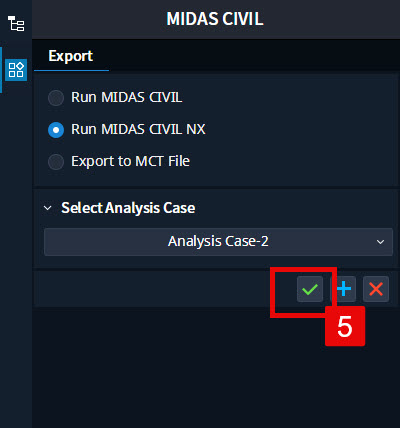

Step 5: Click on the 'Green Tick'.
Step 6: In the User Account Control dialog box, click on the 'Yes' tab.

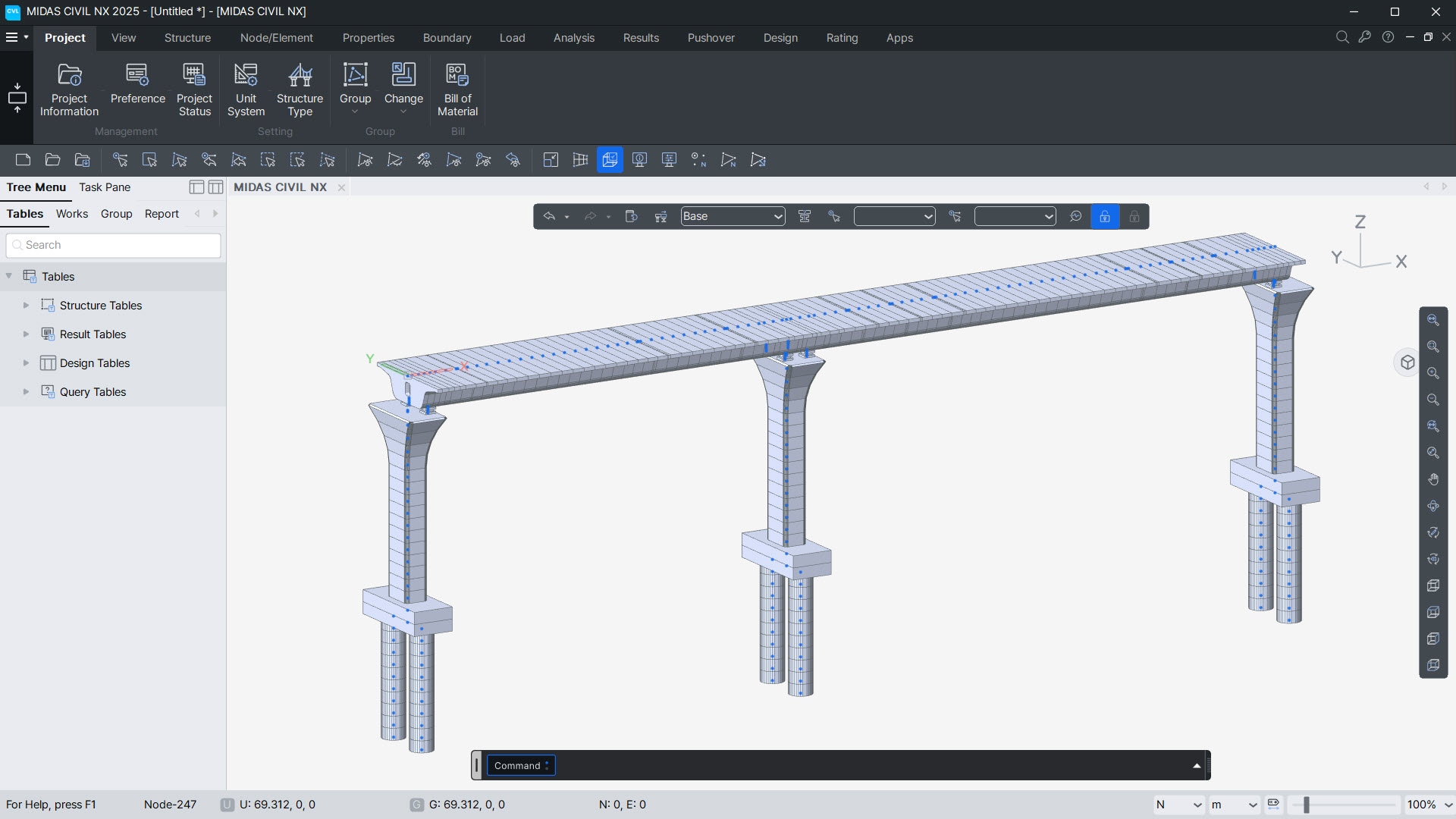

CIVIL NX shall open and the exported analytical model is displayed.
