[CIM] How to export the analytical model as MCT file?

Question

How to export the analytical model as MCT file?

Answer

Consider that you have already defined the analysis case in CIM that needs to be exported as mct file. The steps shown below can be followed to export the analysis case as mct file.

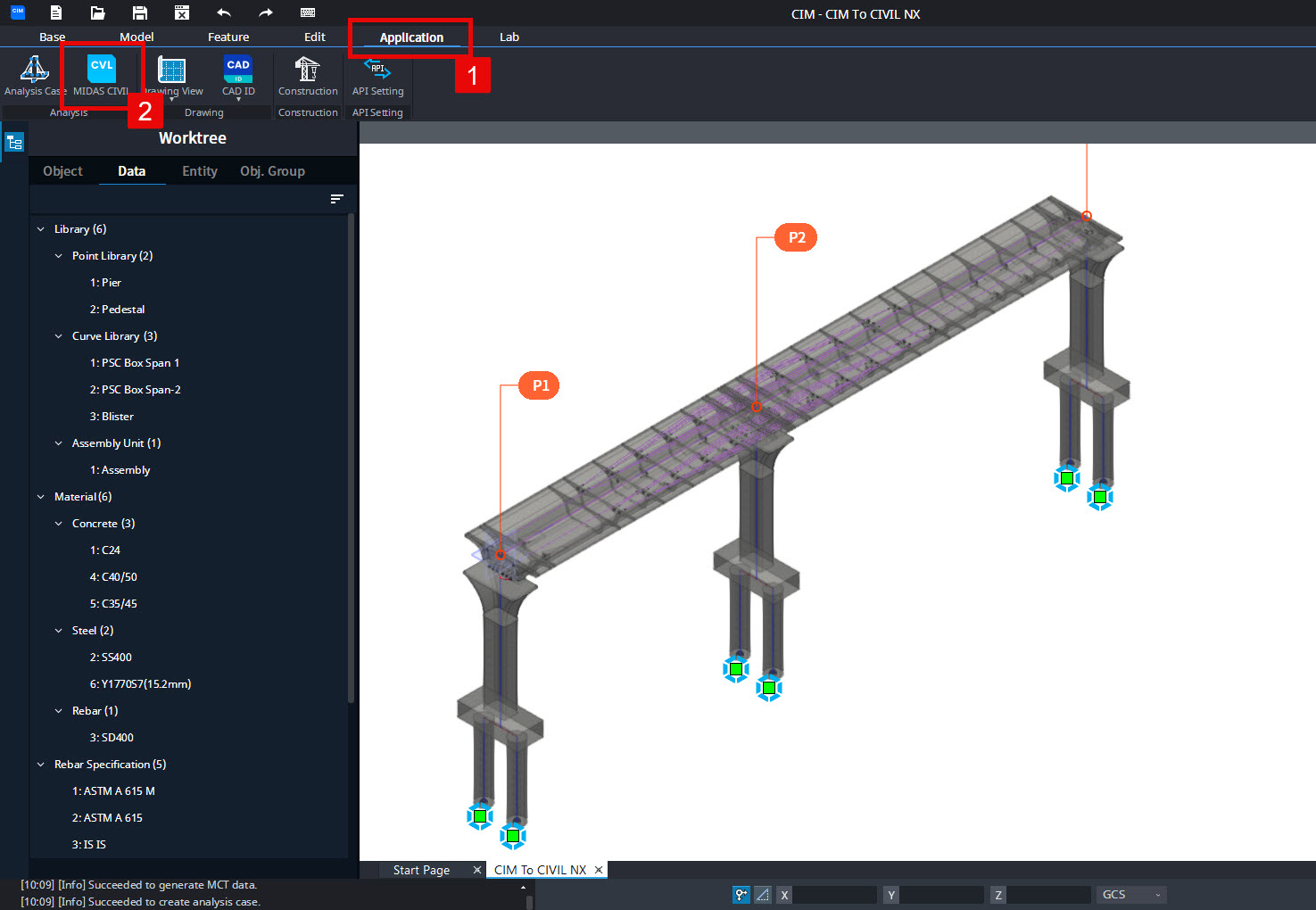

Step 1: Click on the 'Application' ribbon.

Step 2: Click on the 'MIDAS CIVIL' option.

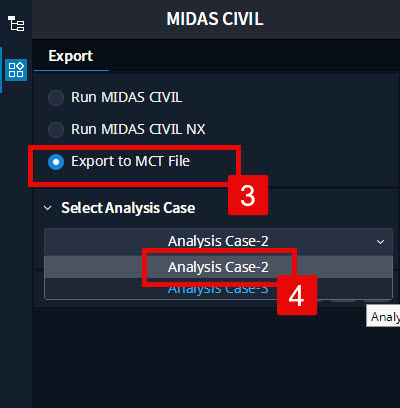

Step 3: To export the model as MCT file, select the radio button 'Export to MCT File'.

Step 4: Select the already defined Analysis case from the dropdown list under the 'Select Analysis Case' section.

Step 5: Click on the 'Green Tick'.

Step 6: Define the name of the MCT file.

Step 7: Click on 'Save' tab.

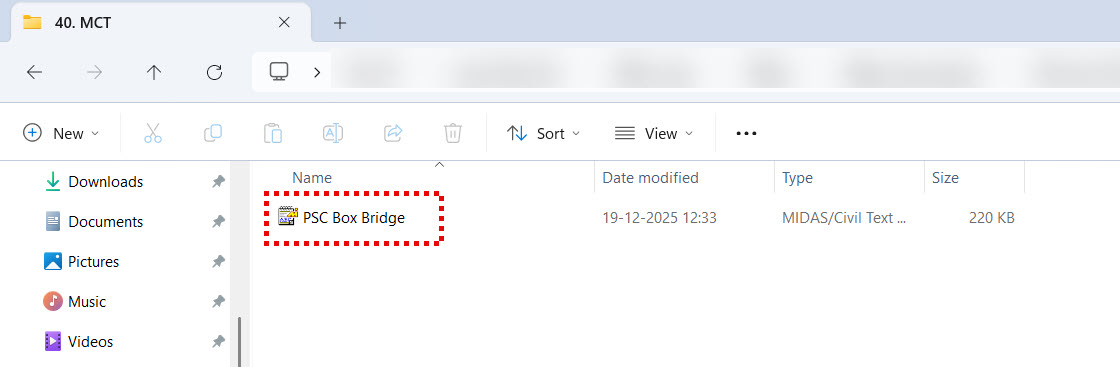

You can now observe that the MCT file is saved at that location.
