[M-Connector V2] DB Manager Specifications

Details on each Function

The data in the Result Table can be handled using Folders to improve efficiency when updating and parsing data in MS Excel and MIDAS NX. The user can divide the tables by purpose or sequence, and can control them partially or fully.

DB Manager

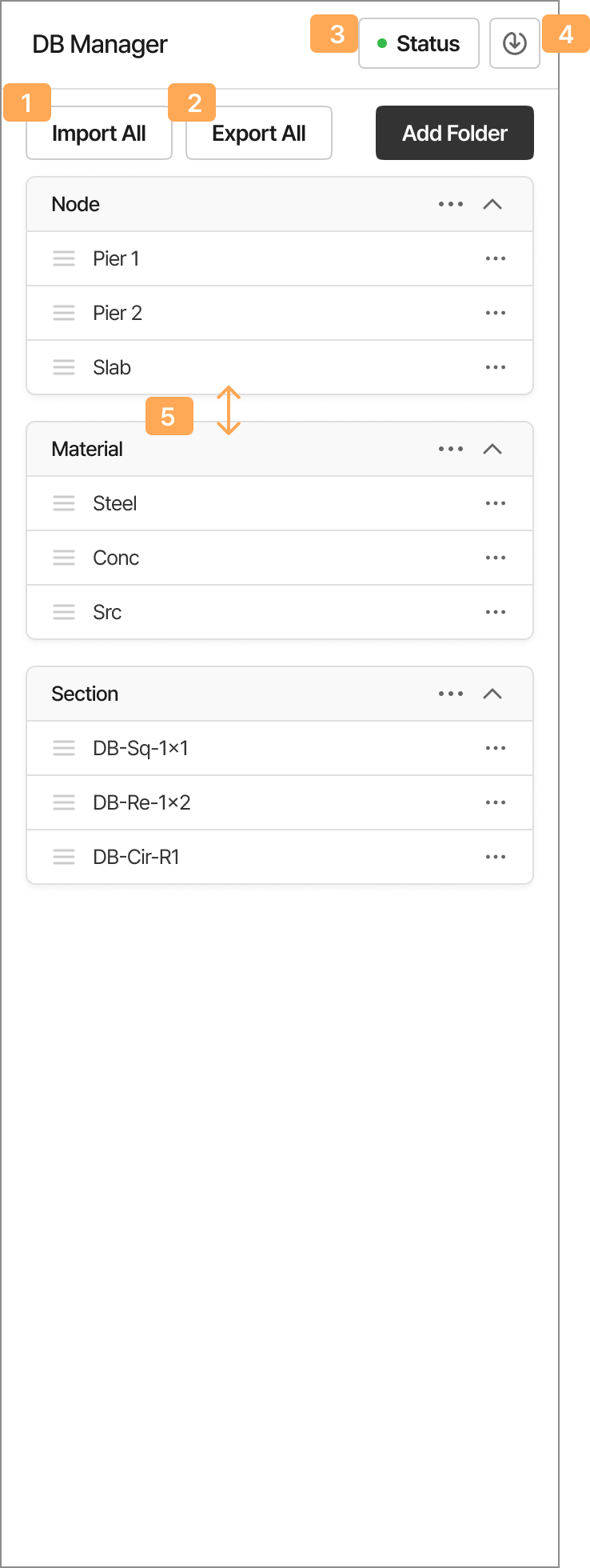

Create a folder with specifications

• The user can add a new folder by clicking Add Folder.
• The user can control the data displayed on this page.

Specifications


1. Import All: Import all set data from MIDAS NX into MS Excel, following the user’s folder and table data settings.
2. Export All: Export all set data from MS Excel to the MIDAS NX, following the user’s folder and table data settings.
3. Status: Notice to the user whether the MIDAS Connector is connected to your MIDAS NX or not.
4. Data Processing: After starting processes, you can check the progress of all work processing.
5. The user can change the data folder and sequence on the folder page.

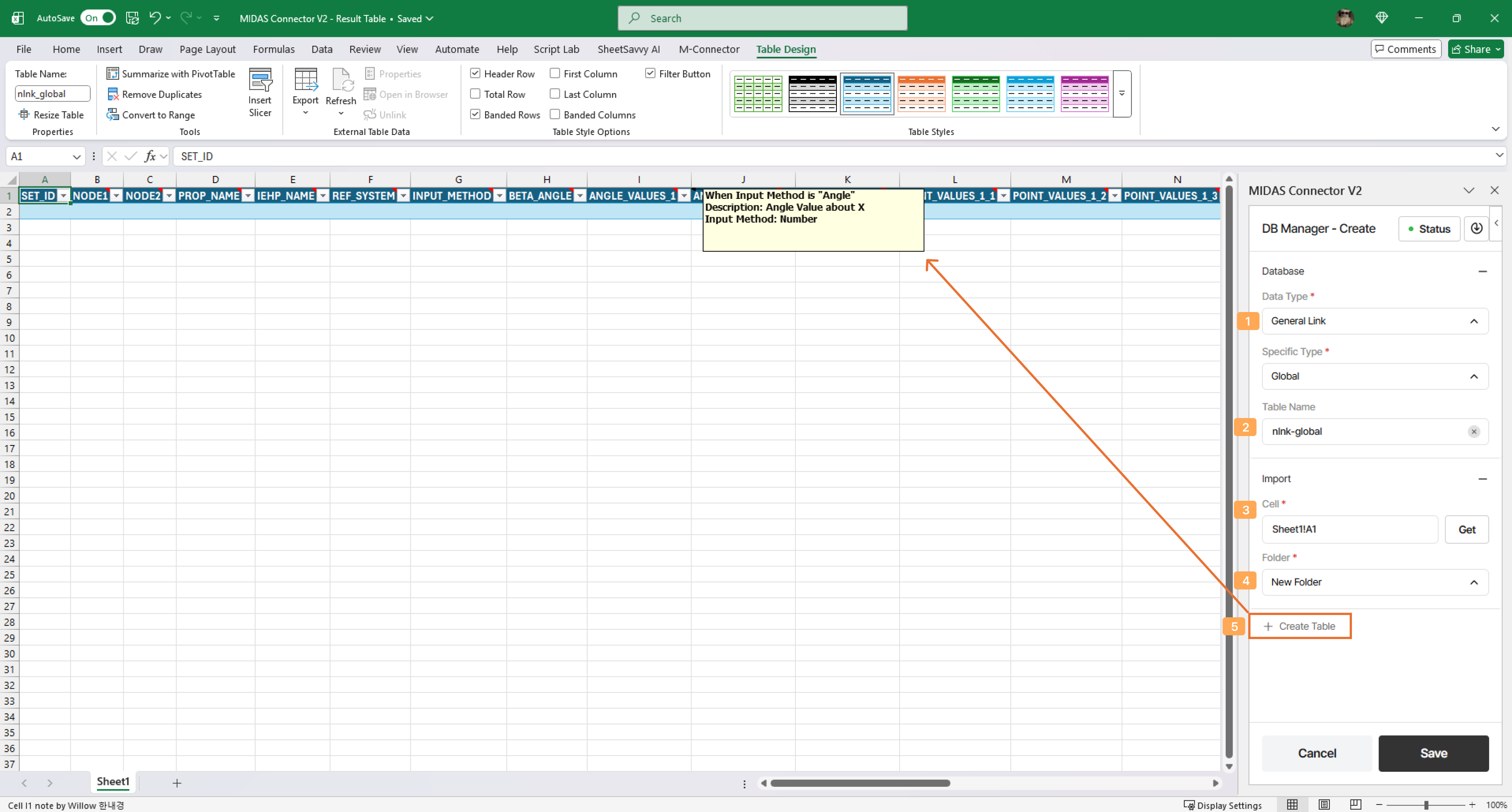

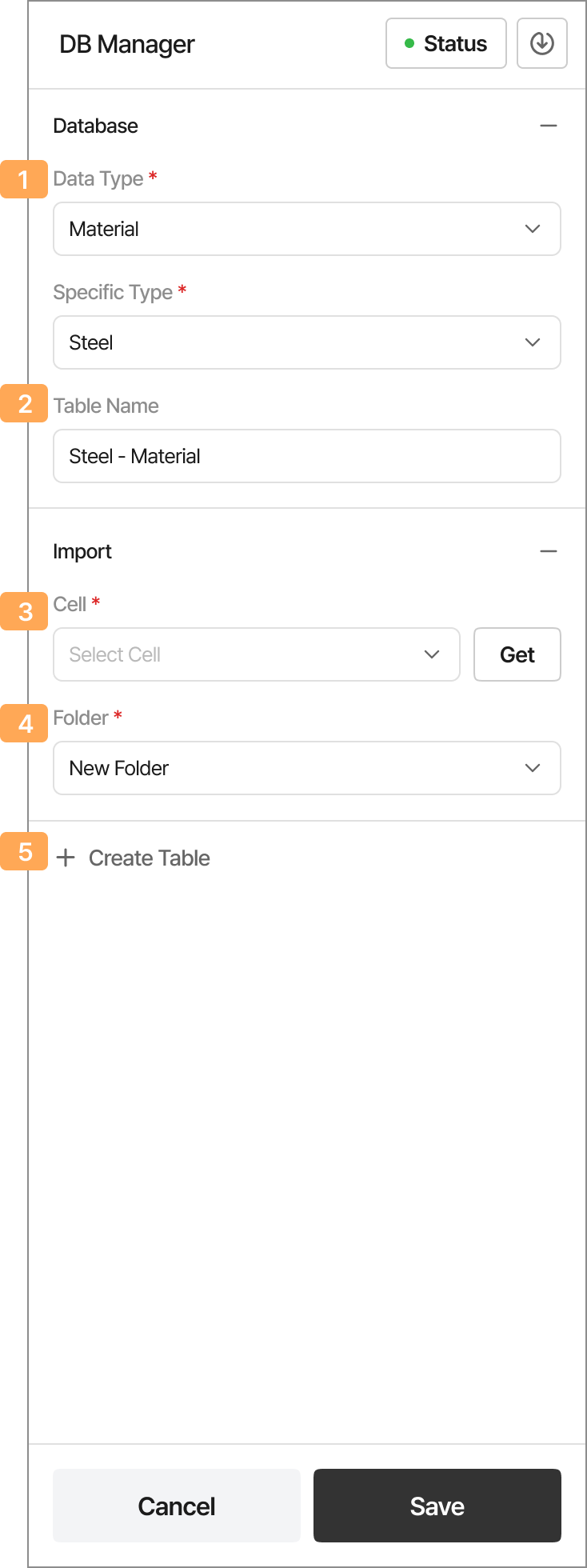

Adding a table with specifications


• The user can add new table data by clicking Add Data or extending this icon and selecting Add Data.
• The user can select table properties here and designate the start cell via table settings.

Specifications

1. Select Data type and Specific Type (Only supported items show in the droplist).
2. The table name is automatically generated based on the data type; however, the user can edit it.
3. Select start cell.
4. Select folder.

5. If you don’t have table information or need a basic table format, you can create a new table using it.
