Question
How can I change the 'Texture' and 'Color' of multiple members?
Answer
Follow the steps below to change the appearance of multiple members in CIM:

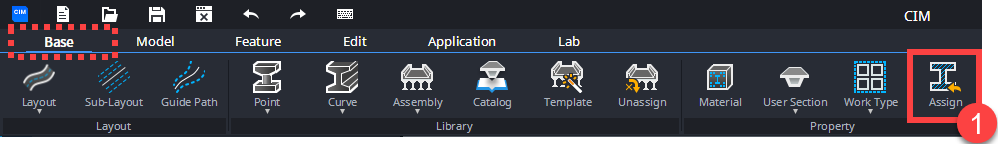

Step 1: In the Base ribbon, go to the "Assign" option
[Note: This option is available in all 4 major modes, i.e., Point Library mode, Curve Library mode, Assembly unit mode, and Base mode.]
A menu panel shall be displayed on the left of the modelling window:
Step 2: From the "Assign Filter" list, select the "Common" option
Let the Property remain set as "Graphic."

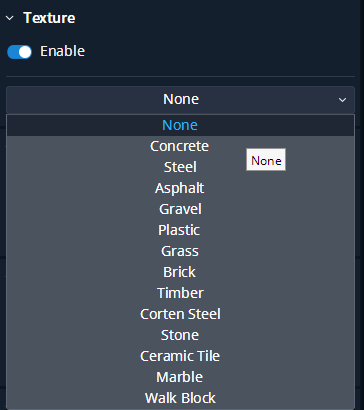

Step 3: Change the Texture as per your requirement

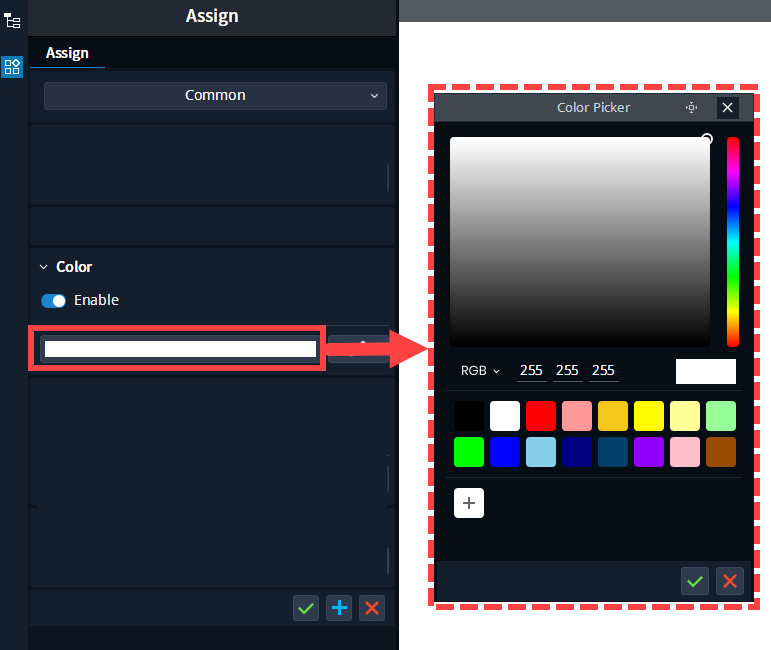

Step 4: Change the color as per your requirement using the Color Picker option
Step 5: Using the cursor cross selection, select the Target members on which you want to apply the settings
Step 6: Click on to save the settings

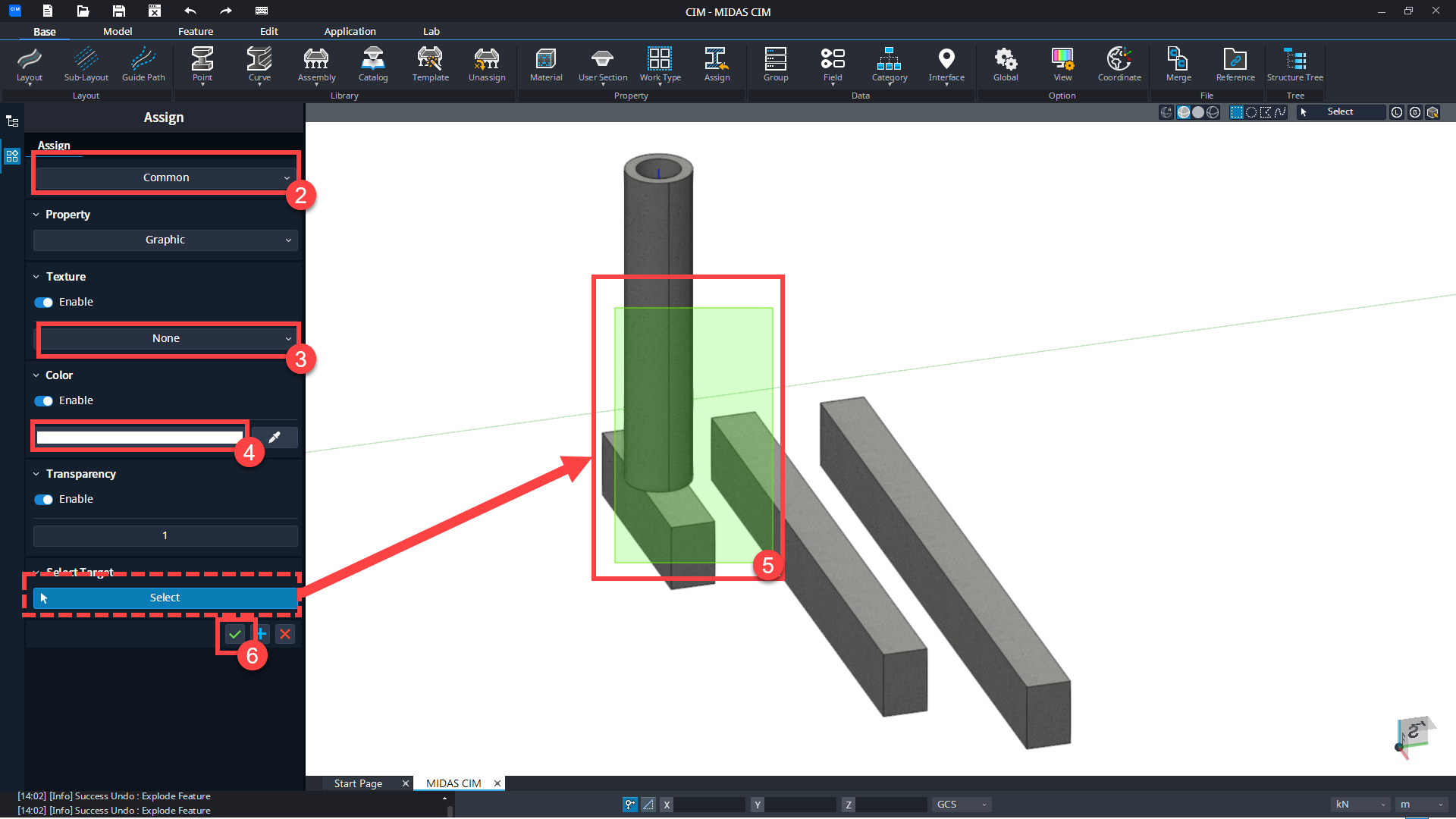

A resultant image of the above-mentioned process is shown below as an example:
