Wind Loads

1. Description

This component operates the Seismic Loads function in Gen NX.
This function generates an Wind load case.



The Wind loads function can be found in the Gen NX main menu, select [Load] tab > [Static Loads] group > [Lateral] group > [Wind Loads]



2. Grasshopper Path



[Midas] > [Static Loads] > [Wind Loads]

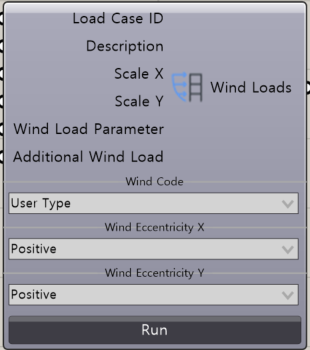

3. Component Image



4. Input/Output Value



• Input Data

Index	Name	Description	Type	Default	Previous Component
1	Load Case ID	Wind Load ID	Integer	Wind Load ID	-
2	Description	Description	String	-	-
3	Scale X	Scale Factor X	Real	-	-
4	Scale Y	Scale Factor Y	Real	-	-
5	Wind Load Parameter	Wind Pressure(User)	Object	-	Wind Pressure(User)
6	Additional Wind Load	Wind Additions	Object	-	Wind Additions



• Output Data

Index	Command	Description	Type		Next Component
1	WIND	Wind Loads	Json		-





---
