1. Description
This component operates the Vibration Mode Shape Result Table function.
The Vibration Mode Shape function can be found in the Gen NX / CIVIL NX main menu, select [Result] tab > [Result Tables] tab > [Vibration Mode Shape]
2. Grasshopper Path
[Midas] > [Results] > [Vibration Mode Shape]

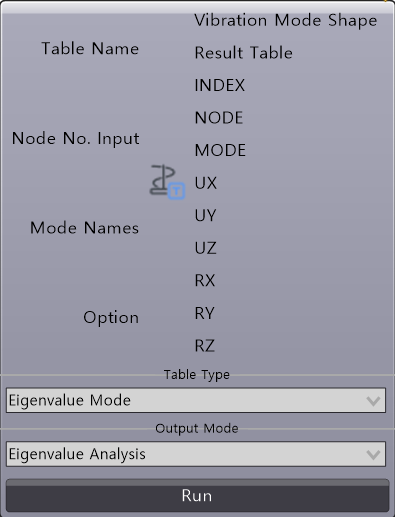

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous Component |
|---|---|---|---|---|---|
| 1 | Table Name | Table Name | String | - | - |
| 2 | Node No | Node Number | Array | - | - |
| Node Number | String | - | - | ||
| Structure Group | String | - | - | ||
| 3 | Mode No | Eigenvalue Mode Number | String | - | - |
| 4 | Option | Option | Object | - | Option of Result Table |
- Output Data
| Index | Command | Description | Type | Next Component | |
|---|---|---|---|---|---|
| 1 | TABLE | Vibration Mode Shape Result Table | Json | - |
5. Reference API Manual Link
Vibration Mode Shape - Aanlysis Result Table
