1. Update Item
1) New Features Added
- Seismic Earth Pressure
- Static Earth Pressure
- Pressure Profile Items
- Add Impact Factor
- Node Ids
2) Existing Components Updated
- RS Function Taiwan 2022 code Added
2. Description
1) New Components Added

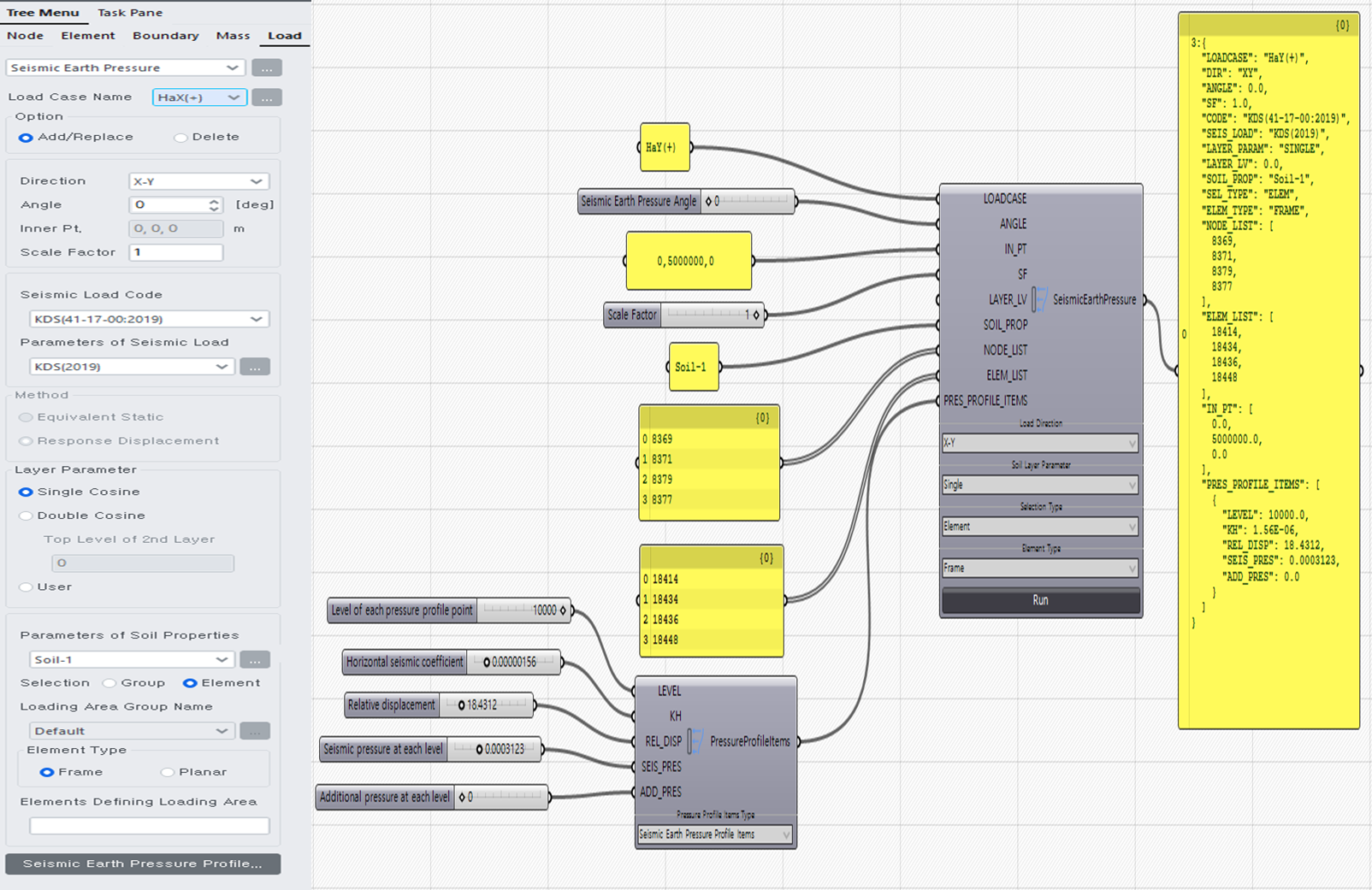

Seismic Earth Pressure
This is a component that creates the input for Seismic Earth Pressure using Grasshopper.
It requires the input from the Pressure Profile Items component.
※ Exclusive to GEN KR NX.

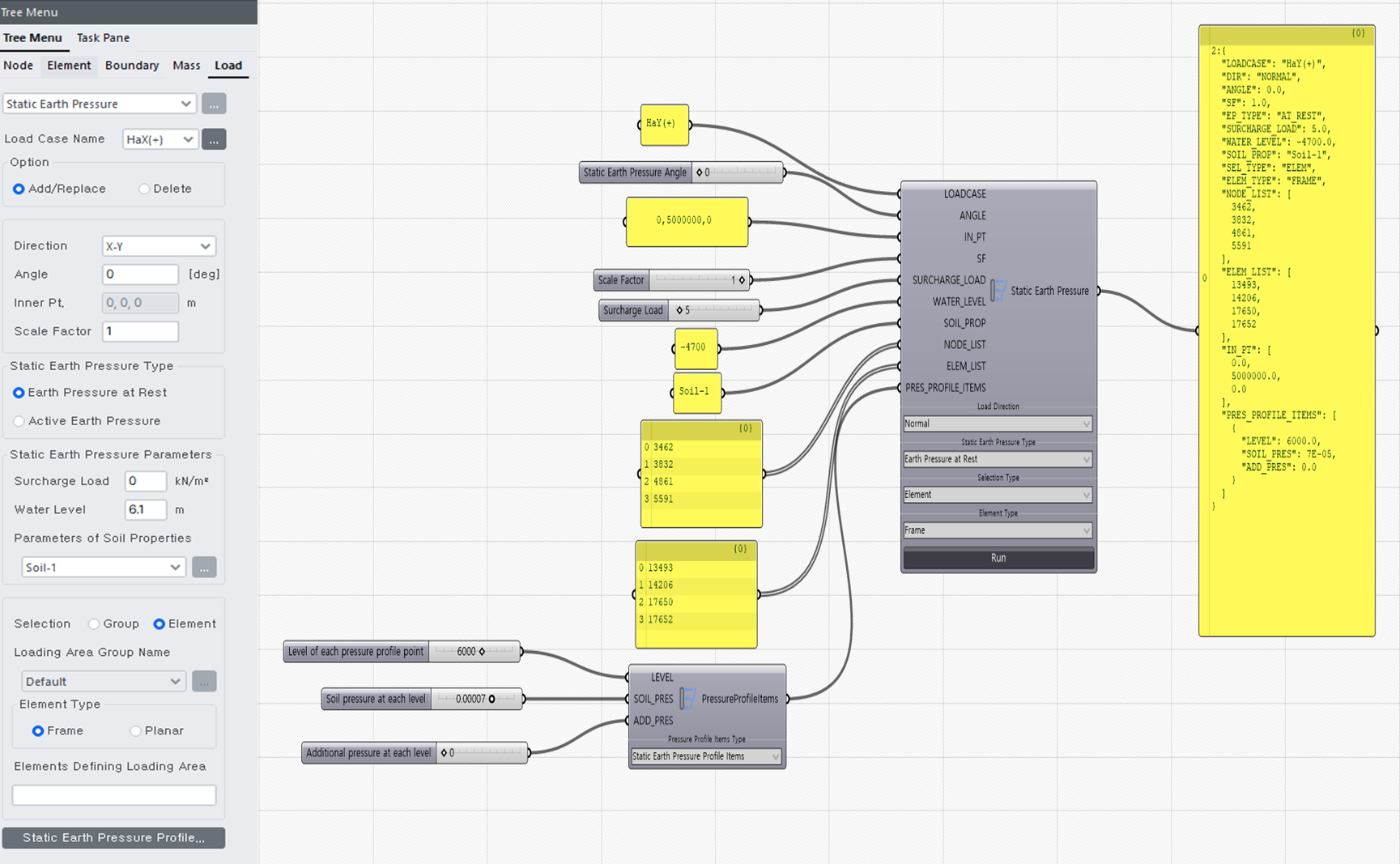

Static Earth Pressure
This is a component that creates the input for Static Earth Pressure using Grasshopper.
It requires the input from the Pressure Profile Items component.
※ Exclusive to GEN NX.

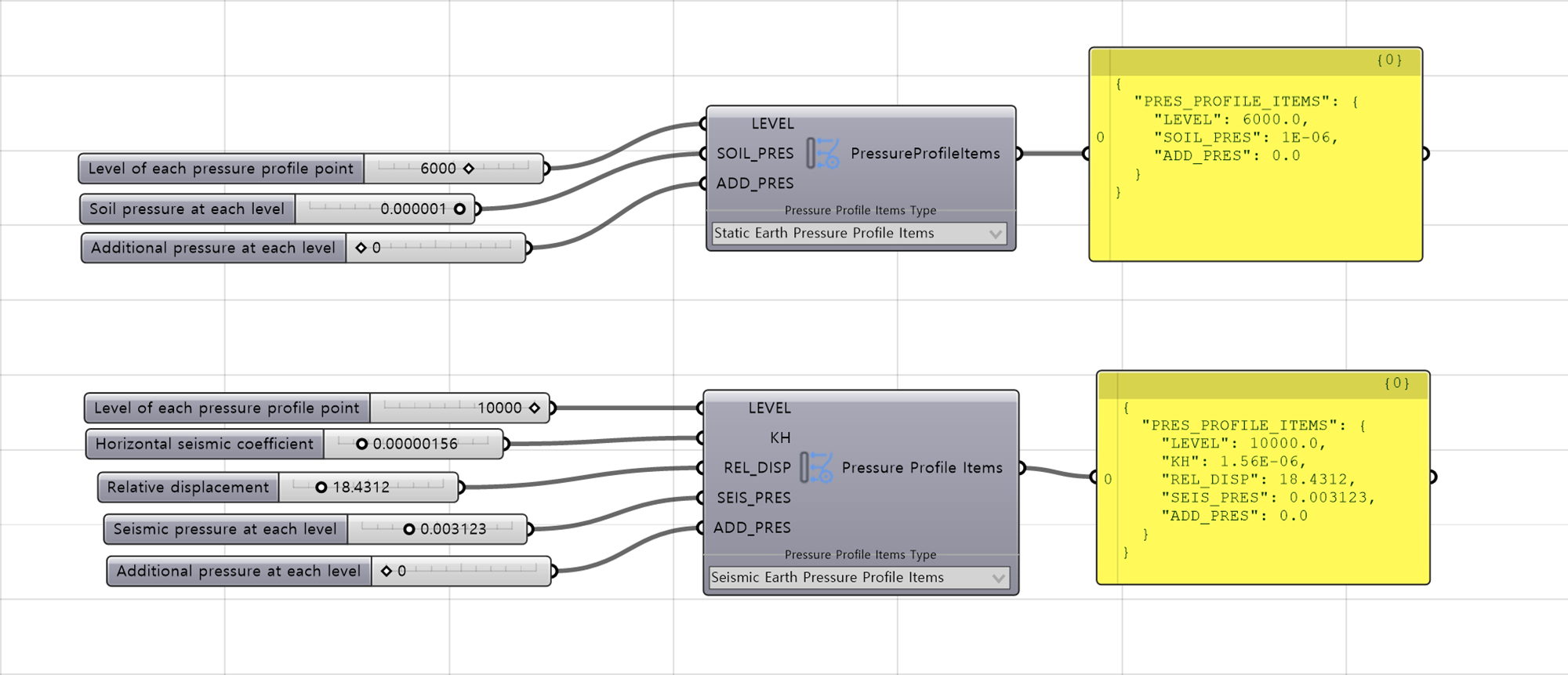

Pressure Profile Items
This component inputs data for the automatic calculation of Seismic Earth Pressure / Static Earth Pressure.
※ Exclusive to GEN NX.

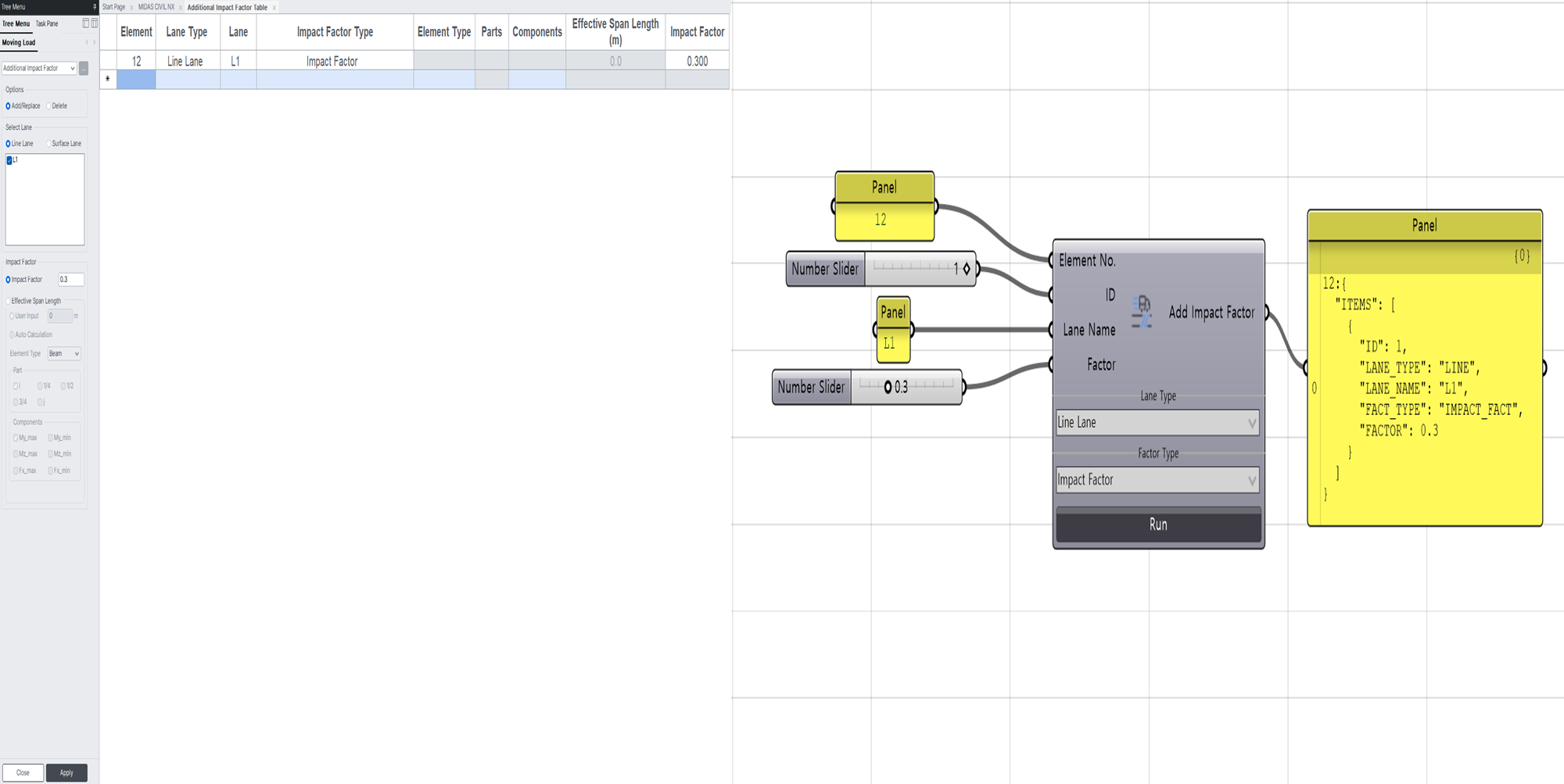

Add Impact Factor
This is a component for inputting impact factors by member.
※ Exclusive to CIVIL NX.
※ This component is applied based on the Moving Load Code - Korea.

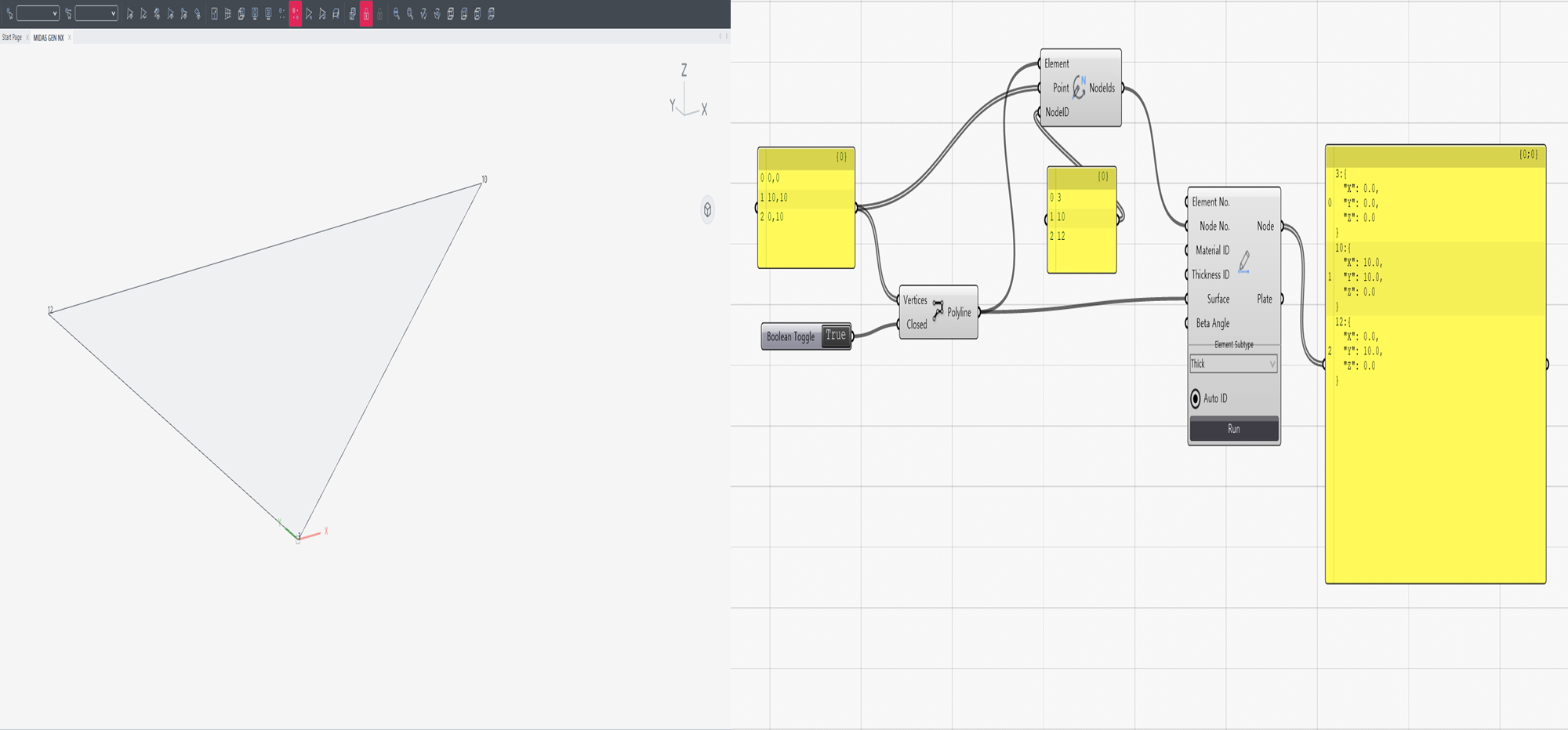

Node Ids
This is a component that allows users to change the node number.
2) Existing Components Updated
RS Function Taiwan 2022 code Added
The Taiwan 2022 code has been added to the RS Function Component.
