1. Description
This is a component that allows users to change the node number.
2. Grasshopper Path
[Midas] > [Node/Element] > [Node Ids]

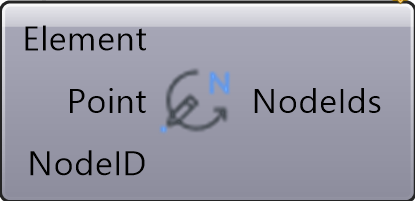

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default | Previous Component |
|---|---|---|---|---|---|
| 1 | Element | Element Line | Element | - | - |
| 2 | Point | Node of the Element | Point | - | - |
| 3 | NodeID | Node Numbering | Integer | - | - |
- Output Data
| Index | Command | Description | Type | Next Component | |
|---|---|---|---|---|---|
| 1 | - | Node Ids | Json | Beam/Plate/Solid |
