1. Description
This is a component that allows users to change the node number.
The Add Impact Factor function can be found in the CIVIL NX main menu, select [Load] tab > [Moving Load] tab > [Moving Load Code - Korea] Group > [Impact Factor] Group > Add Impact Factor
2. Grasshopper Path
[Midas] > [Moving Load] > [Add Impact Factor]

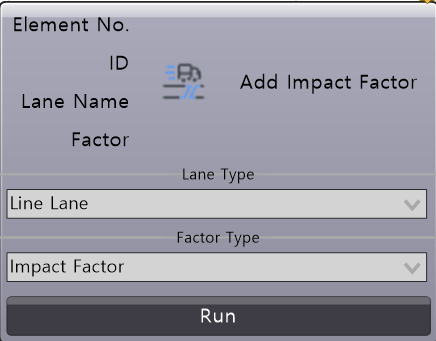

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous Component |
|---|---|---|---|---|---|
| 1 | Element No | Element Number | String | - | - |
| 2 | ID | Lane ID | Integer | - | - |
| 3 | Lane Name | Lane Name | String | - | - |
| 4 | Factor | Impact Factor | Real | - | - |
- Output Data
| Index | Command | Description | Type | Next Component | |
|---|---|---|---|---|---|
| 1 | IMPF | Additional Imact Factor | Json | - |
