1. Description

This is a component that creates the input for Static Earth Pressure using Grasshopper.

The Static Earth Pressure function can be found in the GEN NX main menu, select [Load] tab > [Static Load] tab > [Lateral] Group > [Earth Pressure] Group > Static Earth Pressure

2. Grasshopper Path

[Midas] > [Static Loads] > [Static Earth Pressure]

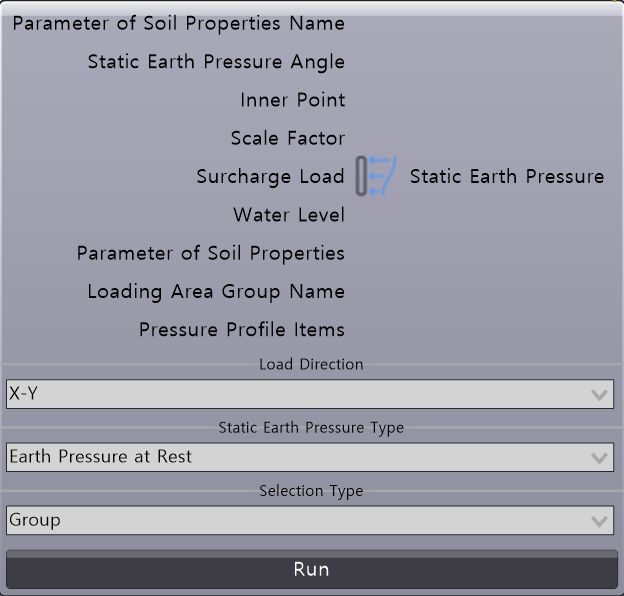

3. Component Image

4. Input/Output Value

Input Data

Index	Name	Description	Type	Default	Previous Component
1	Load Case	Load Case Name	String	-	-
2	Angle	Angle	Real	-	-
3	Inner Point	Inner Point	Array	-	-
4	Scale Factor	Impact Factor	Real	-	-
5	Surcharge Load	Surcharge Load	Real	-	-
6	Water Level	Water Level	Real	-	-
7	Parameter of Soil Properties	Parameter of Soil Properties	String	-	-
8	Load Direction	X-Y Normal
9	Static Earth Pressure Type	Earth Pressure at Rest Active Earth Pressure
10	Selection Type - Element
11	Node list	Node list	Array / Integer	-	-
12	Element list	Element list	Array / Integer	-	-
13	Element Type	Frame Planar	-	-	-
14	Selection Type - Group
15	Loading Area Group Name	Loading Area Group Name	String	-	-
16	Pressure Profile Items	Pressure Profile Items	-	-	Pressure Profile Items

Output Data

Index	Command	Description	Type		Next Component
1	EPST	Static Earth Pressure	Json		-

5. Reference API Manual Link

Static Earth Pressure
