1. Description
This component operates the Static Load Cases function in Civil NX.
Define static load cases, or modify or delete previously defined load cases.
The Static Load Cases funtion can be found in the Civil NX main menu,select [Load] tab > [Static Loads(Type)] group > [Static Load Cases]
2. Grasshopper Path
[Midas] > [Static Loads] > [Static Load Cases]

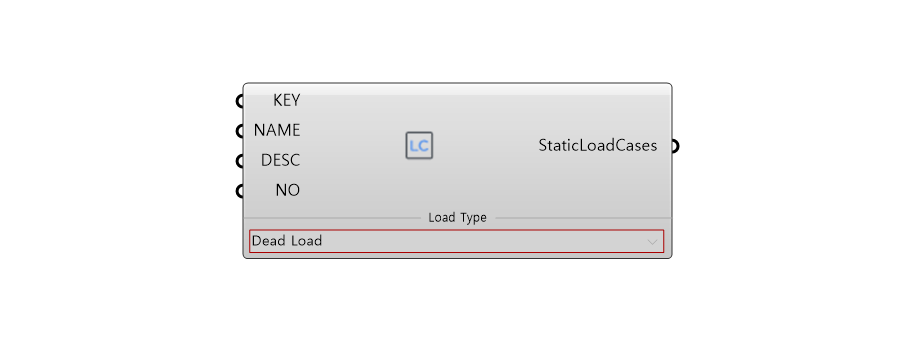

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Load Case ID No. | Integer | - | - |
| 2 | NAME | Load Case Name | String | - | - |
| 3 | DESC | Description | String | - | - |
| 4 | NO. | Load Case Index No. | Integer | - | - |
| 5 | Load Type | Load Type | Select | Dead Load | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | STLD | Create Static Load Cases | Json | Put/Delete |
5. Reference API Manual Link
