1. Description
This component extracts Node information from the Elements formed in Civil NX. It is used in conjunction with the Get Object component and will not display data if there is no Element information in Civil NX.
2. Grasshopper Path
[Midas] > [Tools] > [Midas Get Elem Node]

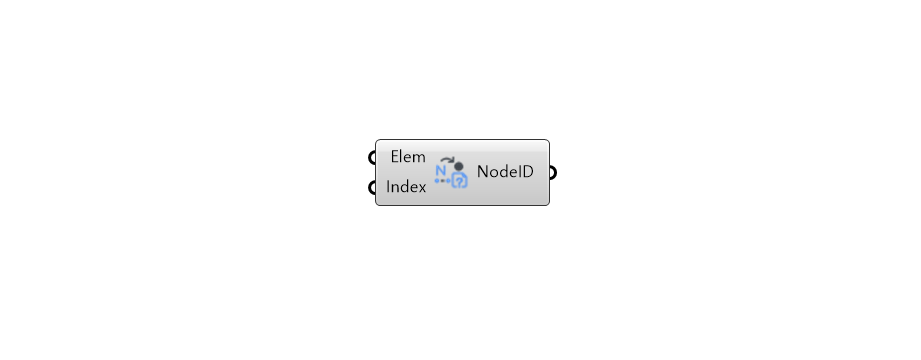

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | Elem | Element Data | Object | - | Get Object |
| 2 | Index |
Node Position |
Integer | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | NODE | Node ID | Integer | Get | - |
5. Reference API Manual Link
