1. Description

This component operates the Assign Floor Loads function in Civil NX.
Enter floor loads within a "closed" planar polygon. The floor loads are converted into line beam loads or in-span, concentrated beam loads applied to the top of wall or beam elements.

The Assign Floor Loads funtion can be found in the Civil NX main menu,select [Load] tab > [Static Loads(Type)] group > [Pressure Load] group > [Assign Floor Loads] menu > [Assign Floor Loads]

2. Grasshopper Path

[Midas] > [Static Loads] > [Assign Floor Loads]

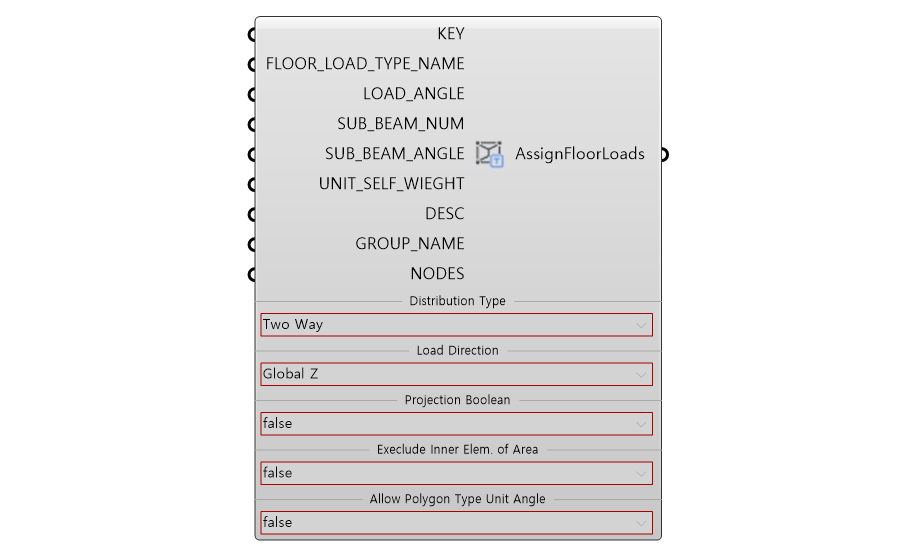

3. Component Image

4. Input/Output Value

Input Data

Index	Name	Description	Type	Default	Previous Component
1	KEY	Floor Load ID	Integer	-	-
2	FLOOR_LOAD_TYPE_NAME	Floor Load Type Name	String	-	-
3	LOAD_ANGLE	Load Angle(A1)	Real	0	-
4	SUB_BEAM_NUM	No. of Sub Beams	Integer	0	-
4	SUB_BEAM_ANGLE	Sub-Beam Angle(A2)	Real	0	-
5	UNIT_SELF_WEIGHT	Unit Self Weight	Real	0	-
6	DESC	Description	String	-	-
7	GROUP_NAME	Load Group Name	String	Default	-
8	NODES	Nodes defining Loading Area	Integer (multiline Data Only)	-	-
9	Distribution Type	Sub Beam Weight	Select	Two Way	-
10	Load Direction	Load Direction	Select	Global Z	-
11	Projection Boolean	Projection Boolean	Select	false	-
12	Exclude Inner Elem. of Area	Exclude Inner Elem. of Area	Select	false	-
13	Allow Polygon Type Unit Angle	Allow Polygon Type Unit Angle	Select	false	-

Output Data

Index	Command	Description	Type	Method	Next Component
1	FBLA	Assign Floor Load Type	Json	PUT/DELETE	-

5. Reference API Manual Link

Assign Floor Loads
