Linear Point Spring

1. 概要

Civil NXの「Point Spring Support」機能を操作するコンポーネントです。
線形弾性スプリングの剛性を入力します。



「Linear Point Spring Supports」機能は、Civil NXのメインメニュー［Select］から選択できます。
[Boundary] tab > [Spring Supports] group > [Point Spring Supports]



2. Grasshopper パス



[Midas] > [Boundary] > [Linear Point Spring]

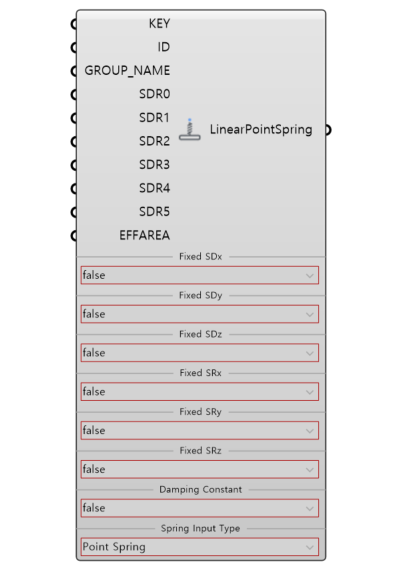

3. コンポーネント画像

4.入力／出力値



• 入力データ

Index	Name	Description	Type	Default	Previous Component
1	KEY	Node No.	Integer	-	-
2	ID	Serial Number	Integer	-	-
3	GROUP_NAME	Boundary Group Name	String	-	-
4	SDR0~SDR5	Spring Stiffness in GCS	Real	-	-
5	EFFAREA	Effective Area	Real	-	-
6	Fixed SDx,SDy,SDz SRx,SRy,SRz	Stiffness of the selected components is entered as very large value	Select	-	-
7	Damping Constant	Check in an option to assign damping constant	Select	-	-
8	CDx,CDy,CDz CRx,CRy,CRz	(Rotational)Damping constant in GCS	Select	-	-
9	Spring Input Type	Point Spring or Surface Spring	Select	-	-

• 出力データ/strong

Index	Command	Description	Type	Method	Next Component
1	NSPR	Assign Point Spring Supports	Json	PUT/DELETE	-
2	SSPS	Assign Surface Spring Supports	Json	PUT/DELETE	-



5. APIマニュアル参照リンク

Point Spring

Surface Spring

---
