1. Description
This component operates the Point Spring Support function in Civil NX.
Enter the stiffness of Tension only type elastic spring.
The Tension Only Point Spring Supports function can be found in the Civil NX main menu,select [Boundary] tab > [Spring Supports] group > [Point Spring Supports]
2. Grasshopper Path
[Midas] > [Boundary] > [Tens Only Point Spring]

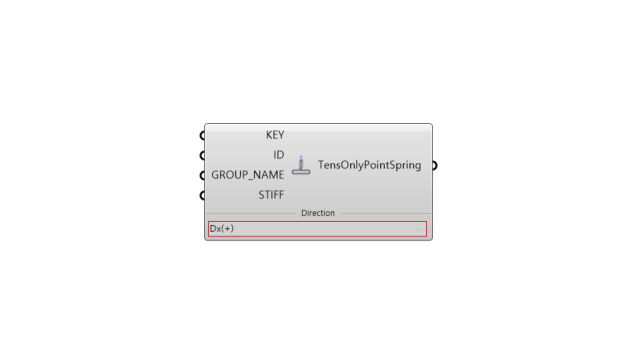

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Node No. | Integer | - | - |
| 2 | ID | Serial Number | Integer | - | - |
| 3 | GROUP_NAME | Boundary Group Name | String | - | - |
| 4 | STIFF | Tens-Only spring stiffness value | Real | - | - |
| 5 | Direction | The direction of a spring | Select | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | NSPR | Create Point Spring Supports | Json | PUT/DELETE | - |
5. Reference API Manual Link
