1. Description
This component operates the Elastic Link function in Civil NX.
Create multi linear elastic link data.
The Multi Linear Elastic Link function can be found in the Civil NX main menu,select [Boundary] tab > [Links] group > [Elastic Link]
2. Grasshopper Path
[Midas] > [Boundary] > [Multi Linear Elastic Link]

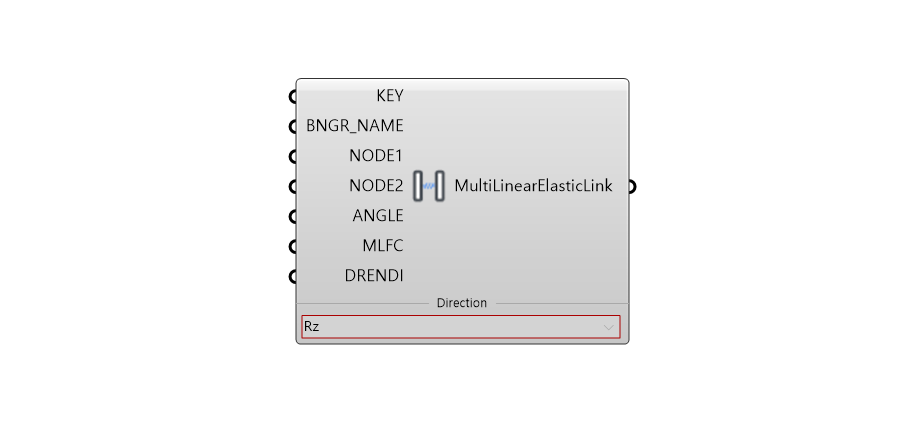

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Elastic Link ID | Integer | - | - |
| 2 | BNGR_NAME | Boundary Group Name | Integer | - | - |
| 3 | NODE1, NODE2 | Node No 1,2 | Integer | - | - |
| 4 | ANGLE | Angle defining the elastic link orientation | Real | - | - |
| 5 | MLFC | Force-Deformation Function ID | Integer | - | - |
| 6 | DRENDI * | Distance Ratio from End I | Real | 0 | - |
| 7 | Direction | The direction of a link | Select | Dx | - |
Activation Condition
* Only for if Direction is one of Dy,Dz,Ry,Rz
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | ELNK | Create Elastic Link | Json | PUT/DELETE | - |
5. Reference API Manual Link
