1. 説明
このコンポーネントは、CIVIL NXのRigid Link機能を操作します。Slave Nodeの特定の自由度をMaster Nodeに拘束します。
Rigid Link機能は、CIVIL NXのメインメニューから選択できます。 [Boundary] tab > [Links] group > [Rigid Link]
2. Grasshopperパス
[Midas] > [Boundary] > [Rigid Link]

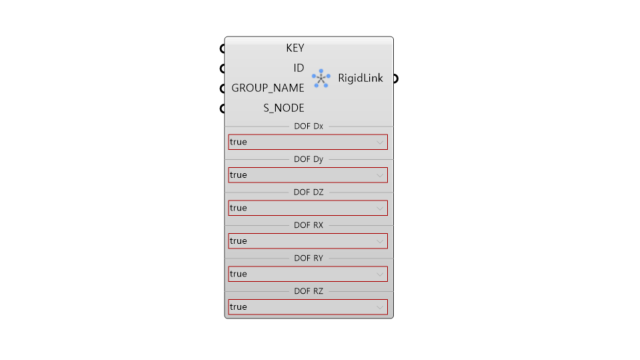

3. コンポーネント画像
4. 入出力値
- 入力データ
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Rigid Link ID | Integer | - | - |
| 2 | ID | Serial Number | Integer | - | - |
| 3 | GROUP_NAME | Boudary Group Name | Integer | - | - |
| 4 | S_NODE | Sub Node ID | Integer | - | - |
| 5 |
DOF DX,DY,DZ RX,RY,RZ |
Assign the DOF to be slaved to the master node | Boolean | - | - |
- 出力データ
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | RIGD | Create Rigid Link | Json | PUT/DELETE | - |
5. APIマニュアル参照リンク
