1. Description
This component operates the Change Offset function of Shape Properties in Civil NX.
Display the section Offset currently set. Location of the Centroid of a section is set as default.
The Change Offset funtion can be found in the Civil NX main menu,select [Properties] tab > [Section Properties] group > [Section Properties] menu > Section > Change Offset
2. Grasshopper Path
[Midas] > [Properties] > [ Change Offset ]

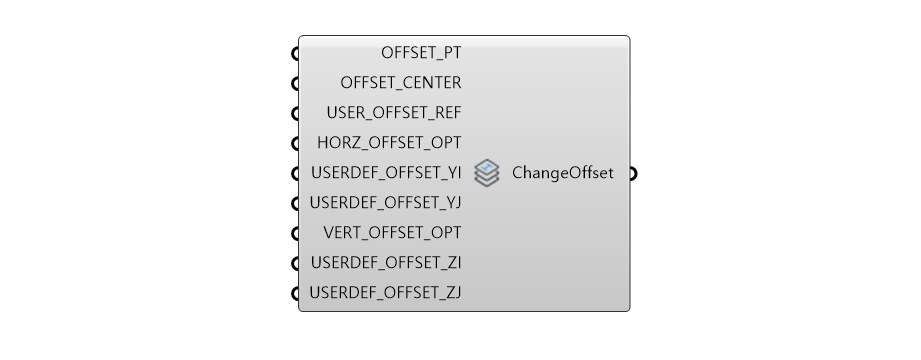

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | OFFSET_PT | Offset Direction | String | "CC" | - |
| 2 | OFFSET_CENTER |
Center Location |
Integer | 0 | - |
| 3 | USER_OFFSET _REF |
User Type Offset Reference Position | Integer | 0 | - |
| 4 | HORZ_OFFSET _OPT |
Horizontal Offset Option | Integer | 0 | - |
| 5 | USERDEF _OFFSET_YI,YJ |
Horizontal Offset Value | Real | 0 | - |
| 6 | VERT_OFFSET _OPT |
Vertical Offset Option | Integer | 0 | - |
| 7 |
VERT_OFFSET |
Vertical Offset Value | Real | 0 | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | - | Create Change Offset Data | Object | - | Section |
5. Reference API Manual Link
