このコンポーネントは、Civil NX/GEN NXの「車両韓国（Vehicles Korea）」機能を操作します。韓国で規定された車両荷重を入力します。

「車両韓国（Vehicles Korea）」機能は、Civil NX/GEN NXのメインメニューから選択できます。
[Load] tab > [Moving Load(Type)] group > [Moving Load Code] Menu > [Vehicles] Menu

[Midas] > [Moving Load] > [Vehicles Korea]

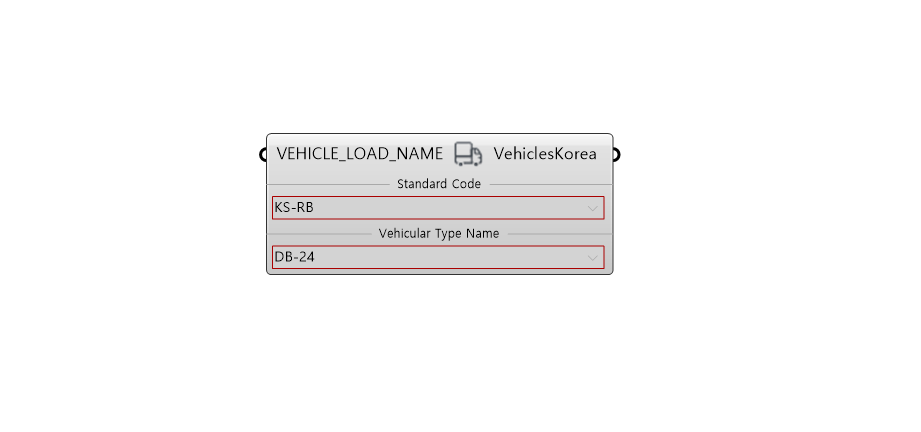

Standard Code Type 1 : Korea

(KS-RB, KS2005, KS-TR2012, KS-TR, KS-TR2004)

Index	Name	Description	Type	Default	Previous Component
1	VEHICLE_LOAD _NAME	Vehicular Load Name	String	-	-
2	Standard Code	Standard Code	Select	KS-RB	-
3	Vehicular Type Name	Vehicular Type Name	Select	-	-

Index	Command	Description	Type	Method	Next Component
1	MVHL	Create Vehicle Korea (Korea Standard Code)	Json	PUT/DELETE	-

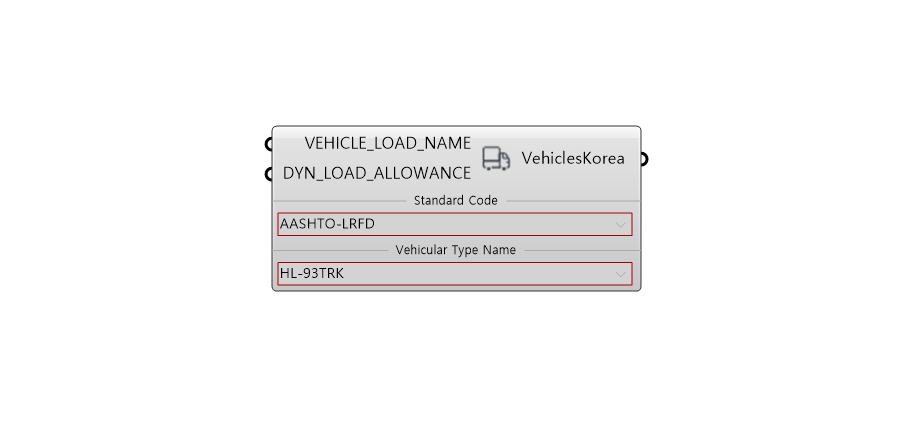

(AASHTO-STD, AASHTO-LRFD)

Index	Name	Description	Type	Default	Previous Component
1	VEHICLE_LOAD _NAME	Vehicular Load Name	String	-	-
2	DYN_LOAD _ALLOWANCE *	Dynamic Load Allowance	Real	0	-
3	Standard Code	Standard Code	Select	KS-RB	-
4	Vehicular Type Name	Vehicular Type Name	Select	-	-

Activation Condition
* Only for if Standard Code is AASHTO-LRFD

Index	Command	Description	Type	Method	Next Component
1	MVHL	Create Vehicle Korea (AASHTO Standard Code)	Json	PUT/DELETE	-

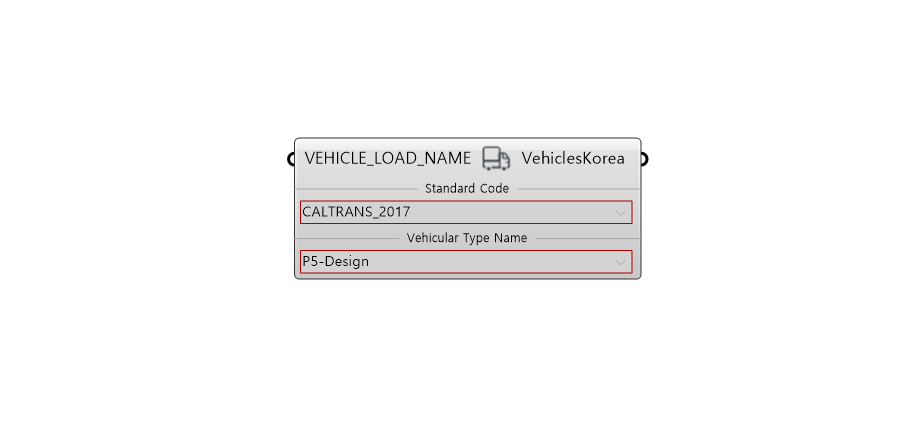

(CALTRANS_2017, CALTRANS)

Index	Name	Description	Type	Default	Previous Component
1	VEHICLE_LOAD _NAME	Vehicular Load Name	String	-	-
2	Standard Code	Standard Code	Select	KS-RB	-
3	Vehicular Type Name	Vehicular Type Name	Select	-	-

Index	Command	Description	Type	Method	Next Component
1	MVHL	Create Vehicle Korea (CALTRANS Standard Code)	Json	PUT/DELETE	-

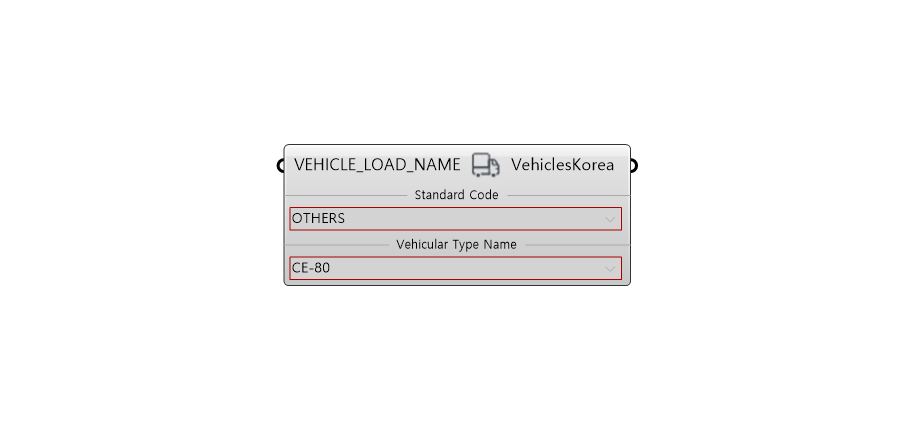

Index	Name	Description	Type	Default	Previous Component
1	VEHICLE_LOAD _NAME	Vehicular Load Name	String	-	-
2	Standard Code	Standard Code	Select	KS-RB	-
3	Vehicular Type Name	Vehicular Type Name	Select	-	-

Index	Command	Description	Type	Method	Next Component
1	MVHL	Create Vehicle Korea (Ohters Standard Code)	Json	PUT/DELETE	-
