1. 説明
このコンポーネントは、CIVIL NXのVehicles EUROCODE機能を操作します。
EUROCODEで規定された車両荷重を入力します。
Vehicles EUROCODE機能は、CIVIL NXのメインメニューから選択できます。
[Load] tab > [Moving Load(Type)] group > [Moving Load Code] Menu > [Vehicles] Menu
2. Grasshopperパス
[Midas] > [Moving Load] > [Vehicles EUROCODE]
Fatugue Load Model 1

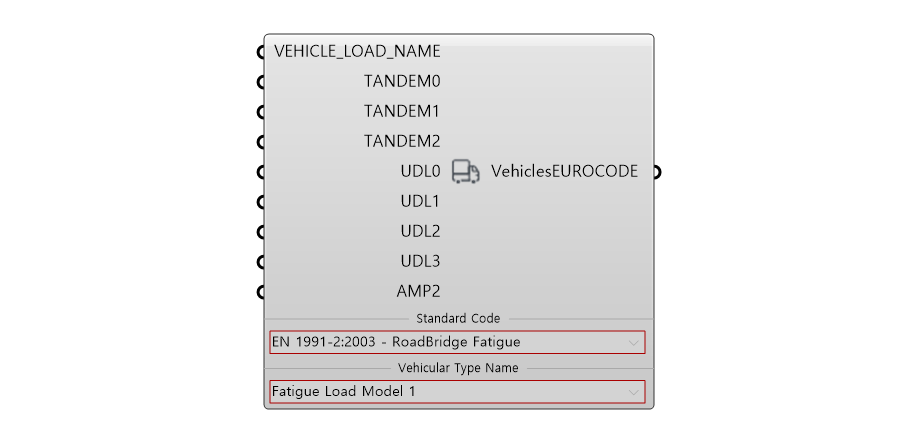

3. コンポーネント画像
4. 入出力値
- 入力データ
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 |
VEHICLE_LOAD _NAME |
Vehicular Load Name | String | - | - |
| 2 |
TANDEM 0~2 |
Tandem System Adjustment Factor | Real | 1.0 | - |
| 3 |
UDL 0~3 |
UDL System Adjustment Factor | Real | 1.0 | - |
| 4 | AMP2 | Dynamic Amplification Factor | Real | 1.0 | - |
- 出力データ
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MVHL | Create Vehicles EUROCODE (EN 1991-2:2003-RaodBridge Fatigue -Load Model 1) | Json | PUT/DELETE | - |
Fatugue Load Model 2

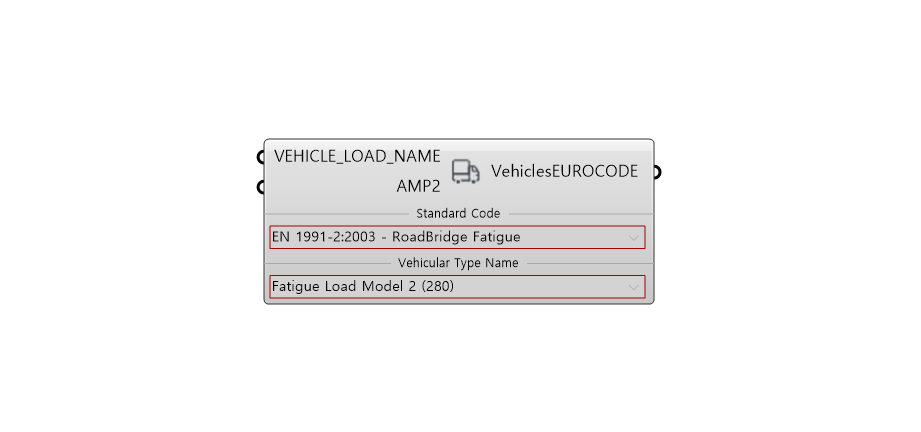

3. コンポーネント画像
4.入出力値
- 入力データ
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 |
VEHICLE_LOAD _NAME |
Vehicular Load Name | String | - | - |
| 2 | AMP2 | Dynamic Amplification Factor | Real | 1.0 | - |
| 3 | Vehicular Type Name |
Vehicular Type Name
· 280 |
Select |
Fatigue Load Model 2 (280) |
- |
- 出力データ
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MVHL | Create Vehicles EUROCODE (EN 1991-2:2003-RaodBridge Fatigue -Load Model 2) | Json | PUT/DELETE | - |
Fatugue Load Model 3

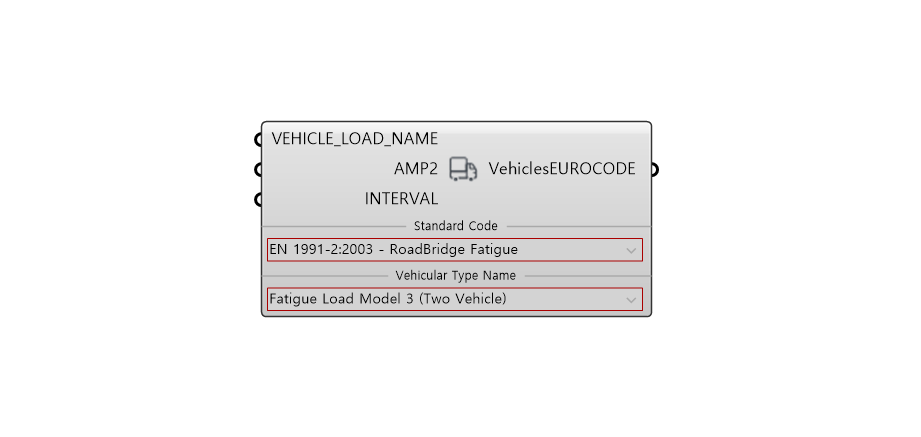

3. コンポーネント画像
4. 入出力値
- 入力データ
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 |
VEHICLE_LOAD _NAME |
Vehicular Load Name | String | - | - |
| 2 | AMP2 | Dynamic Amplification Factor | Real | 1.0 | - |
| 3 | Vehicular Type Name |
Vehicular Type Name
· One Vehicle |
Select |
Fatigue Load Model 3 (One Vehicle) |
- |
| 4 | INTERVAL * |
Two Vehicle Interval |
Real | - | - |
Activation Condition
* Only for if Vehicular Type Name is Two Vehicle
- 出力データ
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MVHL | Create Vehicles EUROCODE (EN 1991-2:2003-RaodBridge Fatigue -Load Model 3) | Json | PUT/DELETE | - |
Fatugue Load Model 4
3. コンポーネント画像
4. 入出力値
- 入力データ
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 |
VEHICLE_LOAD _NAME |
Vehicular Load Name | String | - | - |
| 2 | AMP2 | Dynamic Amplification Factor | Real | 1.0 | - |
| 3 | Vehicular Type Name |
Vehicular Type Name
· 200 |
Select | Fatigue Load Model 4 (200) | - |
- 出力データ
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MVHL | Create Vehicles EUROCODE (EN 1991-2:2003-RaodBridge Fatigue -Load Model 4) | Json | PUT/DELETE | - |
5. APIマニュアル参照リンク
