Vehicles EUROCODE(EN 1991-2:2003-Rail Traffic Load)

1. 概要

This component operates the Vehicles EUROCODE function in Civil NX.
Enter vehicle loads specified in EUROCODE.

The Vehicles EUROCODE function can be found in the Civil NX main menu,select
[Load] tab > [Moving Load(Type)] group > [Moving Load Code] Menu > [Vehicles] Menu

2. Grasshopperのパス



[Midas] > [Moving Load] > [Vehicles EUROCODE]



Load Model 71

3. コンポーネント画像

4. 入力／出力値



• 入力データ

Index	Name	Description	Type	Default	Previous Component
1	VEHICLE_LOAD _NAME	Vehicular Load Name	String	-	-
2	V_LOAD _FACTOR	Eccentricity of Lateral Displacement of Vertival Loads Factor	Real	1.0	-
3	DIST_RAIL _SUPPORT	Distance between Rail Support Points	Real	0.75	-
4	ECCEN_VERT _LOAD_VALUE	Eccentricity of Lateral Displacement of Vertical Loads	Real	0	-
5	Consider Longitudinal Distribution of Point Loads	Consider Longitudinal Distribution of Point Loads	Select	false	-
6	Eccentricity of Lateral Displacement of Vertical Loads	Eccentricity of Lateral Displacement of Vertical Loads	Select	false	-

Load Model SW/0

3. コンポーネント画像

4. 入力／出力値



• 入力データ

Index	Name	Description	Type	Default	Previous Component
1	VEHICLE_LOAD _NAME	Vehicular Load Name	String	-	-
2	V_LOAD _FACTOR	Eccentricity of Lateral Displacement of Vertival Loads Factor	Real	1.0	-
3	DIST_RAIL _SUPPORT	Distance between Rail Support Points	Real	0.75	-
4	ECCEN_VERT _LOAD_VALUE	Eccentricity of Lateral Displacement of Vertical Loads	Real	0	-
5	Consider Longitudinal Distribution of Point Loads	Consider Longitudinal Distribution of Point Loads	Select	false	-
6	Eccentricity of Lateral Displacement of Vertical Loads	Eccentricity of Lateral Displacement of Vertical Loads	Select	false	-

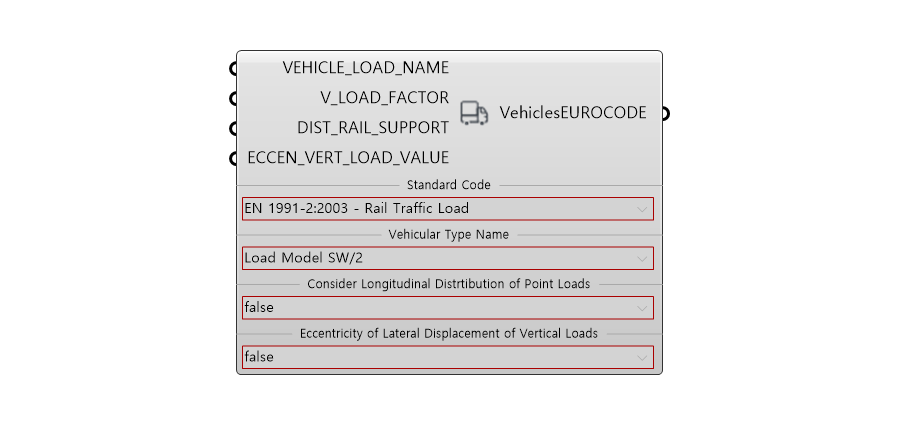

Load Model SW/2

3. コンポーネント画像

4. 入力／出力値



• 入力データ

Index	Name	Description	Type	Default	Previous Component
1	VEHICLE_LOAD _NAME	Vehicular Load Name	String	-	-
2	V_LOAD _FACTOR	Eccentricity of Lateral Displacement of Vertival Loads Factor	Real	1.0	-
3	DIST_RAIL _SUPPORT	Distance between Rail Support Points	Real	0.75	-
4	ECCEN_VERT _LOAD_VALUE	Eccentricity of Lateral Displacement of Vertical Loads	Real	0	-
5	Consider Longitudinal Distribution of Point Loads	Consider Longitudinal Distribution of Point Loads	Select	false	-
6	Eccentricity of Lateral Displacement of Vertical Loads	Eccentricity of Lateral Displacement of Vertical Loads	Select	false	-

Unloaded Train

3. コンポーネント画像

4. 入力／出力値



• 入力データ

Index	Name	Description	Type	Default	Previous Component
1	VEHICLE_LOAD _NAME	Vehicular Load Name	String	-	-
2	V_LOAD _FACTOR	Eccentricity of Lateral Displacement of Vertival Loads Factor	Real	1.0	-
3	DIST_RAIL _SUPPORT	Distance between Rail Support Points	Real	0.75	-
4	ECCEN_VERT _LOAD_VALUE	Eccentricity of Lateral Displacement of Vertical Loads	Real	0	-
5	Consider Longitudinal Distribution of Point Loads	Consider Longitudinal Distribution of Point Loads	Select	false	-
6	Eccentricity of Lateral Displacement of Vertical Loads	Eccentricity of Lateral Displacement of Vertical Loads	Select	false	-

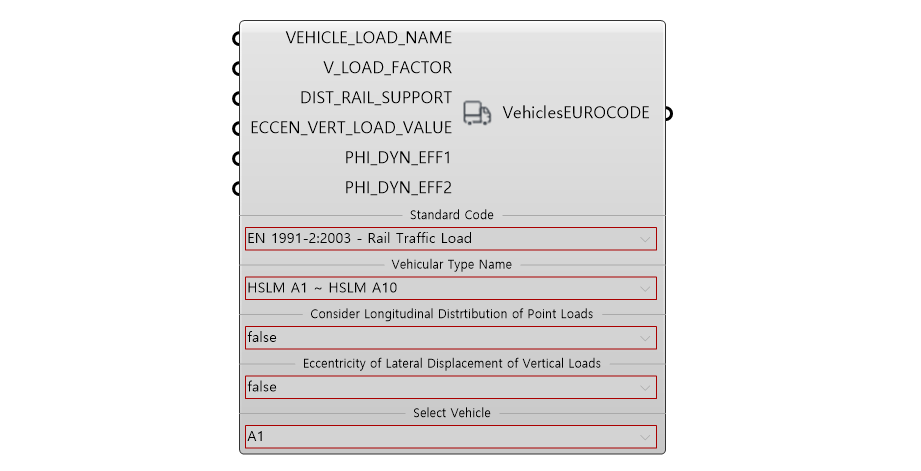

HSLM A1 ~ HSLM A10

3. コンポーネント画像

4. 入力／出力値



• 入力データ

Index	Name	Description	Type	Default	Previous Component
1	VEHICLE_LOAD _NAME	Vehicular Load Name	String	-	-
2	V_LOAD _FACTOR	Eccentricity of Lateral Displacement of Vertival Loads Factor	Real	1.0	-
3	DIST_RAIL _SUPPORT	Distance between Rail Support Points	Real	0.75	-
4	ECCEN_VERT _LOAD_VALUE	Eccentricity of Lateral Displacement of Vertical Loads	Real	0	-
5	PHI_DYN_EFF1	Dynamic Effect(Φ')	Real	0	-
6	PHI_DYN_EFF2	Dynamic Effect(Φ'')	Real	0	-
7	Consider Longitudinal Distribution of Point Loads	Consider Longitudinal Distribution of Point Loads	Select	false	-
8	Eccentricity of Lateral Displacement of Vertical Loads	Eccentricity of Lateral Displacement of Vertical Loads	Select	false	-
9	Select Vehicle	Select Vehicle	Select	A1	-

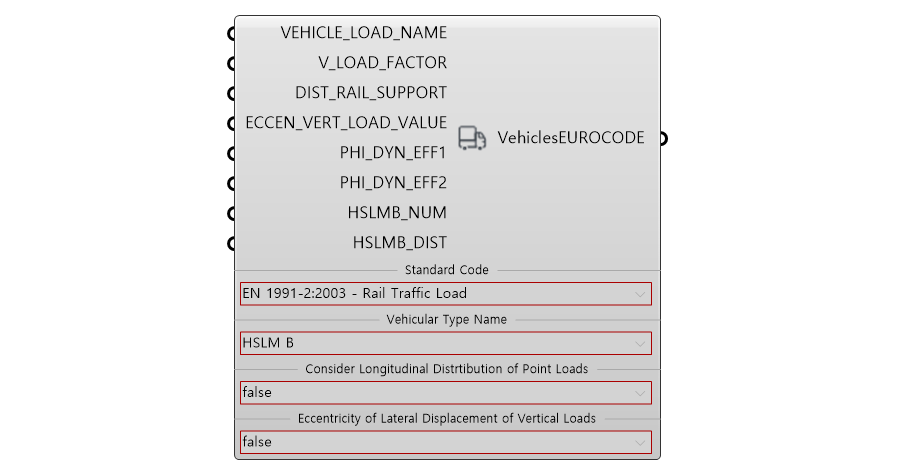

HSLM B

3. コンポーネント画像

4. 入力／出力値



• 入力データ

Index	Name	Description	Type	Default	Previous Component
1	VEHICLE_LOAD _NAME	Vehicular Load Name	String	-	-
2	V_LOAD _FACTOR	Eccentricity of Lateral Displacement of Vertival Loads Factor	Real	1.0	-
3	DIST_RAIL _SUPPORT	Distance between Rail Support Points	Real	0.75	-
4	ECCEN_VERT _LOAD_VALUE	Eccentricity of Lateral Displacement of Vertical Loads	Real	0	-
5	PHI_DYN_EFF1	Dynamic Effect(Φ')	Real	0	-
6	PHI_DYN_EFF2	Dynamic Effect(Φ'')	Real	0	-
7	HSLMB_NUM	Number of Point Forces (N)	Interger	-	-
8	HSLMB_DIST	Distance between the Loads (D)	Real	-	-
9	Consider Longitudinal Distribution of Point Loads	Consider Longitudinal Distribution of Point Loads	Select	false	-
10	Eccentricity of Lateral Displacement of Vertical Loads	Eccentricity of Lateral Displacement of Vertical Loads	Select	false	-
