Tendon Profile

1. 概要

「このコンポーネントは、Civil NX/GEN NXの『3D Spline Tendon Profile（3Dスプライン緊張材プロファイル）』機能を操作します。 要素の長さ方向に沿った緊張材の配置形状を定義します。緊張材のプロファイルは、緊張材独自の座標系を基準として作成し、その後、要素に対して相対的に配置します。」

「3D Spline Tendon Profile（3Dスプライン緊張材プロファイル）機能は、Civil NX/GEN NXのメインメニューから選択します。
[Load] Tab > [Prestress] Tab > [Prestress Loads] Group > [Tendon Profile] Menu > [Tendon Profile]

2. Grasshopper パス



[Midas] > [Prestress] > [3D Spline Tendon Profile]



Case 1 - Straight Type

3. コンポーネント画像


4. 入力／出力値



  • 入力データ
Index Name Description Type Default

Previous
Component

1 KEY Tendon Profile ID Integer - -
2 NAME Tendon Name String - -
3 TDN_PROP Tendon Proerty No. Integer - -
4 TDN_GRUP Tendon Group No. Integer - -
5 ELEM Assigned Element No. Integer - -
6 CNT * No. of Tendons Integer - -
7 BELENG Straight Length of Tendon - Begin Real 0 -
8 ELENG Straight Length of Tendon - End Real 0 -
9 BLEN ** Transfer Length - Begin Real 0 -
10 ELEN ** Transfer Length - End Real 0 -
11 DeBondBLEN Debonded Length - Begin Real 0 -
12 DeBondELEN Debonded Length - End Real 0 -
13 XAR_ANGLE x Axis Rot.Angle Real 0 -
14 IP Profile Insertion Point Object 0,0,0 Point
15 VEC *** Vector
(Only x,y Direction) 		Object 0,0 Vector
16 GR_ANGLE Grad.Rot Angle Real 0 -
17 PROF 3D Profile Object - Tendon Profile Item
18 Typical Tendon Typical Tendon Select false -
19 Transfer Length Option Transfer Length Option Select User Defined Length -
20 Projection Projection Select false -
21 x Axis Direction Type Axis Direction Type

· x Direction : "X"
· y Direction : "Y"
· Vector Direction : "VECTOR"

Select X -
22 Grad. Rot. Angle Type Grad. Rot. Angle Type

· x axis : "X"
· y axis : "Y"

Select Y -



Activation Condition
* Only for if Typical Tendon is true
** Only for if Transfer Length Option is Auto Calc
 *** Only for if x Axis Direction Type is VECTOR

  • 出力データ
Index Command Description Type Method

Next
Component

1 TDNA Create 3D Spline Tendon Profile
(Straight Type) 		Json PUT/DELETE -



Case 2 - Curve Type

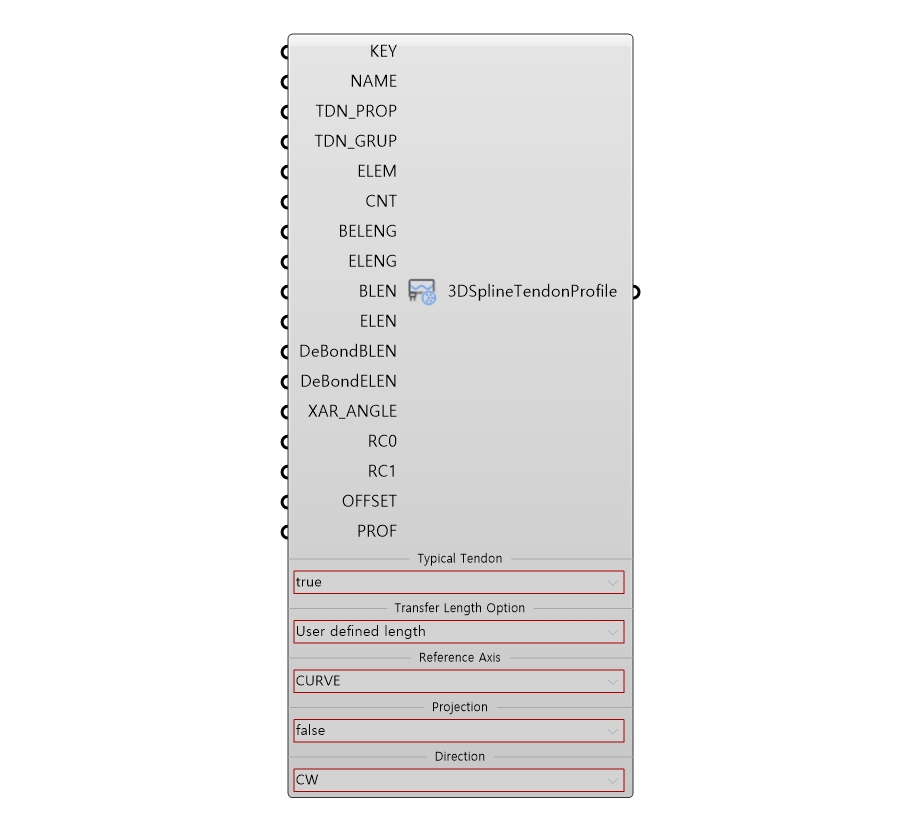

3. コンポーネント画像


4. 入力／出力値



  • 入力データ
Index Name Description Type Default

Previous
Component

1 KEY Tendon Profile ID Integer - -
2 NAME Tendon Name String - -
3 TDN_PROP Tendon Proerty No. Integer - -
4 TDN_GRUP Tendon Group No. Integer - -
5 ELEM Assigned Element No. Integer - -
6 CNT * No. of Tendons Integer - -
7 BELENG Straight Length of Tendon - Begin Real 0 -
8 ELENG Straight Length of Tendon - End Real 0 -
9 BLEN ** Transfer Length - Begin Real 0 -
10 ELEN ** Transfer Length - End Real 0 -
11 DeBondBLEN Debonded Length - Begin Real 0 -
12 DeBondELEN Debonded Length - End Real 0 -
13 XAR_ANGLE x Axis Rot.Angle Real 0 -
14 RC0,RC1 Radius Center

· x Coordinate : "RC0"
· y Coordinate : "RC1"

Real 0 -
16 GR_ANGLE Grad.Rot Angle Real 0 -
17 PROF 3D Profile Object - Tendon Profile Item
18 Typical Tendon Typical Tendon Select false -
19 Transfer Length Option Transfer Length Option Select User Defined Length -
20 Projection Projection Select false -
21 Direction  Direction

· Clockwise : "CW"
· Counter-Clockwise : "CCW"

Select CW -
22 Grad. Rot. Angle Type Grad. Rot. Angle Type

· x axis : "X"
· y axis : "Y"

Select Y -



Activation Condition
* Only for if Typical Tendon is true
** Only for if Transfer Length Option is Auto Calc

  • 出力データ
Index Command Description Type Method

Next
Component

1 TDNA Create 3D Spline Tendon Profile
(Curve Type) 		Json PUT/DELETE -



Case 3 - Element Type

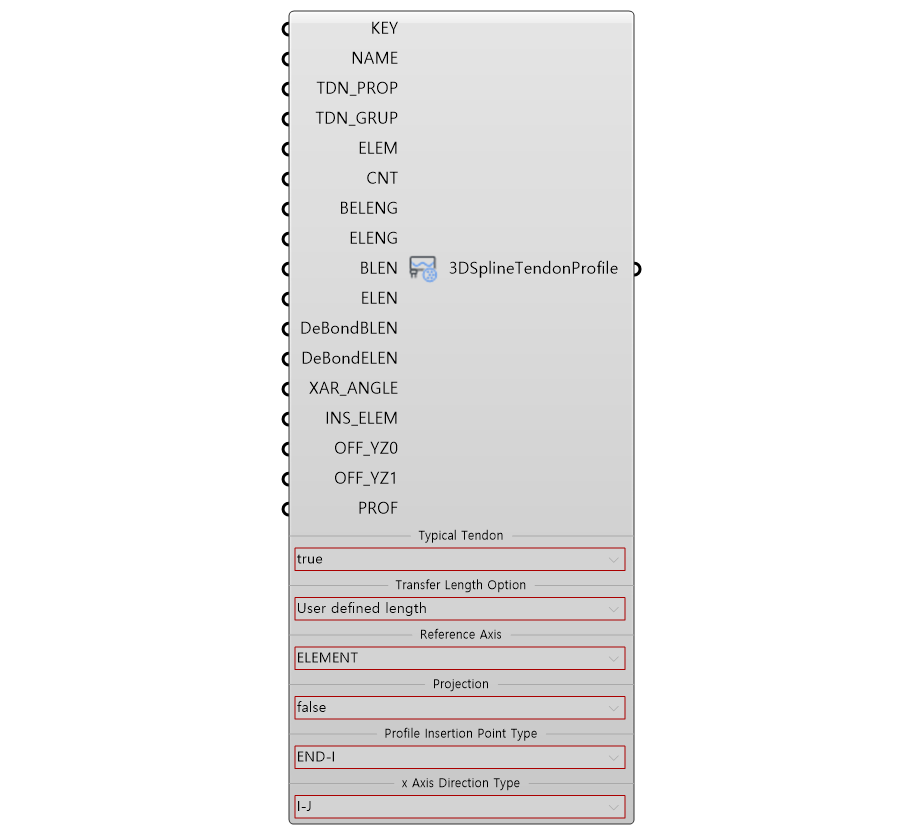

3. コンポーネント画像


4. 入力／出力値



  • 入力データ
Index Name Description Type Default

Previous
Component

1 KEY Tendon Profile ID Integer - -
2 NAME Tendon Name String - -
3 TDN_PROP Tendon Proerty No. Integer - -
4 TDN_GRUP Tendon Group No. Integer - -
5 ELEM Assigned Element No. Integer - -
6 CNT * No. of Tendons Integer - -
7 BELENG Straight Length of Tendon - Begin Real 0 -
8 ELENG Straight Length of Tendon - End Real 0 -
9 BLEN ** Transfer Length - Begin Real 0 -
10 ELEN ** Transfer Length - End Real 0 -
11 DeBondBLEN Debonded Length - Begin Real 0 -
12 DeBondELEN Debonded Length - End Real 0 -
13 XAR_ANGLE x Axis Rot.Angle Real 0 -
14 INS_ELEM Profile Insertion Point Element No. Integer - -
14 OFF_YZ0~YZ1 Offset

· y distance : "YZ0"
· z distance : "YZ1"

Real 0 -
16 GR_ANGLE Grad.Rot Angle Real 0 -
17 PROF 3D Profile Object - Tendon Profile Item
18 Typical Tendon Typical Tendon Select false -
19 Transfer Length Option Transfer Length Option Select User Defined Length -
20 Projection Projection Select false -
21 Profile Insertion Point Type Profile Insertion Point Type Select END-I -
22 x Axis Direction Type x Axis Direction Type

· Direction for I to J : "I-J"
· Direction for J to I : "J-I"

Select I-J -



Activation Condition
* Only for if Typical Tendon is true
** Only for if Transfer Length Option is Auto Calc

  • 出力データ
Index Command Description Type Method

Next
Component

1 TDNA Create 3D Spline Tendon Profile
(Element Type) 		Json PUT/DELETE -





5. APIマニュアル参照リンク

Tendon Profile



1. Description

This component operates the 3D Spline Tendon Profile function in Civil NX.
Define a tendon profile along the length of elements. Create the tendon profile relative to its own coordinate system, which will then be inserted relative to the elements.

The 3D Spline Tendon Profile function can be found in the Civil NX main menu,select
[Load] Tab > [Prestress] Tab > [Prestress Loads] Group > [Tendon Profile] Menu > [Tendon Profile]

2. Grasshopper Path



[Midas] > [Prestress] > [3D Spline Tendon Profile]



Case 1 - Straight Type

3. Component Image


4. Input/Output Value



  • Input Data
Index Name Description Type Default

Previous
Component
1 KEY Tendon Profile ID Integer - -
2 NAME Tendon Name String - -
3 TDN_PROP Tendon Proerty No. Integer - -
4 TDN_GRUP Tendon Group No. Integer - -
5 ELEM Assigned Element No. Integer - -
6 CNT * No. of Tendons Integer - -
7 BELENG Straight Length of Tendon - Begin Real 0 -
8 ELENG Straight Length of Tendon - End Real 0 -
9 BLEN ** Transfer Length - Begin Real 0 -
10 ELEN ** Transfer Length - End Real 0 -
11 DeBondBLEN Debonded Length - Begin Real 0 -
12 DeBondELEN Debonded Length - End Real 0 -
13 XAR_ANGLE x Axis Rot.Angle Real 0 -
14 IP Profile Insertion Point Object 0,0,0 Point
15 VEC *** Vector
(Only x,y Direction)		 Object 0,0 Vector
16 GR_ANGLE Grad.Rot Angle Real 0 -
17 PROF 3D Profile Object - Tendon Profile Item
18 Typical Tendon Typical Tendon Select false -
19 Transfer Length Option Transfer Length Option Select User Defined Length -
20 Projection Projection Select false -
21 x Axis Direction Type Axis Direction Type

· x Direction : "X"
· y Direction : "Y"
· Vector Direction : "VECTOR"

 Select X -
22 Grad. Rot. Angle Type Grad. Rot. Angle Type

· x axis : "X"
· y axis : "Y"

 Select Y -



Activation Condition
* Only for if Typical Tendon is true
** Only for if Transfer Length Option is Auto Calc
 *** Only for if x Axis Direction Type is VECTOR

  • Output Data
Index Command Description Type Method

Next
Component
1 TDNA Create 3D Spline Tendon Profile
(Straight Type)		 Json PUT/DELETE -



Case 2 - Curve Type

3. Component Image


4. Input/Output Value



  • Input Data
Index Name Description Type Default

Previous
Component
1 KEY Tendon Profile ID Integer - -
2 NAME Tendon Name String - -
3 TDN_PROP Tendon Proerty No. Integer - -
4 TDN_GRUP Tendon Group No. Integer - -
5 ELEM Assigned Element No. Integer - -
6 CNT * No. of Tendons Integer - -
7 BELENG Straight Length of Tendon - Begin Real 0 -
8 ELENG Straight Length of Tendon - End Real 0 -
9 BLEN ** Transfer Length - Begin Real 0 -
10 ELEN ** Transfer Length - End Real 0 -
11 DeBondBLEN Debonded Length - Begin Real 0 -
12 DeBondELEN Debonded Length - End Real 0 -
13 XAR_ANGLE x Axis Rot.Angle Real 0 -
14 RC0,RC1 Radius Center

· x Coordinate : "RC0"
· y Coordinate : "RC1"

 Real 0 -
16 GR_ANGLE Grad.Rot Angle Real 0 -
17 PROF 3D Profile Object - Tendon Profile Item
18 Typical Tendon Typical Tendon Select false -
19 Transfer Length Option Transfer Length Option Select User Defined Length -
20 Projection Projection Select false -
21 Direction  Direction

· Clockwise : "CW"
· Counter-Clockwise : "CCW"

 Select CW -
22 Grad. Rot. Angle Type Grad. Rot. Angle Type

· x axis : "X"
· y axis : "Y"

 Select Y -



Activation Condition
* Only for if Typical Tendon is true
** Only for if Transfer Length Option is Auto Calc

  • Output Data
Index Command Description Type Method

Next
Component
1 TDNA Create 3D Spline Tendon Profile
(Curve Type)		 Json PUT/DELETE -



Case 3 - Element Type

3. Component Image


4. Input/Output Value



  • Input Data
Index Name Description Type Default

Previous
Component
1 KEY Tendon Profile ID Integer - -
2 NAME Tendon Name String - -
3 TDN_PROP Tendon Proerty No. Integer - -
4 TDN_GRUP Tendon Group No. Integer - -
5 ELEM Assigned Element No. Integer - -
6 CNT * No. of Tendons Integer - -
7 BELENG Straight Length of Tendon - Begin Real 0 -
8 ELENG Straight Length of Tendon - End Real 0 -
9 BLEN ** Transfer Length - Begin Real 0 -
10 ELEN ** Transfer Length - End Real 0 -
11 DeBondBLEN Debonded Length - Begin Real 0 -
12 DeBondELEN Debonded Length - End Real 0 -
13 XAR_ANGLE x Axis Rot.Angle Real 0 -
14 INS_ELEM Profile Insertion Point Element No. Integer - -
14 OFF_YZ0~YZ1 Offset

· y distance : "YZ0"
· z distance : "YZ1"

 Real 0 -
16 GR_ANGLE Grad.Rot Angle Real 0 -
17 PROF 3D Profile Object - Tendon Profile Item
18 Typical Tendon Typical Tendon Select false -
19 Transfer Length Option Transfer Length Option Select User Defined Length -
20 Projection Projection Select false -
21 Profile Insertion Point Type Profile Insertion Point Type Select END-I -
22 x Axis Direction Type x Axis Direction Type

· Direction for I to J : "I-J"
· Direction for J to I : "J-I"

 Select I-J -



Activation Condition
* Only for if Typical Tendon is true
** Only for if Transfer Length Option is Auto Calc

  • Output Data
Index Command Description Type Method

Next
Component
1 TDNA Create 3D Spline Tendon Profile
(Element Type)		 Json PUT/DELETE -
