1. Description

This component generates SStiffener Shape of Composite Steel Shape(Type1) function in the Civil NX.
Chose the stiffener to be positioned on the left or right or both sides of the web of Steel-I girder.

The Stiffener Shape of Composite Steel Shape(Type1) funtion can be found in the Civil NX main menu,select [Properties] tab > [Section Properties] group > [Section Properties] menu > Section > [Composite] tab > Stiffener

2. Grasshopper Path

[Midas] > [Properties] > [Stiffener Shape of Composite Steel Shape(Type1)]

Case 1 - Flat Shape

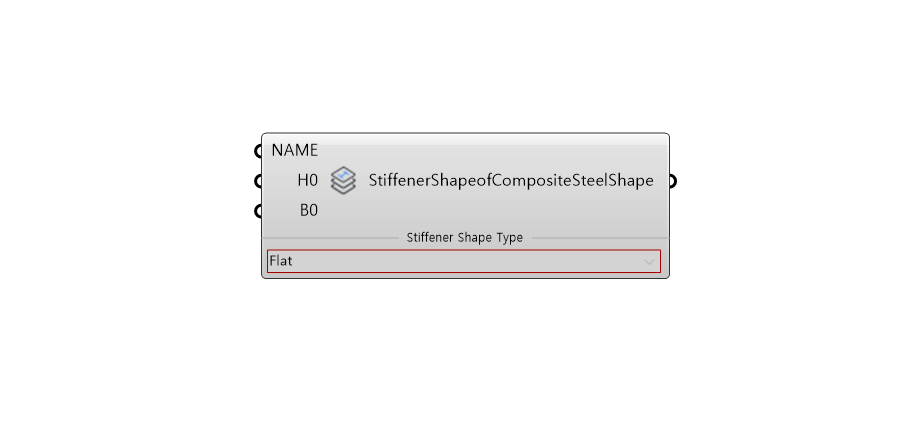

3. Component Image

4. Input/Output Value

Input Data

Index	Name	Description	Type	Default	Previous Component
1	NAME	Stiffener Name	String	-	-
2	H0	Height	Real	-	-
3	B0	Width	Real	-	-

Output Data

Index	Command	Description	Type	Method	Next Component
1	-	Create Stiffener Shape of Composite Steel Shape(Type1) Data (Flat Shape)	Object	-	Stiffener of Composite Steel Shape Type1

Case 2 - Tee Shape

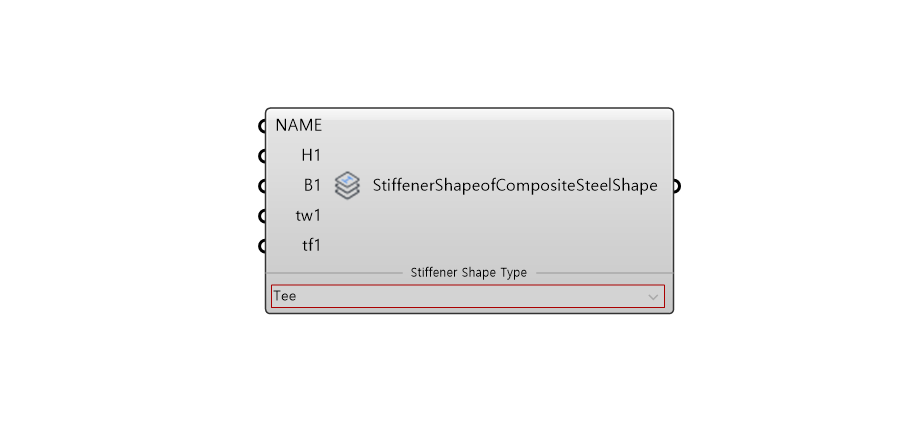

3. Component Image

4. Input/Output Value

Input Data

Index	Name	Description	Type	Default	Previous Component
1	NAME	Stiffener Name	String	-	-
2	H1	Height	Real	-	-
3	B1	Width	Real	-	-
4	tw1	Web Thick	Real	-	-
5	tf1	Flange Thick	Real	-	-

Output Data

Index	Command	Description	Type	Method	Next Component
1	-	Create Stiffener Shape of Composite Steel Shape(Type1) Data (Tee Shape)	Object	-	Stiffener of Composite Steel Shape Type1

Case 3 - U-Rib Shape

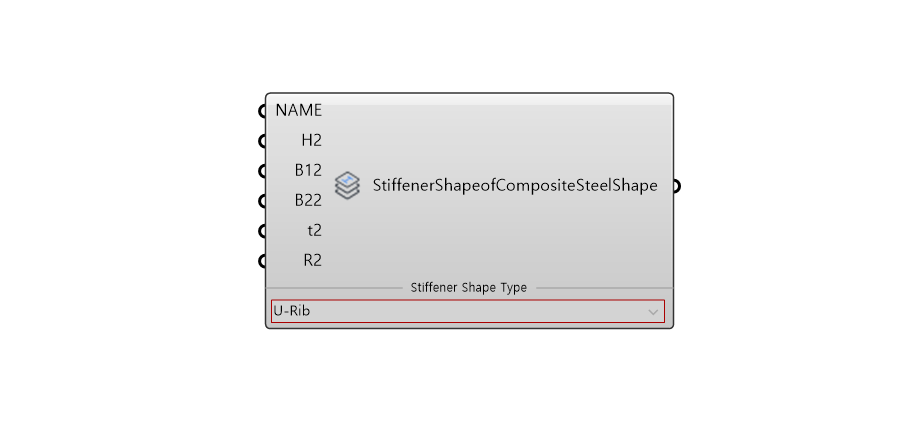

3. Component Image

4. Input/Output Value

Input Data

Index	Name	Description	Type	Default	Previous Component
1	NAME	Stiffener Name	String	-	-
2	H2	Height	Real	-	-
3	B12	Top Width	Real	-	-
4	B22	Bottom Width	Real	-	-
5	t2	Web Thick	Real	-	-
6	R2	Flange Thick	Real	-	-

Output Data

Index	Command	Description	Type	Method	Next Component
1	-	Create Stiffener Shape of Composite Steel Shape(Type1) Data (U-Rib Shape)	Object	-	Stiffener of Composite Steel Shape Type1

5. Reference API Manual Link

Section Properties - Composite - Steel
