1. 説明
このコンポーネントは、CIVIL NXの「荷重組合せの組み合わせ」機能を操作します。
複数の荷重ケースを含む荷重組合せを、単一の静的荷重ケースに変換します。
「Combinations of Using Load Combinations」機能は、CIVIL NXのメインメニューから選択できます。
[Load] Tab > [Static Loads] Tab > [Create Load Cases] Group > [Using Load Combinations] Menu
2. Grasshopper Path
[Midas] > [Static Loads] > [Combinations of Using Load Combinations]

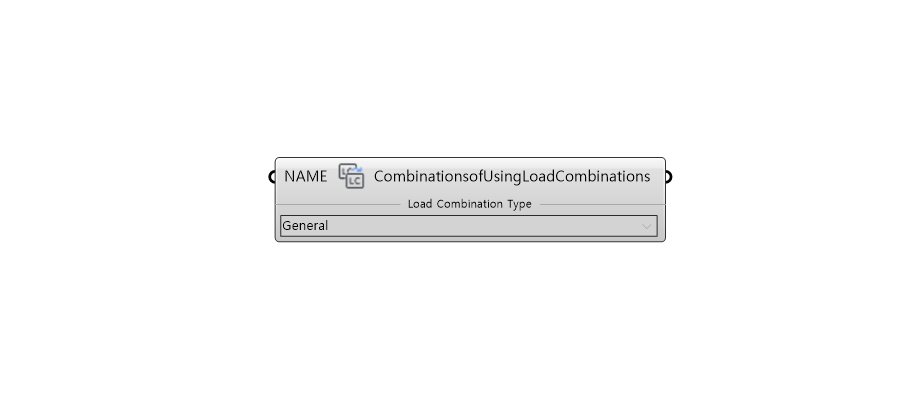

3. コンポーネント画像
4. 入出力値
- 入力データ
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | NAME | Load Combination Name | String | - | - |
| 2 | Load Combination Type | Select | General | - | |
- 出力データ
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | - | Create Combinations of Using Load Combinations | Object | - | Using Load Combinations |
5. APIマニュアル参照リンク
