1. 概要
This component operates the Vehicles Classes function in Civil NX.
Enter vehicle load classes for moving load analysis.
The Vehicles Classes function can be found in the Civil NX main menu,select
[Load] Tab > [Moving Load] Tab > [Advanced] Group > [Vehicle Classes] Menu
2. Grasshopperパス
[Midas] > [Moving Load] > [Vehicles Classes]

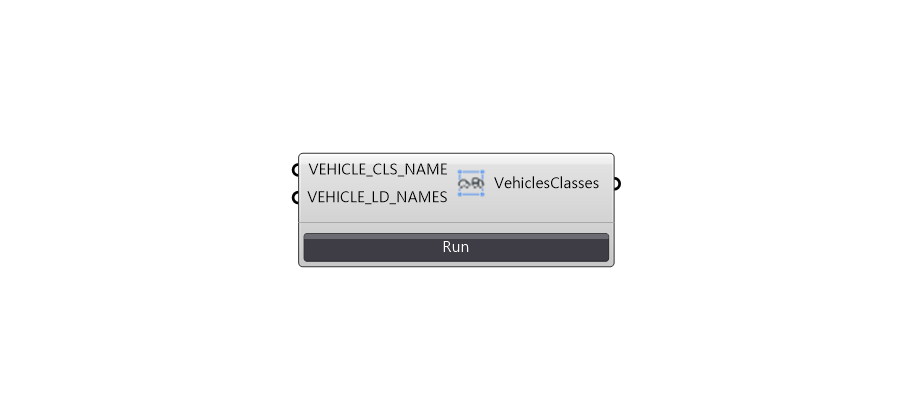

3. コンポーネント画像
4. 入力／出力値
- 入力データ
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 |
VEHICLE_CLS _NAME |
Vehicle Class Name | String | - | - |
| 2 |
VEHICLE_LD _NAMES |
Selected Vehicle List | String | - | - |
- 出力データ
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MVHC | Create Vehicles Classes | Json | PUT/DELETE | - |
5. APIマニュアル参照リンク
