1. Description
This component converts the PSC Value Shape of Civil NX into data for the Shape of the Section component.
The PSC Value Shape in the Section Propeties function can be found in the Civil NX main menu,select [Properties] tab > [Section Properties] group > [Section Properties] menu > Section > PSC
2. Grasshopper Path
[Midas] > [Properties] > [ PSC Value Shape ]
Type 1 : Auto Calc Section Properties
3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | Outer Point | Outer Dimension | Object | - | Point |
| 2 | Inner Point | Inner Dimension | Object | - | Point |
| 3 | vSIZE | Params for Design | Object | - | Param for Design |
| 4 | SHEAR_CHECK | Auto Shear Check Option | Object | - | Shear Check of PSC Shape |
| 5 | WEB_THICK_FOR_SHEAR | Web Thick for Shear Option | Object | - | Web Thick. for Shear of PSC Shape |
| 6 | QY_FOR_SHEAR | Qy for Shear | Object | - | PSC Value Qy |
| 7 | WEB_THICK0 * | Web Thick. Value for Torsion | Real | 0 | - |
| 8 | Calculation options | Section Properties Calculation Options | Select | true | - |
| 9 | Web Thick. Check for Torsion | Web Thick. Check for Torsion Option | Select | false | - |
| 10 | Consider Warping Effect | Consider Warping Effect Option | Select | false | - |
Activation Condition
* Only for if Web Thick. Check for Torsion options is false
Type 2 : User Section Properties

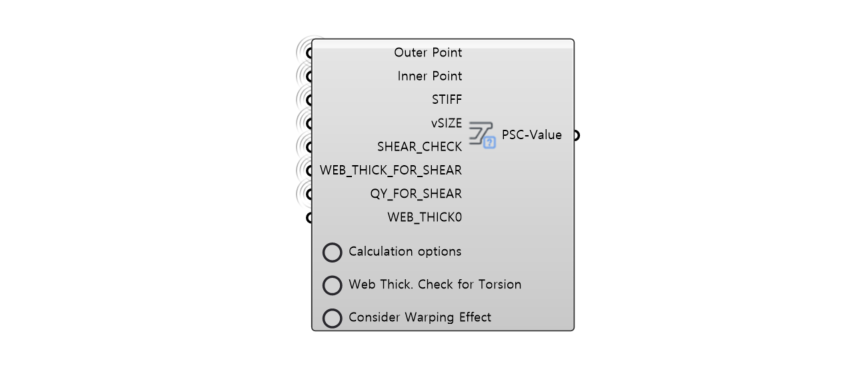

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | Outer Point | Outer Dimension | Object | - | Point |
| 2 | Inner Point | Inner Dimension | Object | - | Point |
| 3 | STIFF ** | User Section Properties | Object | - | User Section Properties |
| 4 | vSIZE | Params for Design | Object | - | Param for Design |
| 5 | SHEAR_CHECK | Auto Shear Check Option | Object | - | Shear Check of PSC Shape |
| 6 | WEB_THICK_FOR_SHEAR | Web Thick for Shear Option | Object | - | Web Thick. for Shear of PSC Shape |
| 7 | QY_FOR_SHEAR | Qy for Shear | Object | - | PSC Value Qy |
| 8 | WEB_THICK0 * | Web Thick. Value for Torsion | Real | 0 | - |
| 9 | Calculation options | Section Properties Calculation Options | Select | true | - |
| 10 | Web Thick. Check for Torsion | Web Thick. Check for Torsion Option | Select | false | - |
| 11 | Consider Warping Effect | Consider Warping Effect Option | Select | false | - |
Activation Condition
* Only for if Web Thick. Check for Torsion options is false
** Only for if Calculation Options is false
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | SECT | Create Value Shape Data | Object | - | Section |
| Tapered Shape |
5. Reference API Manual Link
