1. Description
This component operates the Wind Pressure(User) function in Gen NX.
This component calculates story levels based on ground level and inputs wind pressure data within the Wind Loads User Type.
The Wind Pressure(User) function can be found in the Gen NX main menu, select [Load] tab > [Static Loads] group > [Lateral] group > [Wind Loads]
2. Grasshopper Path
[Midas] > [Static Loads] > [Wind Pressure(User)]

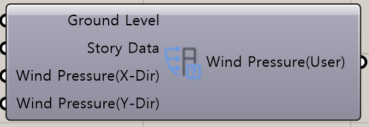

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | Ground Level | Ground Level | Real | - | - |
| 2 | Story Data | Story Data | Object | - | Story Data |
| 3 | Wind Pressure(X-Dir) | X-Dir Value |
Array[ Real, Real] |
0 | - |
| 4 |
Wind Pressure (Y-Dir) |
Y-Dir Value |
Array[ Real, Real] |
0 | - |
- Output Data
| Index | Command | Description | Type |
Next Component |
|
|---|---|---|---|---|---|
| 1 | WIND | Wind Pressure(User) | Json | Wind Loads |
