1. Update Item
1) New Features Added
- Plate Stress
- Plane Force
- Vibration Mode Shape
- Concurrent Joint Force Group
- Concurrent Reaction Group
2. Description
1) New Components Added

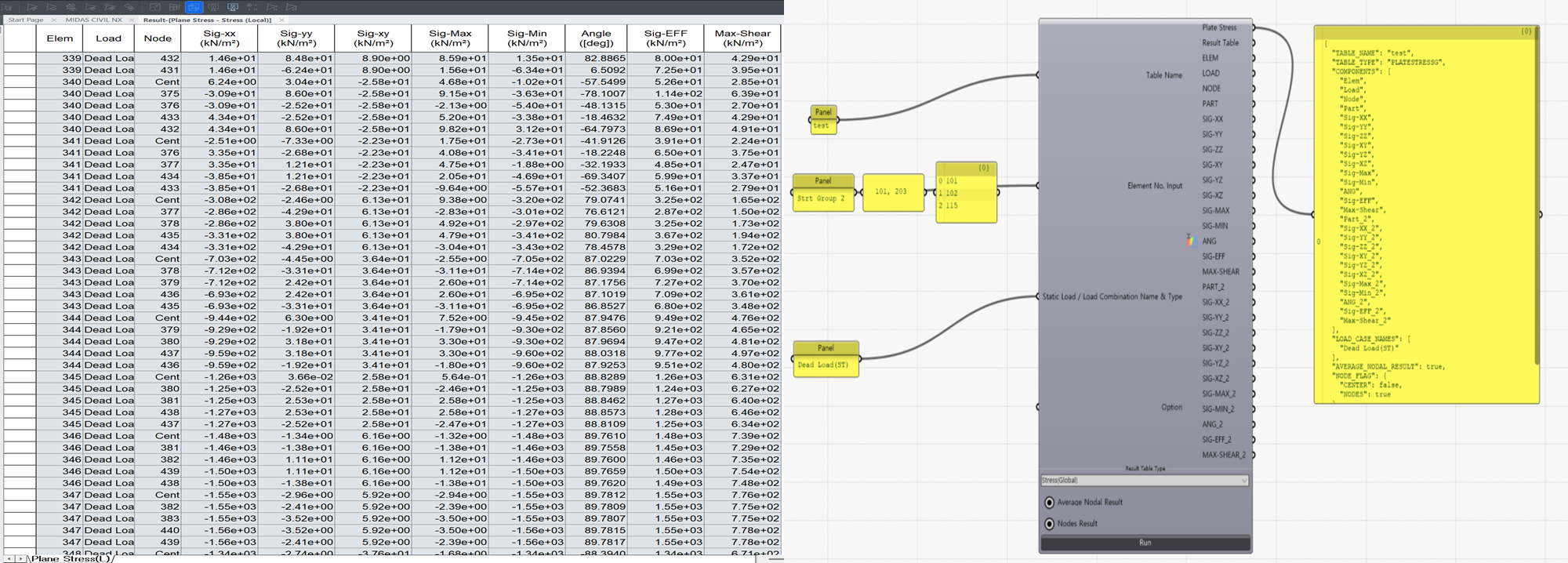

Plate Stress
The Plate - Stress Result Table is a component that can be imported through Grasshopper.
Plate Stress (Local) and Plate Stress (Global) results can be output.

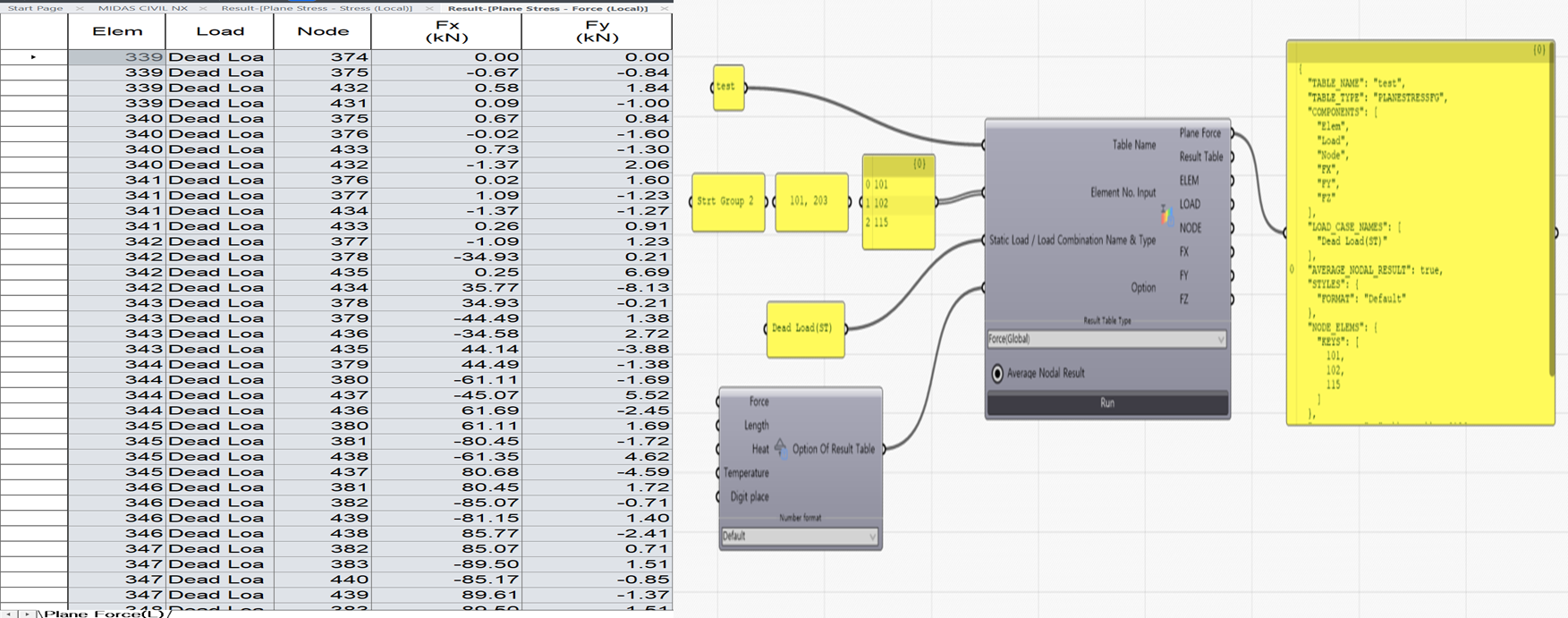

Plane Force
The Plane - Force Result Table is a component that can be imported through Grasshopper.
Plane Force (Local) and Plane Force (Global) results can be output.

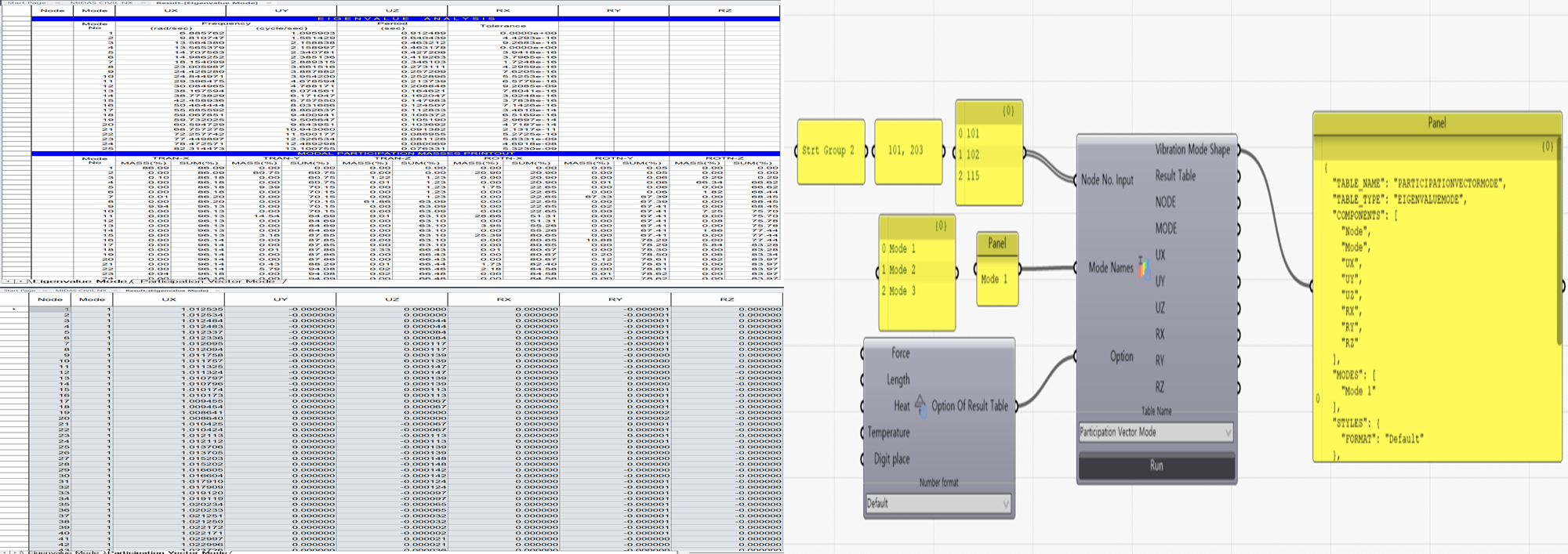

Vibration Mode Shape
The Vibration Mode Shape Result Table is a component that can be imported through Grasshopper.
Eigenvalue Mode and Participation Vector Mode results can be output.

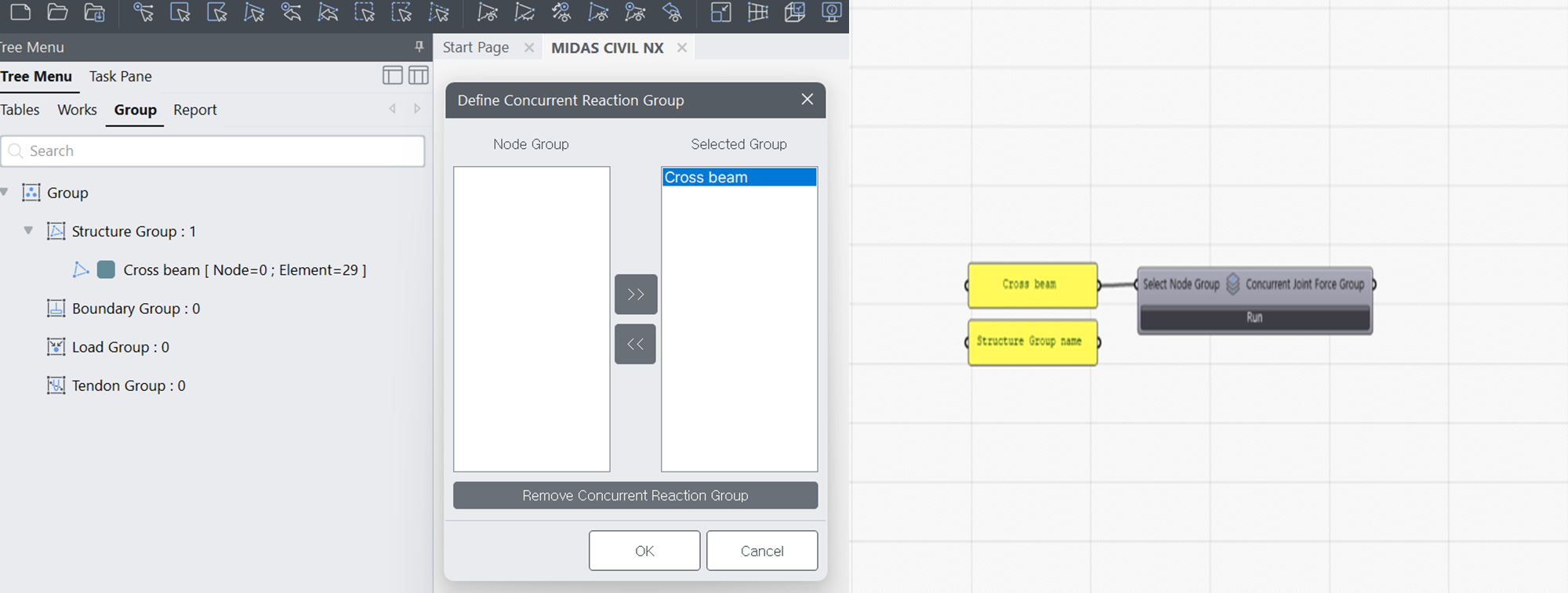

Concurrent Joint Force Group
The component converts the node group defined in the Structure Group into a Concurrent Joint Force Group.
※ Exclusive to CIVIL NX.
※ This component is applied based on the Moving Load Code.

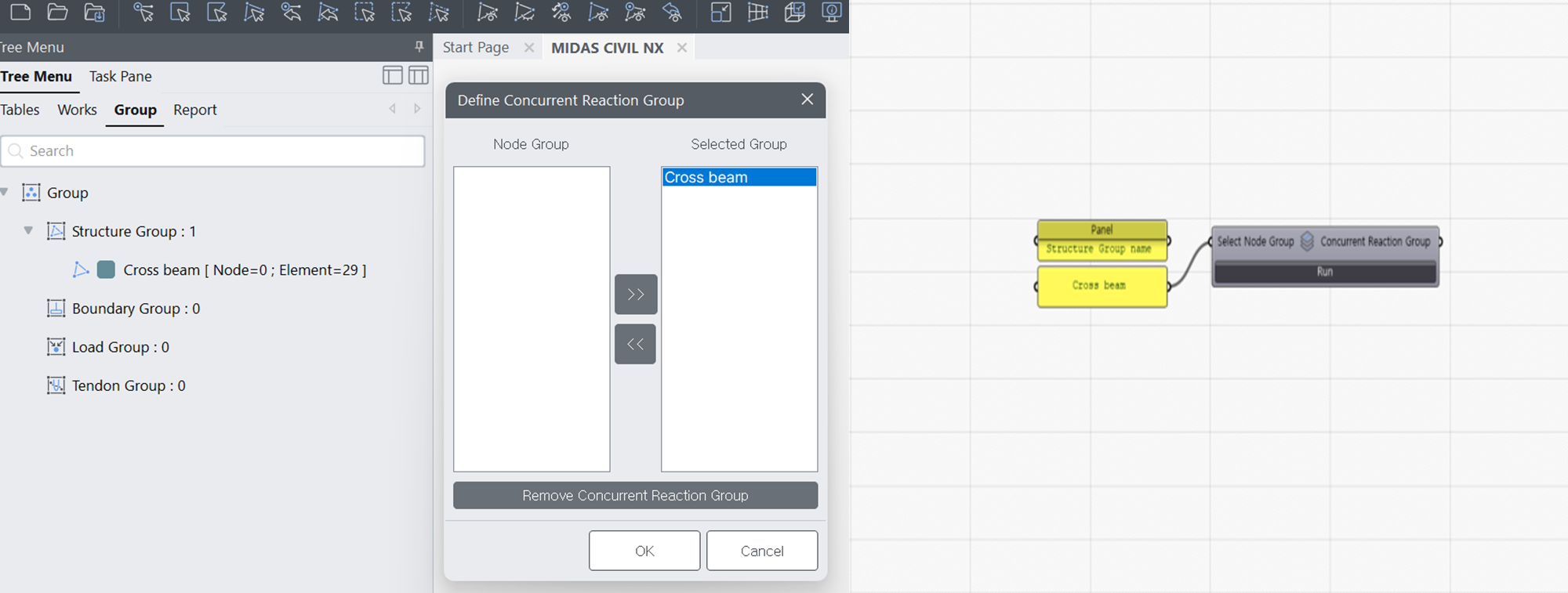

Concurrent Reaction Group
The component converts the node group defined in the Structure Group into a Concurrent Reaction Group.
※ Exclusive to CIVIL NX.
※ This component is applied based on the Moving Load Code.

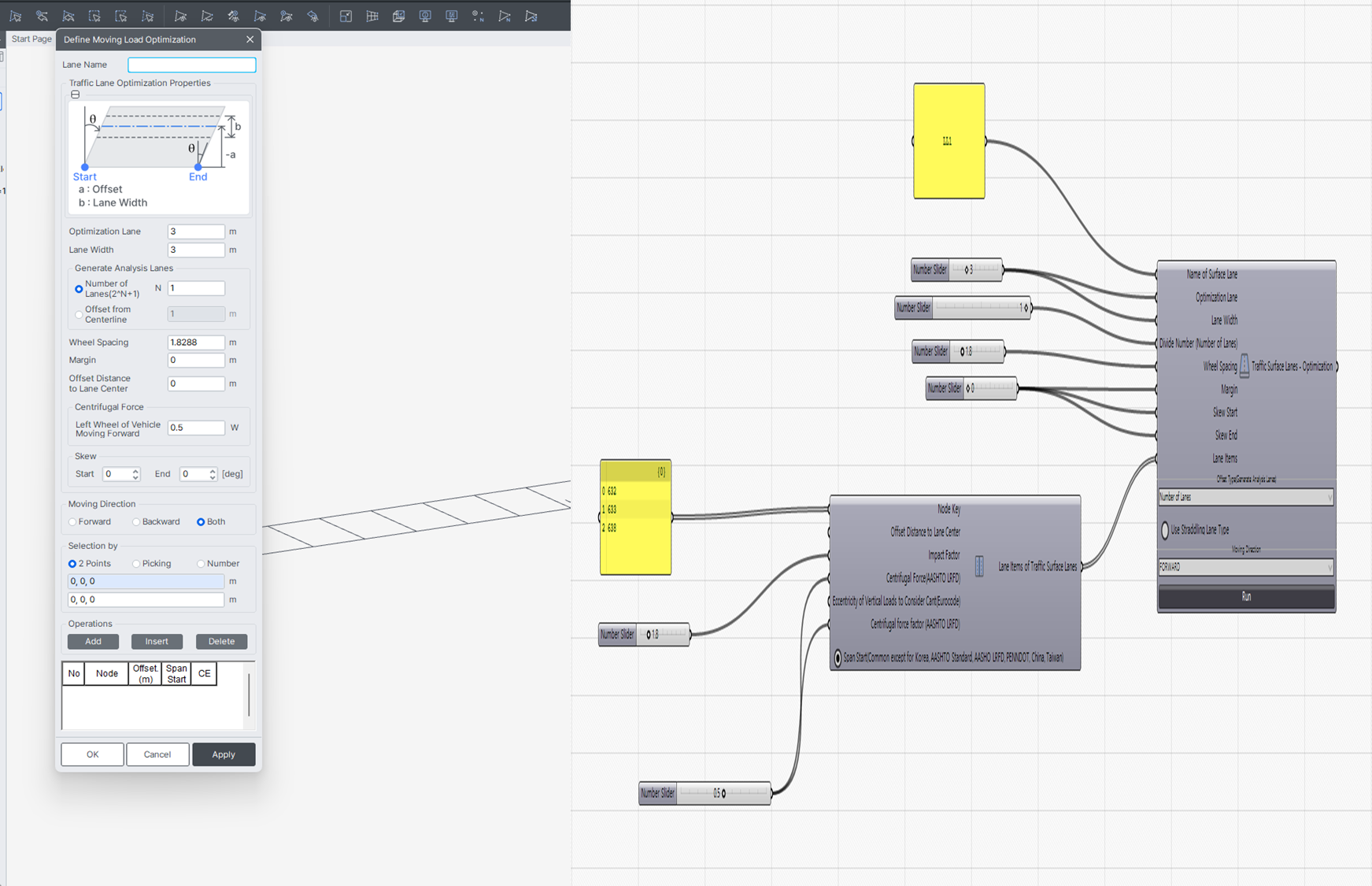

Traffic Surface Lanes - Optimization
This is the component that executes the lane optimization function.
※ This component is applied based on the Moving Load Code.
