Analysis Result Tables 생성 편집

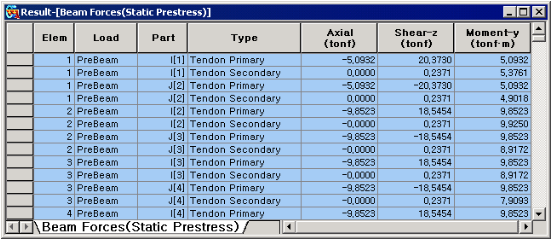

Beam Forces(Static Prestress)

기능

  • 정적하중인 Prestress Beam Loads와 Tendon Prestress Loads에 대한 부재력 결과를 1차력과 2차력으로 구분하여 출력합니다.
  • CIVIL 의 Table Tool은 강력하고 다양한 각종 기능을 내장하고 있으며 자세한 사용법은 Table Tool의 사용법을 참조하기 바랍니다.



호출

메인 메뉴에서 [Results] 탭 > [Type : Analysis result] > [Table] 그룹 > [Result Tables] > [Beam] > [Forces(Static Prestress)]



입력

Elem : 요소번호

Load : 하중조건

Part : 요소의 부재력 결과 출력위치 (i, 1/4, 2/4, 3/4, j)

Type : Prestress 1차력 / 2차력 (Tendon Primary / Tendon Secondary)

Axial : 축력

Shear-z : 요소좌표계의 z축 방향 전단력

Moment-y : 요소좌표계의 y축에 대한 휨모멘트

Update Initial Force

Update Initial Force

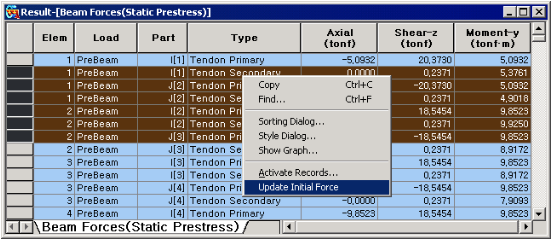

영역을 선택한 후 오른쪽 마우스를 클릭하여 Update Initial Force 기능을 이용해 2차력을 초기력으로 입력합니다. 선택된 초기하중은 Initial Element Force 기능으로 아래와 같이 입력됩니다.

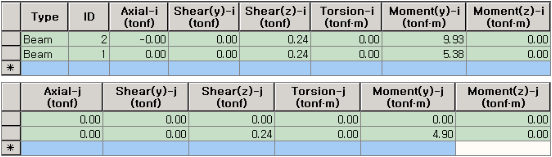

Initial Element Force Tables
