Inelastic Hinge Result Tables 생성 편집

Deformation Result Table

기능

  • Spring Type 비탄성힌지의 발생결과를 테이블 형식으로 보여줍니다.
  • CIVIL 의 Table Tool은 강력하고 다양한 각종 기능을 내장하고 있으며 자세한 사용법은 Table Tool의 사용법을 참조하기 바랍니다.



호출

메인 메뉴에서 [Results] 탭 > [Type : Time History Analysis] > [Table] 그룹 > [Result Tables] > [Inelastic Hinge] > [Deformation]



입력

Deformation 기능을 실행하면 Records Activation Dialog가 호출되고 하중조건을 선택한 후 OK 버튼을 클릭합니다.

NOTE.png Records Activation Dialog의 사용법은 "Table Tool의 사용방법"에서 결과 Table 참조

Table Tool의 사용방법을 참조하여 다음 데이터를 확인합니다.

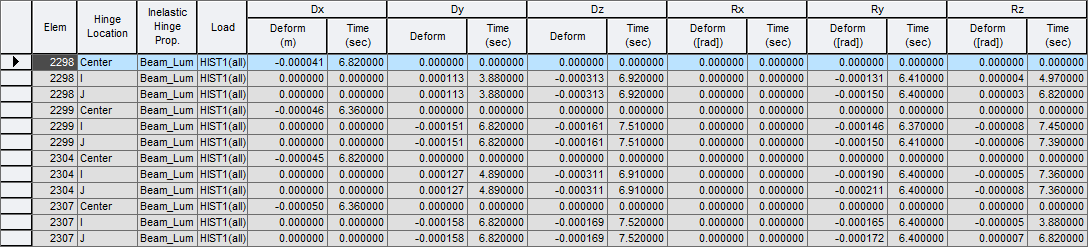

Results-tables-Inelastic Hinge-deformation-lumped.png

Deformation Table(Lumped)

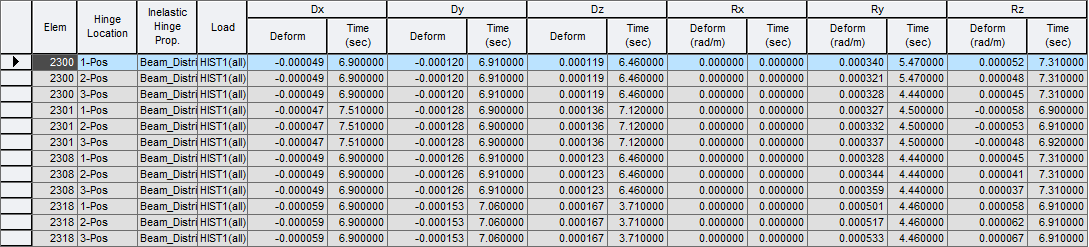

Results-tables-Inelastic Hinge-deformation-distributed.png

Deformation Table(Distributed)

Elem : 요소번호

Hinge Location : 비탄성힌지가 할당된 위치. Lumped Type인 경우 i, j, i & j, FX로 표시되며, Distributed Type인 경우 힌지 개수에 따라 표시됩니다.

Inelastic Hinge Prop. : 비탄성힌지 속성

Load : 시간이력 하중케이스

Deformation : 해석된 시간내에서의 최대변형

Time : 최대변형이 발생할 때의 시간

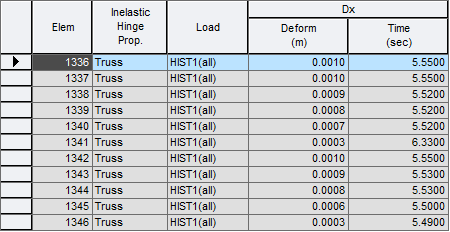

Results-tables-Inelastic Hinge-deformation-truss.png

Deformation Table(Truss)

Elem : 요소번호

Hinge Location : 비탄성힌지가 할당된 위치. Lumped Type인 경우 i, j, i & j, FX로 표시되며, Distributed Type인 경우 힌지 개수에 따라 표시됩니다.

Inelastic Hinge Prop. : 비탄성힌지 속성

Load : 시간이력 하중케이스

Deformation : 해석된 시간내에서의 최대변형

Time : 최대변형이 발생할 때의 시간

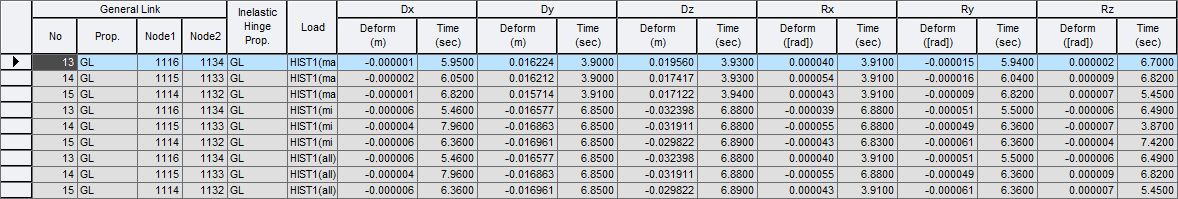

Results-tables-Inelastic Hinge-deformation-spring.png

Deformation Table(Spring)

General Link

Prop. : 범용링크 속성 이름

Node1, 2 : 링크가 연결된 절점번호Inelastic Hinge Prop. : 비탄성힌지 속성

Load : 시간이력하중

Deformation : 해석된 시간내에서의 최대변형

Time : 최대변형이 발생할 때의 시간
