Analysis Result Tables 생성 편집

Lack of Fit Force - Beam Result Table

기능

  • 시공단계 해석시 Lack of Fit Force를 고려한 경우 Lack of Fit Force를 계산하는 과정에 사용된 값들을 테이블로 출력합니다.
  • CIVIL 의 Table Tool은 강력하고 다양한 각종 기능을 내장하고 있으며 자세한 사용법은 Table Tool의 사용법을 참조하기 바랍니다.



호출

메인 메뉴에서 [Results] 탭 > [Type : Analysis result] > [Table] 그룹 > [Results Tables] > [Lack-of-Fit-Force] > [Beam]



입력

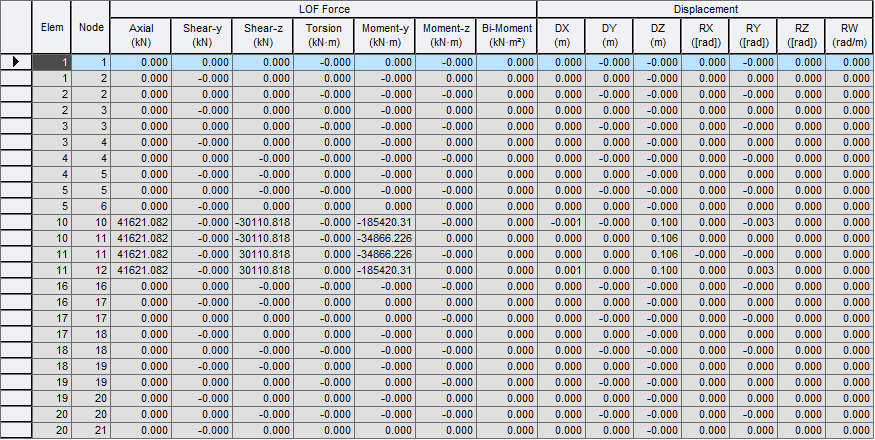

Results-tables-CS-Lack of Fit Force - beam.png

Elem : 요소의 번호

Node : 절점의 번호

LOF Force : 계산된 Lack of Fit Force

Axial : 축력

Shear-y : 요소좌표계 y축방향의 전단력

Shear-z : 요소좌표계 z축방향의 전단력

Torsion : 비틀림

Moment-y : 요소좌표계 y축 모멘트

Moment-z : 요소좌표계 z축 모멘트

Displacement : 절점의 전체좌표계 각 방향의 변위(Real Displacement)
