Load Combinaton

기능

  • 지진하중이 포함된 극단하중상태의 하중조합을 자동으로 생성할 수 있습니다.
  • Seismic 탭에서 정의된 하중조합은 내진성능 설계 및 평가에 설계 단면력이 연동되게 됩니다.



호출

메인메뉴에서 [Seismic Perfrom.] 탭 > [Combination] 그룹 > [Load Combinaton]



입력

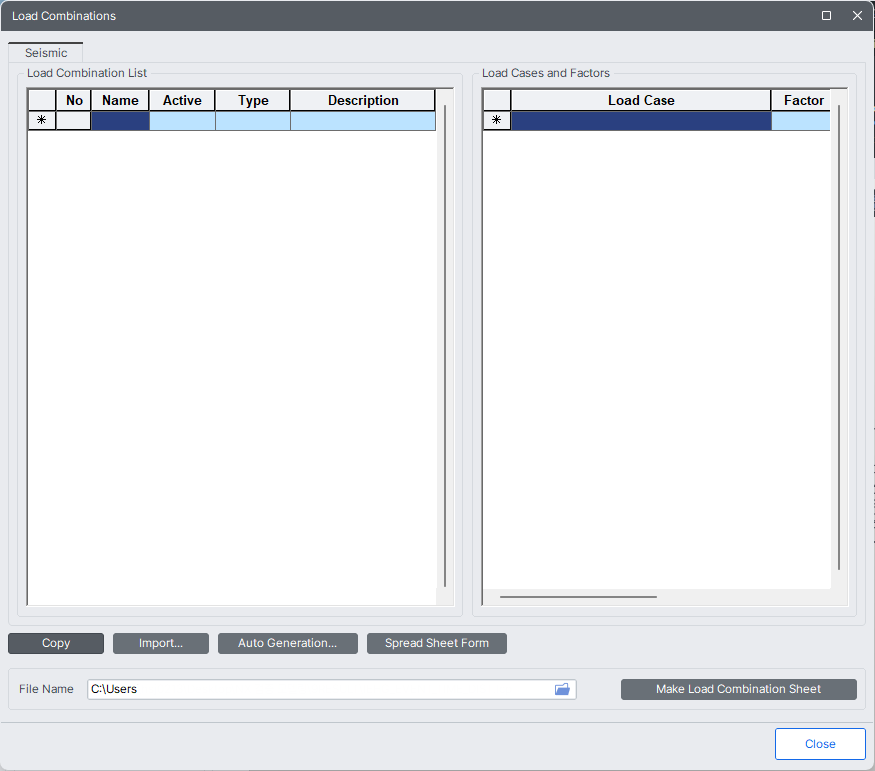

Seismic Perform-MISC-load combinations.png

Evaluation Group 대화상자


Auto Generation

Method : KSCE-USD10/KSCE-LSD15 기준에 의한 하중조합을 제공합니다.

Define Load and Factors for Gravity Load : 기준에 따른 고정하중조합을 선택합니다.

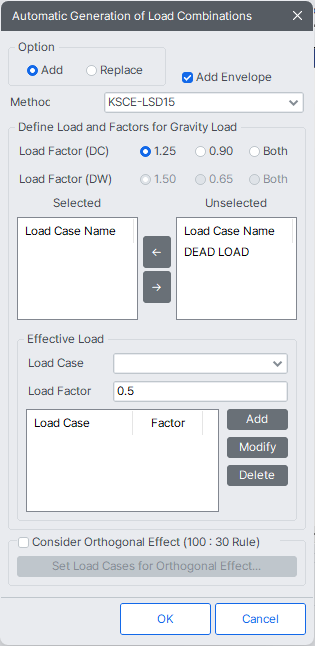

Seismic Perform-MISC-load combinations-automatic generation of Load Combinations.png

Automatic Generation of Load Combination 대화상자


Effective Load

정의된 이동하중을 추가합니다. Load Factor는 기준에서 제시하는 50%이며 사용자 판단 하에 수정 가능합니다.


Consider Orthogonal Effect(100:30 Rule)

기준에서 제시하는 지진력 조합을 고려할 수 있습니다.

지진력 방향은 교축/교축직각/연직으로 구분됩니다.

지진력의 방향을 고려하는 Both(+,-)와 Comb. Only(+)를 제공합니다.

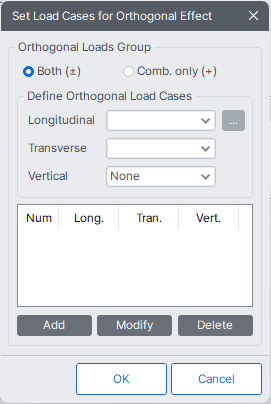

Seismic Perform-MISC-load combinations-automatic generation of Load Combinations-set load cases for orthogonal effect.png

Set Load Cases for Orthogonal Effect 대화상자
