JSON in VBA

The user typically needs assistance from external libraries to handle JSON data in VBA (Visual Basic for Applications). VBA itself does not have built-in functions or libraries for processing JSON. To use an external library for handling JSON data, you can leverage libraries like 'VBA-JSON.' The following outlines how to handle JSON data in VBA.

1. Installation of the VBA-JSON Library: The VBA-JSON library provides functions for parsing and generating JSON data. First, you need to download and install this Library. The VBA-JSON library is available on GitHub, and you can download the JsonConverter.bas file and add it to your VBA project.  GitHub - VBA-tools/VBA-JSON: JSON conversion and parsing for VBA

2. Adding the Library to the VBA Project: To add the JsonConverter.bas file from VBA-JSON to your VBA project, follow these steps:

   1. Open the VBA project and select the 'Module' tab.

   2. Choose the "“File"” menu and click on "“Import File."”

   3. Select the JsonConverter.bas file to import.

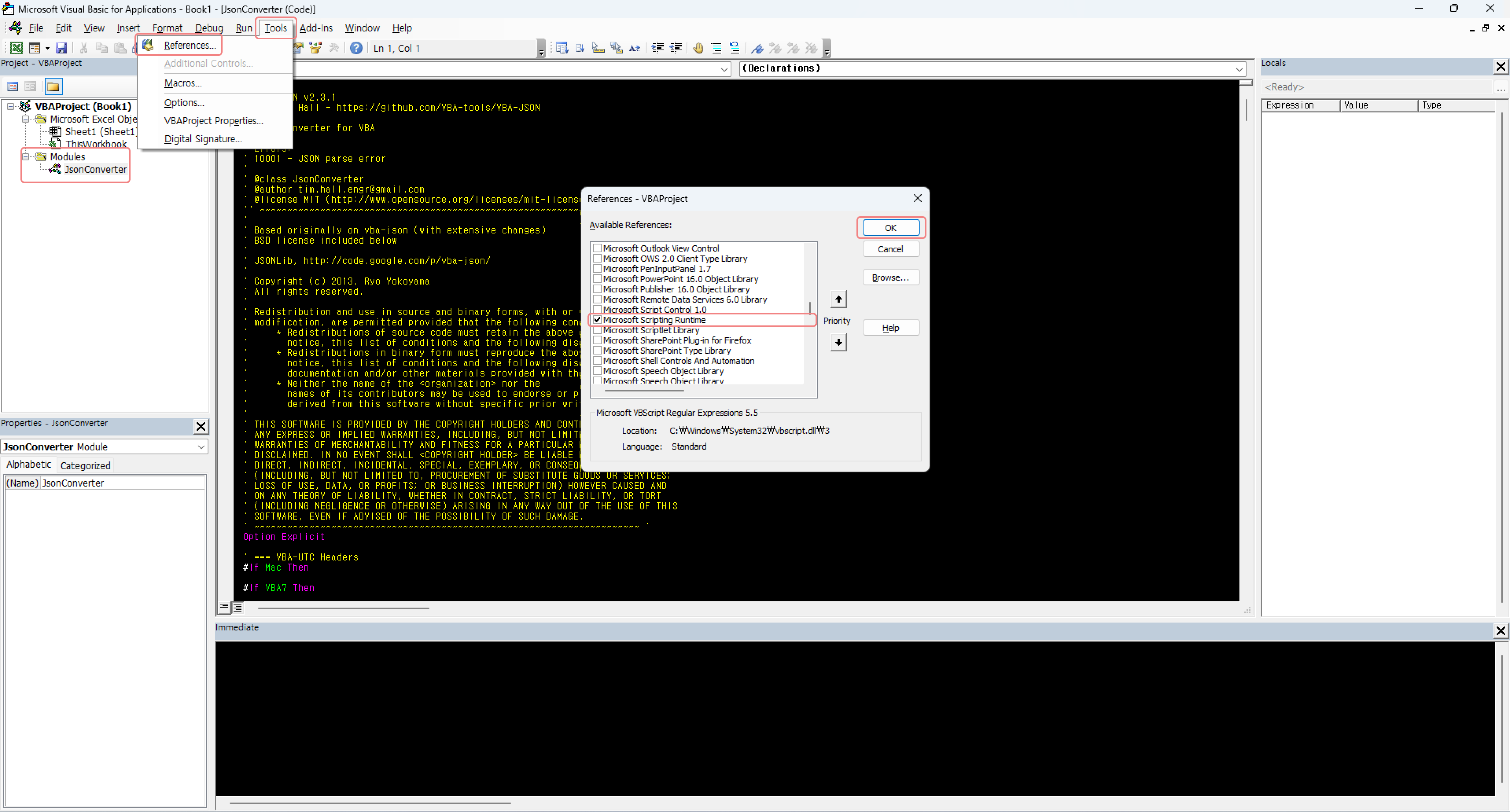

3. Adding VBA Reference: To utilize the JsonConverter.bas file, VBA's dictionary data type needs to be used as Early binding. This requires adding a reference to "Microsoft Scripting Runtime."

   Following these steps:

   1. Execute the Reference in the Tools menu.

   2. Locate "Microsoft Scripting Runtime," activate the checkbox, and click " OK."

VBA - JSON

• JSON Data Parsing

You can use the ParseJson function from the above installed Library to parse JSON data in VBA. The following is an example of parsing JSON data.

Option Explicit

Sub jsonParsing()

    'Convert to VBA data by parsing JSON string
    Dim jsonData As String
    Dim data As Scripting.Dictionary

    jsonData = "{""name"": ""John"", ""age"": 30, ""city"": ""New York""}"
    Set data = JsonConverter.ParseJson(jsonData)

    'Print result
    Debug.Print data("name")  'John

End Sub

• Creating JSON Data

To convert VBA data to JSON in VBA, you can use the ConvertToJson function. The following is an example of converting a VBA dictionary to a JSON string.

Option Explicit

Sub jsonParsing()

    'Convert VBA dictionary to JSON string
    Dim jsonData As String
    Dim data As Scripting.Dictionary
    Set data = New Dictionary

    data.Add "name", "John"
    data.Add "age", 30
    data.Add "city", "New York"

    jsonData = JsonConverter.ConvertToJson(data)

    'Print result
    Debug.Print (jsonData) '{"name":"John","age":30,"city":"New York"}

End Sub

Exercise Examples

Let's go through an example of creating a simple beam with a rectangular section using VBA.

Considering the characteristics of VBA, we will use Excel sheets for this example.

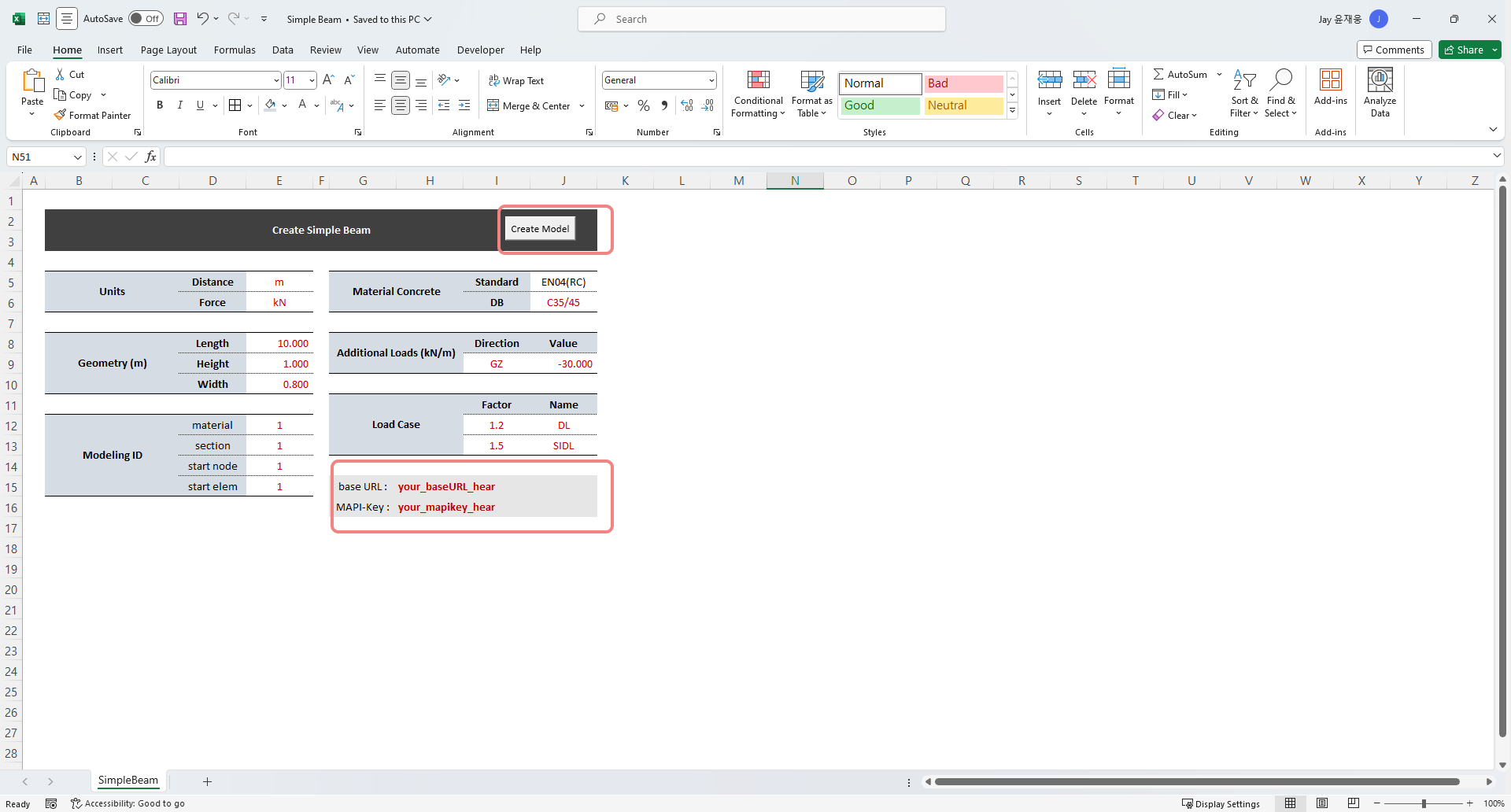

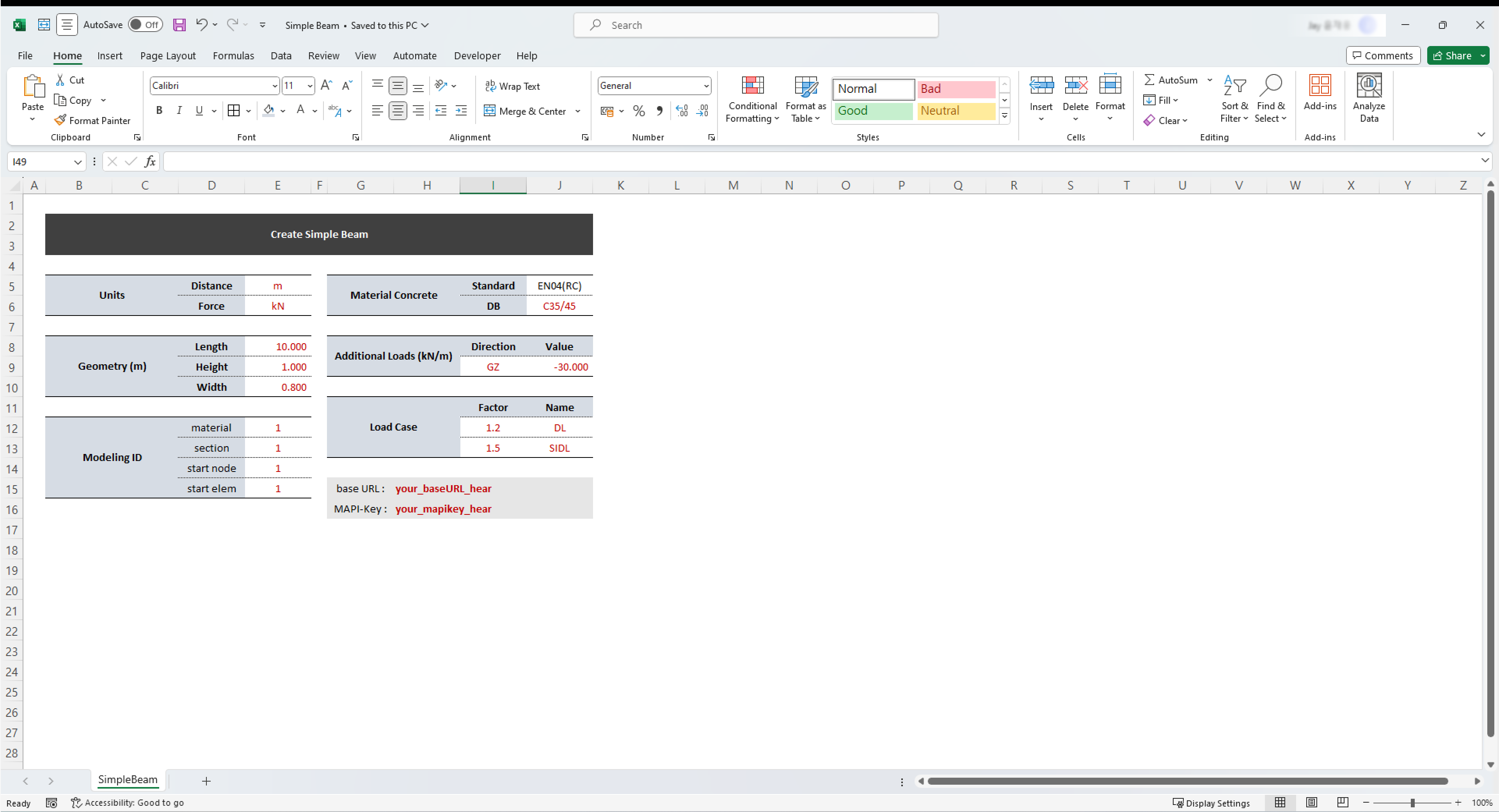

• First, create an input window where put variables on the Sheets.

• Creating REST API Request as a function.

Option Explicit

Function WebRequest(Method As String, Command As String, Body As String) As String

    Dim TCRequestItem As Object
    Dim baseURL As String
    Dim URL As String
    Dim MAPI_Key As Variant

    Set TCRequestItem = CreateObject("WinHttp.WinHttpRequest.5.1")

    'SetTimeouts(resolveTimeout, ConnectTimeout, SendTimeout, ReceiveTimeout)
    TCRequestItem.SetTimeouts 200000, 200000, 200000, 200000

    baseURL = Cells(2, 7).Value
    MAPI_Key = Cells(3, 7).Value

    URL = baseURL & Command
    TCRequestItem.Open Method, URL, False
    TCRequestItem.SetRequestHeader "Content-type", "application/json"
    TCRequestItem.SetRequestHeader "MAPI-Key", MAPI_Key
    TCRequestItem.Send Body
    WebRequest = TCRequestItem.ResponseText

    Debug.Print Command & " : " & TCRequestItem.Status & " - " & TCRequestItem.StatusText

End Function

• Creating Sub Module to generate SimpleBeam.

Sub CreateSimpleBeam()

    Dim i, j, k As Integer

    'input data from sheets
    Dim dist As String
    Dim force As String
    Dim length As Double
    Dim height As Double
    Dim width As Double
    Dim direction As String
    Dim loadValue As Double
    Dim modelID As Range
    Dim loadCase As Range
    Dim matSt As String
    Dim matDB As String

    dist = UCase(Cells(5, "E").Value)
    force = UCase(Cells(6, "E").Value)

    length = Cells(8, "E").Value
    height = Cells(9, "E").Value
    width = Cells(10, "E").Value

    direction = Cells(9, "I").Value
    loadValue = Cells(9, "J").Value

    matSt = Cells(5, "J").Value
    matDB = Cells(6, "J").Value

    Set loadCase = Range(Cells(12, "I"), Cells(13, "J"))
    Set modelID = Range(Cells(12, "E"), Cells(15, "E"))

    'Dictionary
    Dim dicMain As Scripting.Dictionary
    Dim dicSub1 As Scripting.Dictionary
    Dim dicSub2 As Scripting.Dictionary
    Dim dicSub3 As Scripting.Dictionary
    Dim dicSub4 As Scripting.Dictionary
    Dim response As String
    Dim body As String

    'Create New File
    response = WebRequest("POST", "/doc/new", "{}")
    Debug.Print response

    'Create Unit Body and Request API
    Set dicMain = New Dictionary
    Set dicSub1 = New Dictionary: Set dicSub2 = New Dictionary

    dicSub2.Add "DIST", dist
    dicSub2.Add "FORCE", force

    dicSub1.Add "1", dicSub2

    dicMain.Add "Assign", dicSub1

    body = JsonConverter.ConvertToJson(dicMain)
    response = WebRequest("PUT", "/db/unit", body)
    Debug.Print response

    Set dicMain = Nothing
    Set dicSub1 = Nothing: Set dicSub2 = Nothing

    'Create Material Body and Request API
    Set dicMain = New Dictionary: Set dicSub1 = New Dictionary
    Set dicSub2 = New Dictionary: Set dicSub3 = New Dictionary

    dicSub3.Add "P_TYPE", 1
    dicSub3.Add "STANDARD", matSt
    dicSub3.Add "DB", matDB

    dicSub2.Add "TYPE", "CONC"
    dicSub2.Add "NAME", matDB
    dicSub2.Add "PARAM", Array(dicSub3)

    dicSub1.Add modelID(1, 1), dicSub2

    dicMain.Add "Assign", dicSub1

    body = JsonConverter.ConvertToJson(dicMain)
    response = WebRequest("POST", "/db/matl", body)
    Debug.Print response

    Set dicMain = Nothing: Set dicSub1 = Nothing
    Set dicSub2 = Nothing: Set dicSub3 = Nothing

    'Create Section Body and Request API
    Set dicMain = New Dictionary: Set dicSub1 = New Dictionary
    Set dicSub2 = New Dictionary: Set dicSub3 = New Dictionary: Set dicSub4 = New Dictionary

    dicSub4.Add "vSIZE", Array(height, width)

    dicSub3.Add "USE_SHEAR_DEFORM", True
    dicSub3.Add "SHAPE", "SB"
    dicSub3.Add "DATATYPE", 2
    dicSub3.Add "SECT_I", dicSub4

    dicSub2.Add "SECTTYPE", "DBUSER"
    dicSub2.Add "SECT_NAME", "Rectangular"
    dicSub2.Add "SECT_BEFORE", dicSub3

    dicSub1.Add modelID(2, 1), dicSub2

    dicMain.Add "Assign", dicSub1

    body = JsonConverter.ConvertToJson(dicMain)
    response = WebRequest("POST", "/db/sect", body)
    Debug.Print response

    Set dicMain = Nothing: Set dicSub1 = Nothing
    Set dicSub2 = Nothing: Set dicSub3 = Nothing: Set dicSub4 = Nothing

    'Create Node Body and Request API
    Set dicMain = New Dictionary: Set dicSub1 = New Dictionary

    Dim num_division As Long
    Dim interval As Double

    num_division = 20
    interval = length / num_division

    For i = 0 To num_division
        Set dicSub2 = New Dictionary

        dicSub2.Add "X", i * interval
        dicSub2.Add "Y", 0
        dicSub2.Add "Z", 0

        dicSub1.Add modelID(3, 1) + i, dicSub2

        Set dicSub2 = Nothing
    Next i

    dicMain.Add "Assign", dicSub1

    body = JsonConverter.ConvertToJson(dicMain)
    response = WebRequest("POST", "/db/node", body)
    Debug.Print response

    Set dicMain = Nothing: Set dicSub1 = Nothing

    'Create Element Body and Request API
    Set dicMain = New Dictionary: Set dicSub1 = New Dictionary

    For i = 0 To num_division
        Set dicSub2 = New Dictionary

        dicSub2.Add "TYPE", "BEAM"
        dicSub2.Add "MATL", modelID(1, 1)
        dicSub2.Add "SECT", modelID(2, 1)
        dicSub2.Add "NODE", Array(modelID(3, 1) + i, modelID(3, 1) + i + 1)

        dicSub1.Add modelID(4, 1) + i, dicSub2

        Set dicSub2 = Nothing
    Next i

    dicMain.Add "Assign", dicSub1

    body = JsonConverter.ConvertToJson(dicMain)
    response = WebRequest("POST", "/db/elem", body)
    Debug.Print response

    Set dicMain = Nothing: Set dicSub1 = Nothing

    'Create Boundary Body and Request API
    Set dicMain = New Dictionary: Set dicSub1 = New Dictionary
    Set dicSub2 = New Dictionary: Set dicSub3 = New Dictionary

    dicSub3.Add "ID", 1
    dicSub3.Add "CONSTRAINT", "1111000"

    dicSub2.Add "ITEMS", Array(dicSub3)

    dicSub1.Add modelID(3, 1), dicSub2

    Set dicSub2 = Nothing: Set dicSub3 = Nothing
    Set dicSub2 = New Dictionary: Set dicSub3 = New Dictionary

    dicSub3.Add "ID", 1
    dicSub3.Add "CONSTRAINT", "0111000"

    dicSub2.Add "ITEMS", Array(dicSub3)

    dicSub1.Add modelID(3, 1) + num_division, dicSub2

    dicMain.Add "Assign", dicSub1

    body = JsonConverter.ConvertToJson(dicMain)
    response = WebRequest("POST", "/db/cons", body)
    Debug.Print response

    Set dicMain = Nothing: Set dicSub1 = Nothing
    Set dicSub2 = Nothing: Set dicSub3 = Nothing

    'Create Load Cases and Request API
    Set dicMain = New Dictionary: Set dicSub1 = New Dictionary

    For i = 0 To loadCase.Rows.Count - 1
        Set dicSub2 = New Dictionary

        dicSub2.Add "NAME", loadCase(i + 1, 2)
        dicSub2.Add "TYPE", "USER"

        dicSub1.Add i + 1, dicSub2

        Set dicSub2 = Nothing
    Next i

    dicMain.Add "Assign", dicSub1

    body = JsonConverter.ConvertToJson(dicMain)
    response = WebRequest("POST", "/db/stld", body)
    Debug.Print response

    Set dicMain = Nothing: Set dicSub1 = Nothing

    'Create Self-Weight Load Body and Request API
    Set dicMain = New Dictionary: Set dicSub1 = New Dictionary
    Set dicSub2 = New Dictionary

    dicSub2.Add "LCNAME", loadCase(1, 2)
    dicSub2.Add "FV", Array(0, 0, -1)

    dicSub1.Add "1", dicSub2

    dicMain.Add "Assign", dicSub1

    body = JsonConverter.ConvertToJson(dicMain)
    response = WebRequest("POST", "/db/bodf", body)
    Debug.Print response

    Set dicMain = Nothing: Set dicSub1 = Nothing
    Set dicSub2 = Nothing

    'Create Beam Load Body and Request API
    Set dicMain = New Dictionary: Set dicSub1 = New Dictionary

    For i = 0 To num_division - 1
        Set dicSub2 = New Dictionary: Set dicSub3 = New Dictionary

        dicSub3.Add "ID", 1
        dicSub3.Add "LCNAME", loadCase(2, 2)
        dicSub3.Add "CMD", "BEAM"
        dicSub3.Add "TYPE", "UNILOAD"
        dicSub3.Add "DIRECTION", direction
        dicSub3.Add "D", Array(0, 1)
        dicSub3.Add "P", Array(loadValue, loadValue)

        dicSub2.Add "ITEMS", Array(dicSub3)

        dicSub1.Add modelID(4, 1) + i, dicSub2

        Set dicSub2 = Nothing: Set dicSub3 = Nothing
    Next i

    dicMain.Add "Assign", dicSub1

    body = JsonConverter.ConvertToJson(dicMain)
    response = WebRequest("POST", "/db/bmld", body)
    Debug.Print response

    Set dicMain = Nothing: Set dicSub1 = Nothing

    'Create Load Combinations Body and Request API
    Set dicMain = New Dictionary: Set dicSub1 = New Dictionary
    Set dicSub2 = New Dictionary

    Dim vCOMB() As Object
    ReDim vCOMB(loadCase.Rows.Count - 1)

    For i = 0 To loadCase.Rows.Count - 1
        Set dicSub3 = New Dictionary

        dicSub3.Add "ANAL", "ST"
        dicSub3.Add "LCNAME", loadCase(i + 1, 2)
        dicSub3.Add "FACTOR", loadCase(i + 1, 1)

        Set vCOMB(i) = dicSub3

        Set dicSub3 = Nothing
    Next i

    dicSub2.Add "NAME", "Comb1"
    dicSub2.Add "ACTIVE", "ACTIVE"
    dicSub2.Add "iTYPE", 0
    dicSub2.Add "vCOMB", vCOMB

    dicSub1.Add "1", dicSub2

    dicMain.Add "Assign", dicSub1

    body = JsonConverter.ConvertToJson(dicMain)
    response = WebRequest("POST", "/db/lcom-gen", body)
    Debug.Print response

    Set dicMain = Nothing: Set dicSub1 = Nothing
    Set dicSub2 = Nothing

End Sub

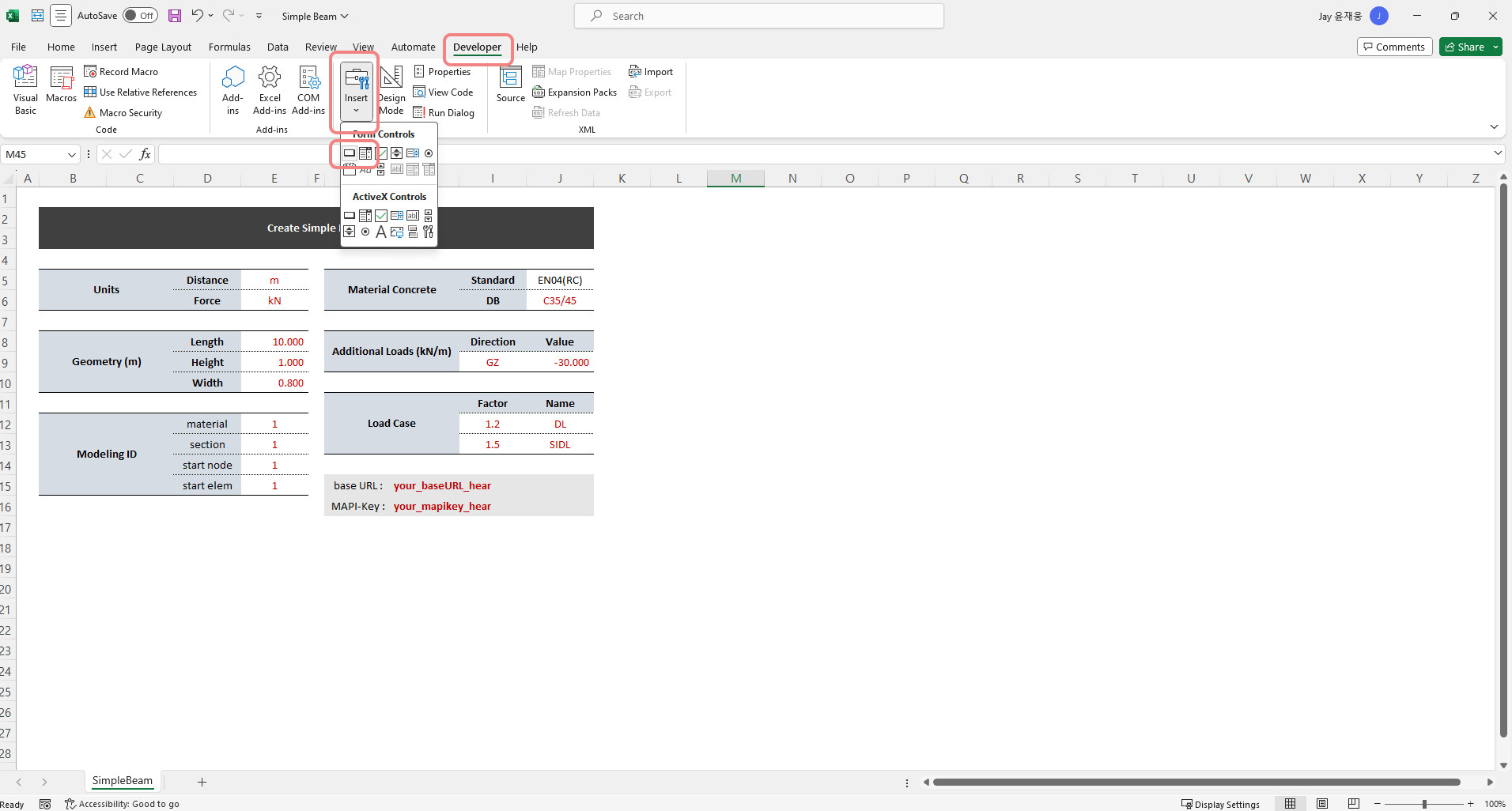

• Let's create a button to execute the sub-module that we've previously created. Select the button from the Developer tab. (Developer tools can be activated in Excel Options under Customize Ribbon settings.)

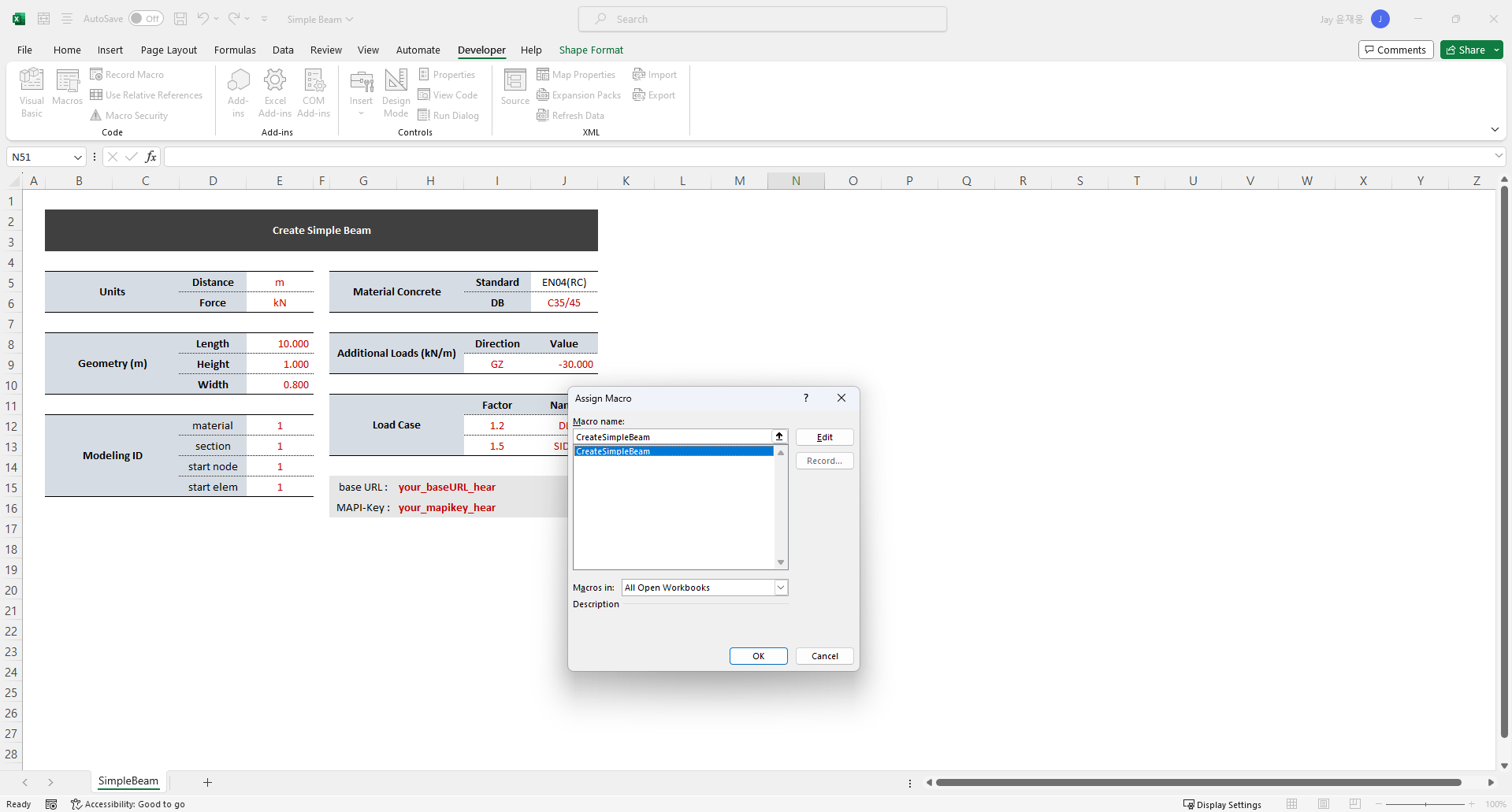

• After creating the button in a suitable location, you can see the available macro modules below. Select and apply the pre-inserted sub-module.

• Run MIDAS CIVIL NX, connect to the API server, enter the base URL/MAPI-Key in API Settings, and execute the button.

Please refer the attached file that completed the above steps.

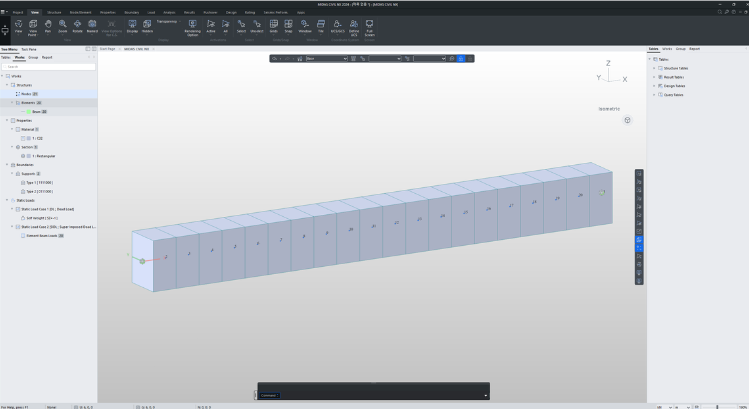

Now, the intended structure has been created in MIDAS CIVIL NX.

Additional Example

PSC Beam Girder with VBA in Excel

This PSC Beam Girder is a Steel Crossbeam example using Excel VBA based on Highway Bridge Design Standard, Korea.

The Best Tool for Structural Engineers

VBA can exert its greatest power when integrated with the created Excel structural calculation sheets.

Especially when repeatedly entering analysis results into the calculation sheet, API is an excellent choice.

We look forward to your first step to MIDAS Open API, starting with VBA.
