ERROR [2107]: TOO MANY THICKNESS INTEGRATION POINTS IN PROPERTY ID=# FOR EXPLICIT DYNAMIC ANALYSIS (MAX=31)
Cause
이 오류는 비선형 외연적 동해석에서 2차원 판 요소의 두께 방향으로 지정된 적분점 수가 너무 클 때(31개 이상) 발생합니다.
Analysis Type
Explicit dynamic analysis (nonlinear explicit transient)
Related Menu
[Not Applicable in FEA NX]
요소망 >> Attribute >> Property >> 2D >> Plate...
Static/Heat Analysis >> Attribute/CSys/Function >> Property >> 2D >> Plate...
Dynamic/Trans.Heat/CFD Analysis >> Attribute/CSys/Function >> Property >> 2D >> Plate...
Remedy

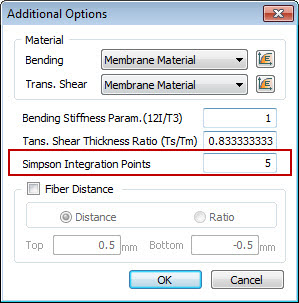

1. [추가 옵션...]에서 두께 방향의 Simpson Integration Points를 31보다 작은 값으로 줄입니다.
