1. Description
This component operates the Beam Load function in Civil NX.
Enter beam loads acting on beam elements such as uniformly distributed loads or in-span concentrated loads. Modify or delete previously entered beam loads.
The Beam Load function can be found in the Civil NX main menu,select [Load] tab > [Static Loads(Type)] group > [Element/Line Beam Load]
2. Grasshopper Path
[Midas] > [Static Loads] > [Beam Load]

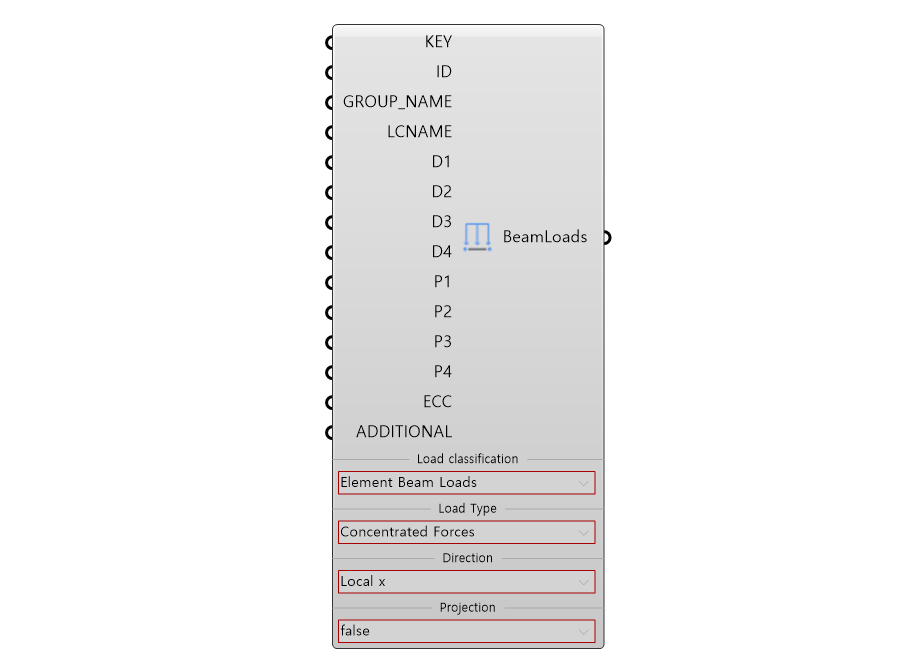

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | Key | Element No. | Integer | - | - |
| 2 | ID | Serial Number | Integer | - | - |
| 3 | GROUP_NAME | Load Group Name | String | - | - |
| 4 | LCNAME | Load Case Name | String | - | - |
| 5 | D1,D2,D3,D4 | Distance-x1,x2,x3,x4 | Real | - | - |
| 6 | P1,P2,P3,P4 | Load-v1,v2,v3,v4 | Real | - | - |
| 7 | ECC | Use Eccentricity | Object | - | Beam Load Eccentricity |
| 8 | ADDITIONAL | Use Additional H from Top Option | Object | - | Beam Pressure Additional H |
| 9 | Load Classification | Load Classification | Select | Element Beam Loads | - |
| 10 | Load Type | Load Type | Select | Concentrated Forces | - |
| 11 | Direction | Direction | Select | Local x | - |
| 12 | Projection | Projection | Select | false | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | BMLD | Create Beam Loads | Json | PUT/DELETE | - |
5. Reference API Manual Link
Beam Loads (Element, Line, Typical)
