Specified Displacements of Support

1. Description

This component operates the Specified Displacements of Support function in Civil NX.
Enter specified (forced) nodal displacements, or modify or delete previously entered specified (forced) displacements.



The Specified Displacements of Support function can be found in the Civil NX main menu,select [Load] tab > [Static Loads(Type)] group > [Specified Displacements of Support]



2. Grasshopper Path



[Midas] > [Static Loads] > [Specified Displacements of Support]

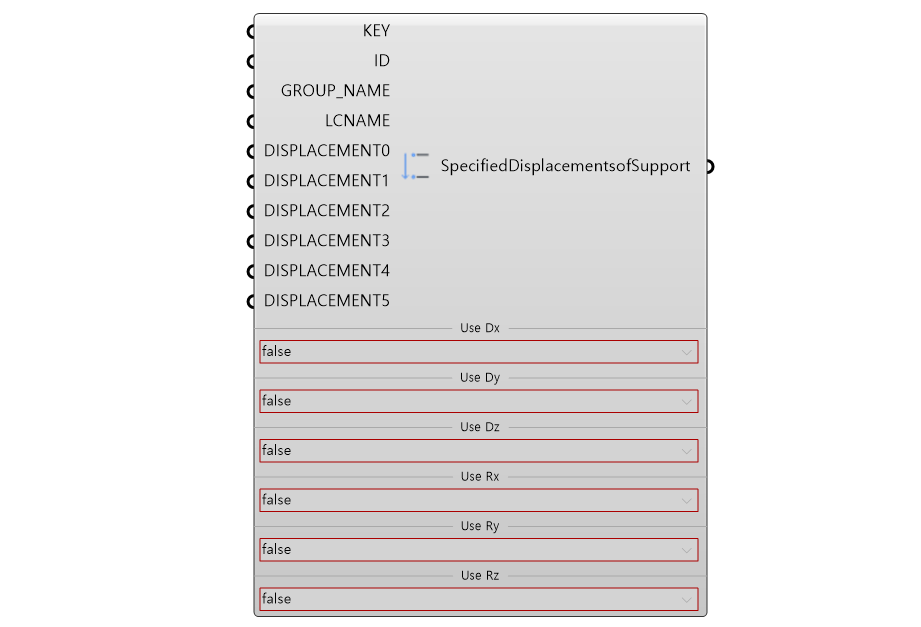

3. Component Image


4. Input/Output Value



  • Input Data
Index Name Description Type Default

Previous
Component

1 Key Node No. Integer - -
2 ID Serial Number Integer - -
3 GROUP_NAME Load Group Name String - -
4 LCNAME Load Case Name String - -
5 DISPLACEMENT 0,1,2,3,4,5 Displacements Value
(Local Direction)
Dx, Dy, Dz, Rx, Ry, Rz
Real - -
6 Use Dx,Dy,Dz,Rx,Ry,Rz Usage Flag Select false -

  • Output Data
Index Command Description Type Method

Next
Component

1 SDSP Assign Specified Displacements of Support Json PUT/DELETE -



5. Reference API Manual Link

Specified Displacements of Support
