1. Description
This component operates the Nodal Masses function in Civil NX.
Enter lumped mass data (Lumped Translation Mass/Rotational Mass Moment of Inertia) for nodes, or modify or delete previously entered nodal masses.
The Nodal Masses function can be found in the Civil NX main menu,select [Load] tab > [Static Loads(Type)] group > [Nodal Masses]
2. Grasshopper Path
[Midas] > [Static Loads] > [Nodal Masses]

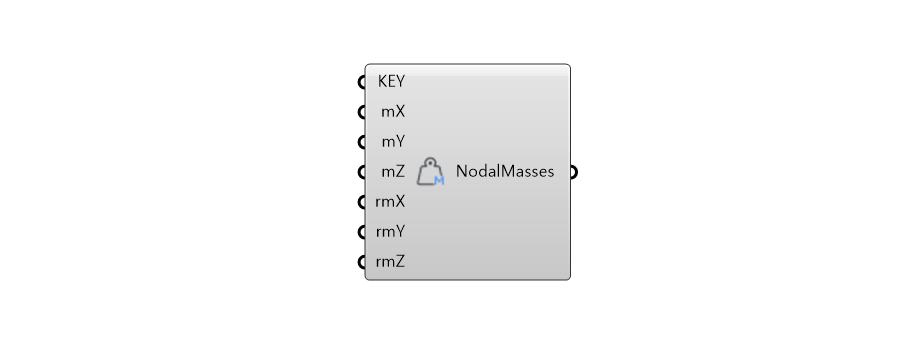

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | Key | Element No. | Integer | - | - |
| 2 | mX,mY,mZ | Translational Lumped Mass in GCS | Real | - | - |
| 3 | rmX,rmY,rmZ | Rotational Mass Moment of Inertia about GCS | Real | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | NMAS | Create Nodal Masses | Json | PUT/DELETE | - |
5. Reference API Manual Link
