1. Description
This component operates the Solid Type of Create Elements function in Civil NX.
Create elements.
The Solid Type of Create Elements funtion can be found in the Civil NX main menu,select [Node/Element] tab > [General] group > [Create] menu > Create Element
2. Grasshopper Path
[Midas] > [Node/Element] > [Solid]

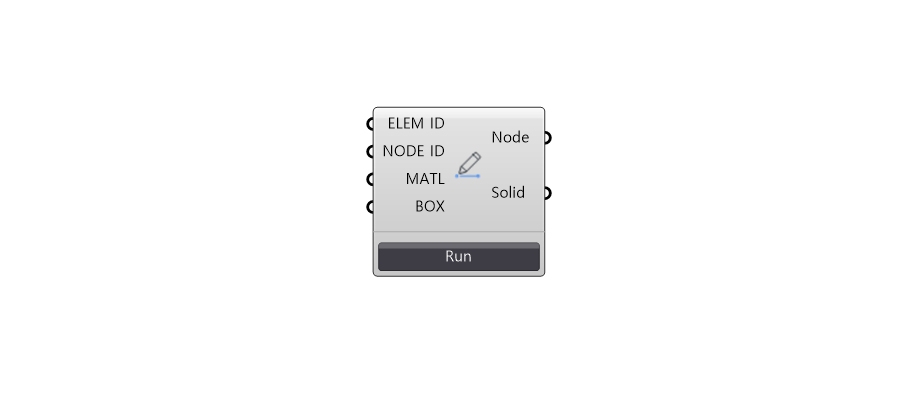

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | ELEM ID | Element ID (If empty, the number will be entered automatically) |
Integer | - | - |
| 2 | NODE ID | Node ID (If empty, the number will be entered automatically) |
Object | - | - |
| 3 | MATL | Material ID | Integer | 1 | - |
| 4 | BOX | BOX Object | Object | - | Box Object (by Rhino) |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | NODE | Create Solid NODE | Json | POST DELETE |
- |
| 2 | ELEM | Create Solid Element | - |
5. Reference API Manual Link
