1. Description
This component operates the Concrete type material among Material Properies function in Civil NX.
Enter the isotropic and orthotropic material properties. The user should enter the orthotropic material in User Defined Material.
The Concrete type material among Material Properies can be found in the Civil NX main menu,select [Properties] tab > [Material Properties] group > [Material Properties] menu > Material
2. Grasshopper Path
[Midas] > [Properties] > [Concrete Material]

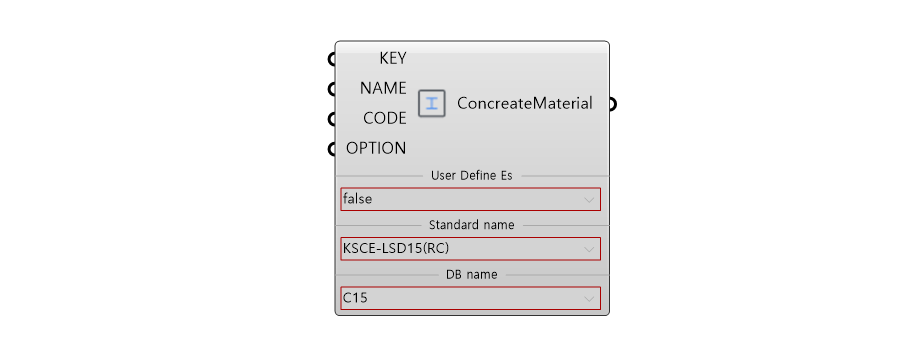

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Material ID | Integer | 1 | - |
| 2 | NAME | Name | String | - | - |
| 3 | CODE |
Code name |
String | - | - |
| 4 | OPTION | Additional Option | Object | - | Material Additional Option |
| 5 | User Define Es | User Define Es | Select | false | - |
| 6 | Standard name | Standard name | Select | KSCE-LSD15(RC) | - |
| 7 | DB name | DB name | Select | C15 | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MATL | Create Concrete Material Property | Json | Put/Delete | - |
5. Reference API Manual Link
