1. Description
This component operates the Steel type material among Material Properies function in Civil NX.
Enter the isotropic and orthotropic material properties. The user should enter the orthotropic material in User Defined Material.
The Steel type material among Material Properies can be found in the Civil NX main menu,select [Properties] tab > [Material Properties] group > [Material Properties] menu > Material
2. Grasshopper Path
[Midas] > [Properties] > [Steel Material]

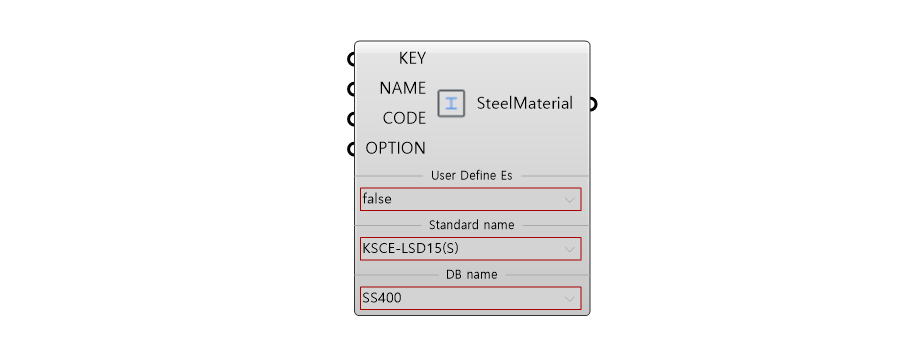

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Material ID | Integer | 1 | - |
| 2 | NAME | Name | String | - | - |
| 3 | CODE |
Code name |
String | - | - |
| 4 | OPTION | Additional Option | Object | - | Material Additional Option |
| 5 | User Define Es | User Define Es | Select | false | - |
| 6 | Standard name | Standard name | Select | KSCE-LSD15(S) | - |
| 7 | DB name | DB name | Select | SS400 | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MATL | Create Steel Material Property | Json | Put/Delete | - |
