1. Description
This component operates the Loads to Masses function in Civil NX.
Convert the values of the vertical components of the entered loads (loads acting in GCS (-)Z-direction) to masses and enter them as lumped mass data.
The Loads to Masses funtion can be found in the Civil NX main menu,select [Load] tab > [Static Loads(Type)] group > [Load to Masses]
2. Grasshopper Path
[Midas] > [Static Loads] > [Loads to Masses]

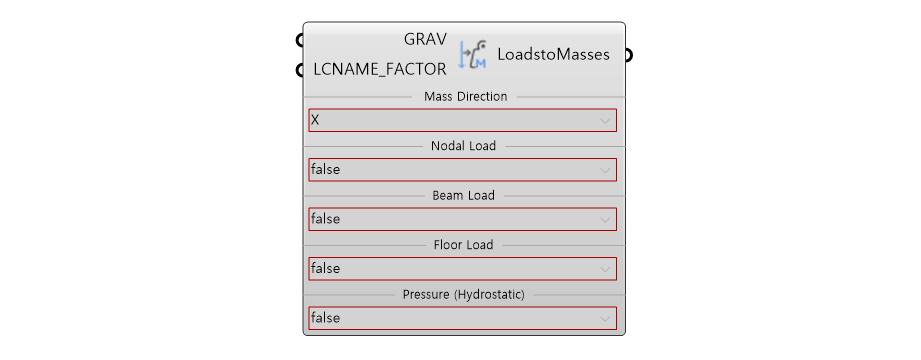

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | GRAV | Gravity | Real | 0 | - |
| 2 | LCNAME_FACTOR | Load Case Name & Scale Factor | Array [String,Real] |
- | - |
| 3 | Mass Direction | Mass Direction | Select | X | - |
| 4 | Nodal Load | Convert for Nodal Load | Select | false | - |
| 5 | Beam Load | Convert for Beam Load | Select | false | - |
| 6 | Floor Load | Convert for Floor Load | Select | false | - |
| 7 | Pressure (Hydrostatic) | Convert for Pressure Load | Select | false | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | LTOM | Create Loads to Masses | Json | PUT/DELETE | - |
5. Reference API Manual Link
