1. Description
This component operates the Define Floor Load Type function in Civil NX.
Define the floor load cases and the corresponding floor loads.
The Define Floor Load Type funtion can be found in the Civil NX main menu,select [Load] tab > [Static Loads(Type)] group > [Pressure Load] group > [Assign Floor Loads] menu > [Define Floor Loads]
2. Grasshopper Path
[Midas] > [Static Loads] > [Define Floor Load Type]

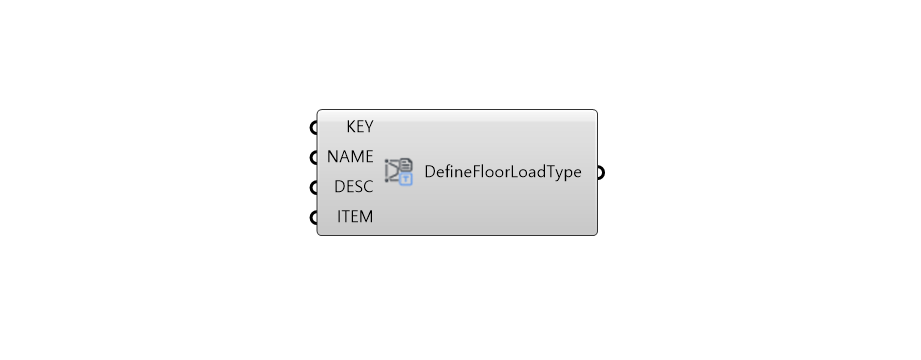

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Floor Load Type ID | Integer | - | - |
| 2 | NAME | Floor Load Type Name | String | - | - |
| 3 | DESC | Description | String | - | - |
| 4 | ITEM | Floor Load Item | Object | - | Floor Load Item |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | FBLD | Define Floor Load Type | Json | PUT/DELETE | - |
5. Reference API Manual Link
