1. Description
This component operates the Section Properties function in Civil NX.
Enter section properties for line elements (Truss, Tension-only, Compression-only, Cable, Gap, Hook, Beam Element).
The Section Properties function can be found in the Civil NX main menu,select [Properties] tab > [Section Properties] group > [Section Properties] menu >Section
2. Grasshopper Path
[Midas] > [Properties] > [Section]

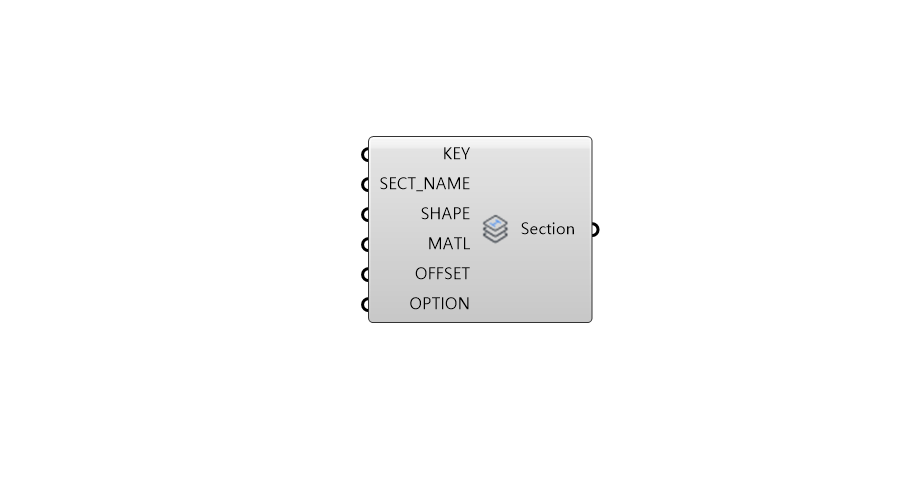

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Section ID | Integer | 1 | - |
| 2 | SECT_NAME | Section Name | String | - | - |
| 3 | SHAPE | Shape | Object | - |
Shape DB Shape User Shape SRC Tapered Shape Tapered Shape PSC1,2 Cell PSC Shape 1,2 Cell Composite Steel Shape Type 1,2 |
| 4 | MATL | Material (SRC,Compoite Type Only) |
Object | - | Composite Material User |
| 5 | OFFSET | Change Offset | Object | - | Change Offset |
| 6 | OPTION |
Additional Option |
Object | - | Additional Option |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | SECT | Create Section Properties | Json | Put/Delete | - |
5. Reference API Manual Link
