1. Description
This component converts the PSC Shape - 1,2 Cell of Civil NX into data for the Shape of the Section component.
The PSC Shape - 1,2 Cell in the Section Propeties function can be found in the Civil NX main menu,select [Properties] tab > [Section Properties] group > [Section Properties] menu > Section > PSC
2. Grasshopper Path
[Midas] > [Properties] > [ PSC Shape - 1,2 Cell ]

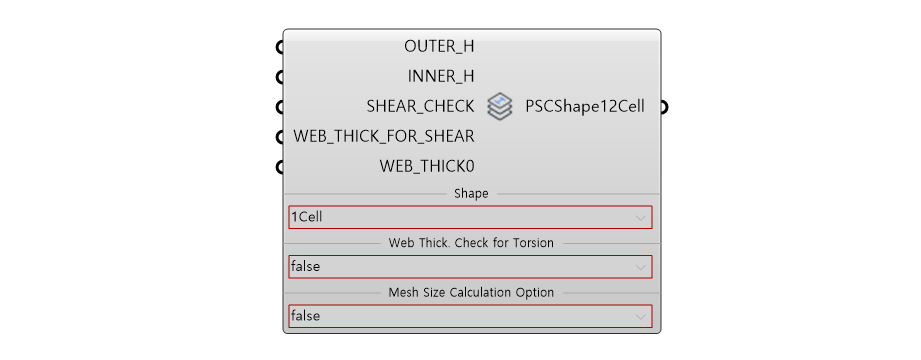

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | OUTER_H | Outer Dimension | Object | - | Outer-Dimension of PSC Shape |
| 2 | INNER_H | Inner Dimension | Object | - | Inner-Dimension of PSC Shape |
| 3 | SHEAR_CHECK | Auto Shear Check Option | Object | - | Shear Check of PSC Shape |
| 4 |
WEB_THICK_ FOR_SHEAR |
Web Thick for Shear Option | Object | - | Web Thick. for Shear of PSC Shape |
| 5 | WEB_THICK0 | Web Thick. Value for Torsion | Real | 0 | - |
| 6 | SHAPE | Shape | Select | 1Cell | - |
| 7 | Web Thick. Check for Torsion | Web Thick. Check for Torsion Option | Select | false | - |
| 8 | Mesh Size Calculation Option | Mesh Size Calculation Option | Select | false | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | SECT | Create PSC-1,2Cell Shape Data | Object | - | Section |
5. Reference API Manual Link
